York Predator 10 Ton Heat Pump Split System | PC120C00A2TAB6 + NL120C00C2BAA4 | 208/230V 3PH R410A

York Predator 10 Ton Heat Pump Split System | PC120C00A2TAB6 + NL120C00C2BAA4 | 208/230V 3PH R410A

$14,500.00
$16,000.00 $14,500.00
Sale Sold out
Shipping calculated at checkout.
[COUNT] shoppers are looking at this right now
Condition: New

York Predator 10 Ton Heat Pump Split System

PC120C00A2TAB6 Condenser + NL120C00C2BAA4 Air Handler

Product Overview

The York Predator® 10 Ton Heat Pump Split System combines the PC120C00A2TAB6 outdoor condensing unit with the NL120C00C2BAA4 commercial air handler to deliver dependable year-round heating and cooling performance for commercial buildings, retail spaces, warehouses, schools, churches, and office facilities.

Designed for R-410A refrigerant applications, this matched system provides efficient operation, reliable scroll compressor technology, and high airflow performance for medium-sized commercial HVAC installations.

Equipment Included

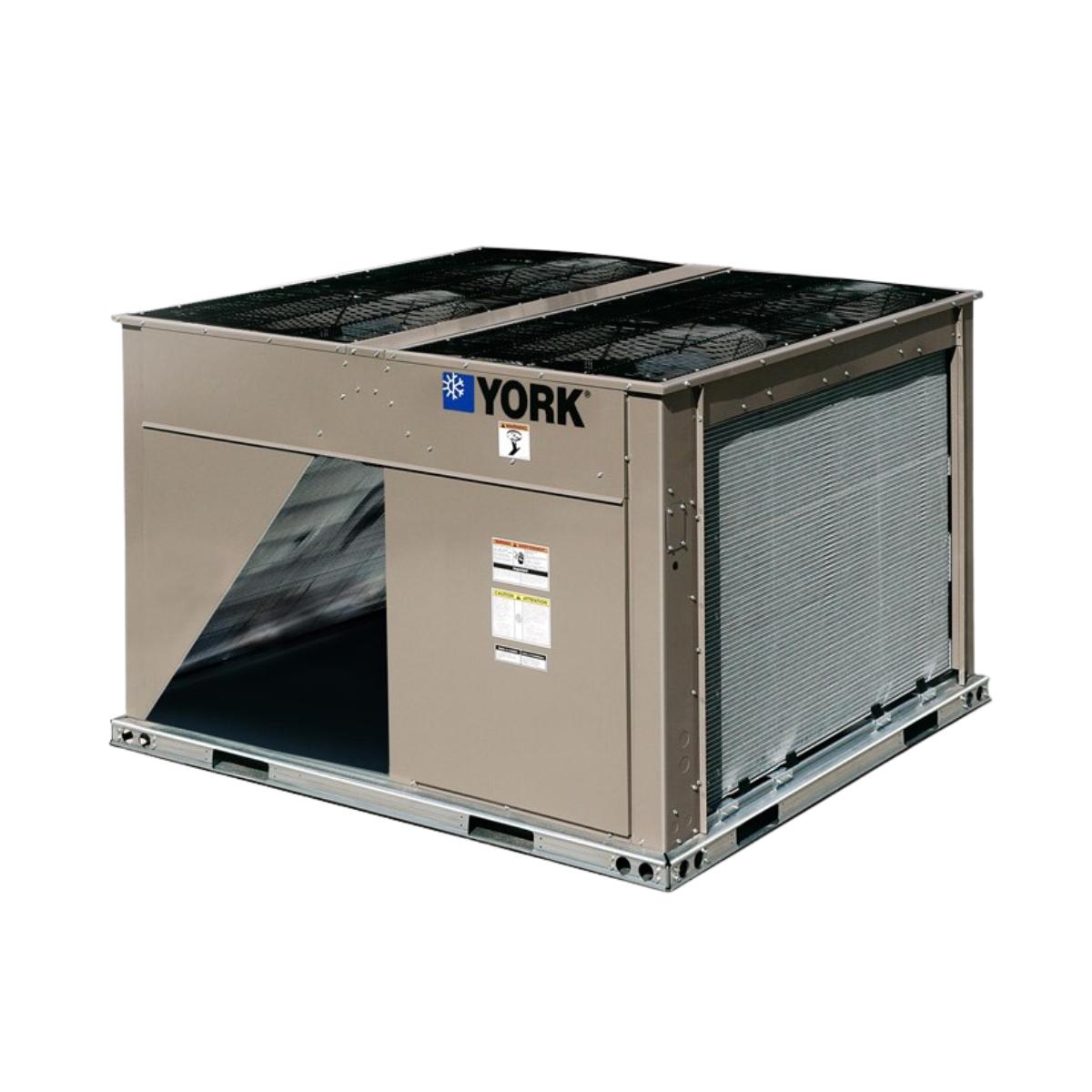

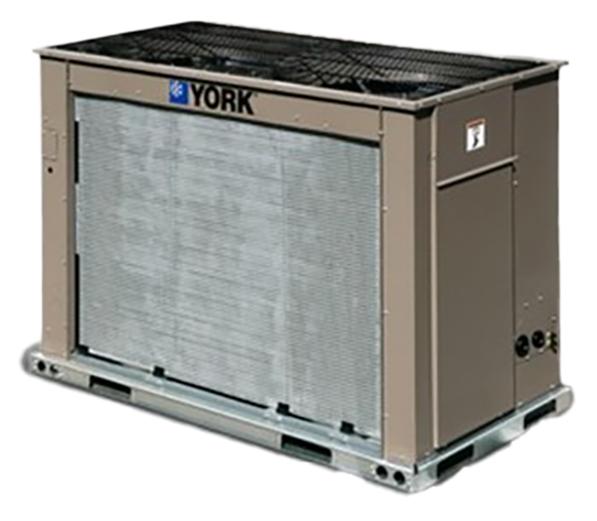

  • York PC120C00A2TAB6 Heat Pump Condensing Unit
  • York NL120C00C2BAA4 Air Handler
  • Factory-installed controls
  • R-410A compatible system

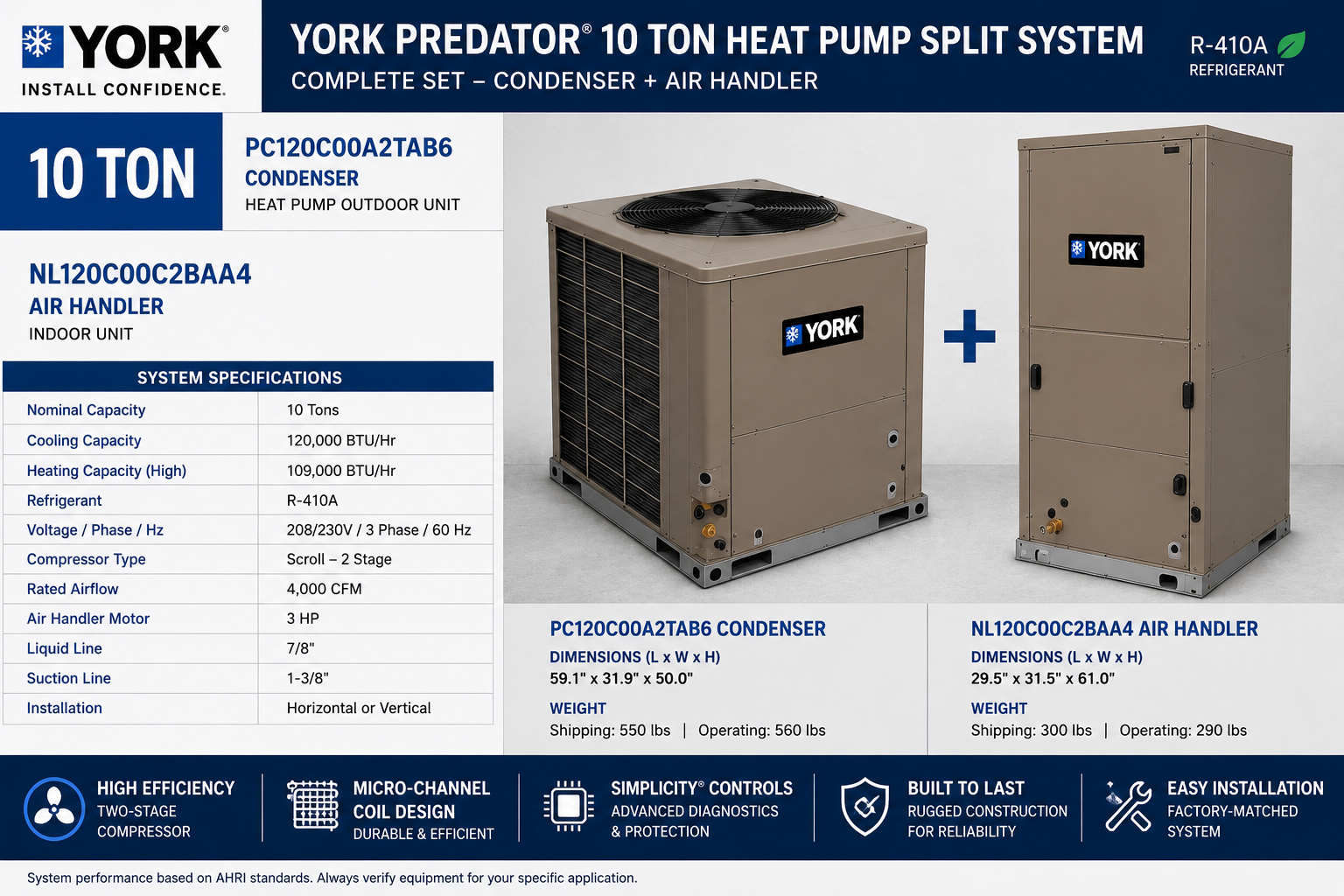

System Specifications

Specification Value
Capacity 10 Tons
Cooling Capacity 120,000 BTU/Hr
Refrigerant R-410A
Voltage 208/230V
Phase 3 Phase
Frequency 60 Hz
Compressor Type Scroll Compressor
Capacity Control 2 Stage
Rated Airflow 4,000 CFM
Air Handler Airflow Range 3,000 – 5,000 CFM
Liquid Line 7/8"
Suction Line 1-3/8"
Air Handler Motor 3 HP
Installation Horizontal or Vertical

Performance Ratings

  • Cooling Capacity: 124 MBH
  • EER: 11.0
  • IEER: 11.4
  • Heating Capacity: 109 MBH High Ambient
  • Rated Airflow: 4,000 CFM

Ideal Applications

  • Commercial offices
  • Retail stores
  • Medical facilities
  • Churches
  • Educational buildings
  • Warehouse office areas
