Nordyne / Mammoth S5BP-120C Split System Air Conditioner 10-Ton

The S5BP Series of air conditioners delivers exceptional performance, forming a high-quality split system cooling solution when combined with our air handlers. These units are ideally sized for either slab or rooftop mounting in light commercial applications.

Key Features:

• Quality Compressor: Equipped with a state-of-the-art scroll compressor for reliable single-stage operation.
• Hi/Low Pressure Switches: Ensure extended compressor life with auto-reset functionality.
• Durable, Attractive Cabinet: Constructed from galvanized steel with a polyester urethane finish, boasting a 950-hour salt spray finish that resists corrosion 50% better than comparable units.
• Copper Tube / Aluminum Fin Coils: Indoor and outdoor coils are optimized for heat transfer, size, cost, durability, and reliability.
• Permanently Lubricated Motor: Features a heavy-duty PSC motor for long-lasting reliability and quiet operation, requiring no maintenance and fully protected from adverse weather conditions.
• Full Service Valves: Easily accessible brass valves simplify refrigeration system servicing.
• Plastic Mesh Hail Guard: Rust-free guard protects the unit's coil from damage.
• Removable Top Grille Assembly: Allows for easy fan motor servicing.
• Raised Base: Sturdy base elevates the coil, protecting it and facilitating proper water drainage away from the unit.
• Five Minute Restart Time Delay: Prevents immediate unit restart after shutdown, reducing the risk of compressor failure.
• Easy Compressor and Control Access: Side access panels provide convenient servicing for contractors, ensuring accessibility to all controls and the compressor.
• Warranty: Covered by a 1-year limited warranty on all parts and 5-year parts coverage on the compressor, offering significant benefits to end-users.
• 90 VA Transformer: Includes a 4 Amp circuit breaker for low-voltage circuit protection.
• Liquid Line Filter Drier: Field-installable for added convenience.
• Suction Accumulator and Crankcase Heater: Provides protection against liquid floodback and future compressor failures.

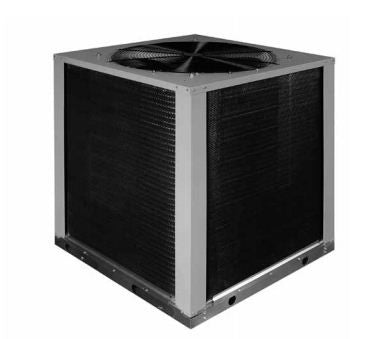

Note: The photo shown is a stock photo and may not depict the actual item.
