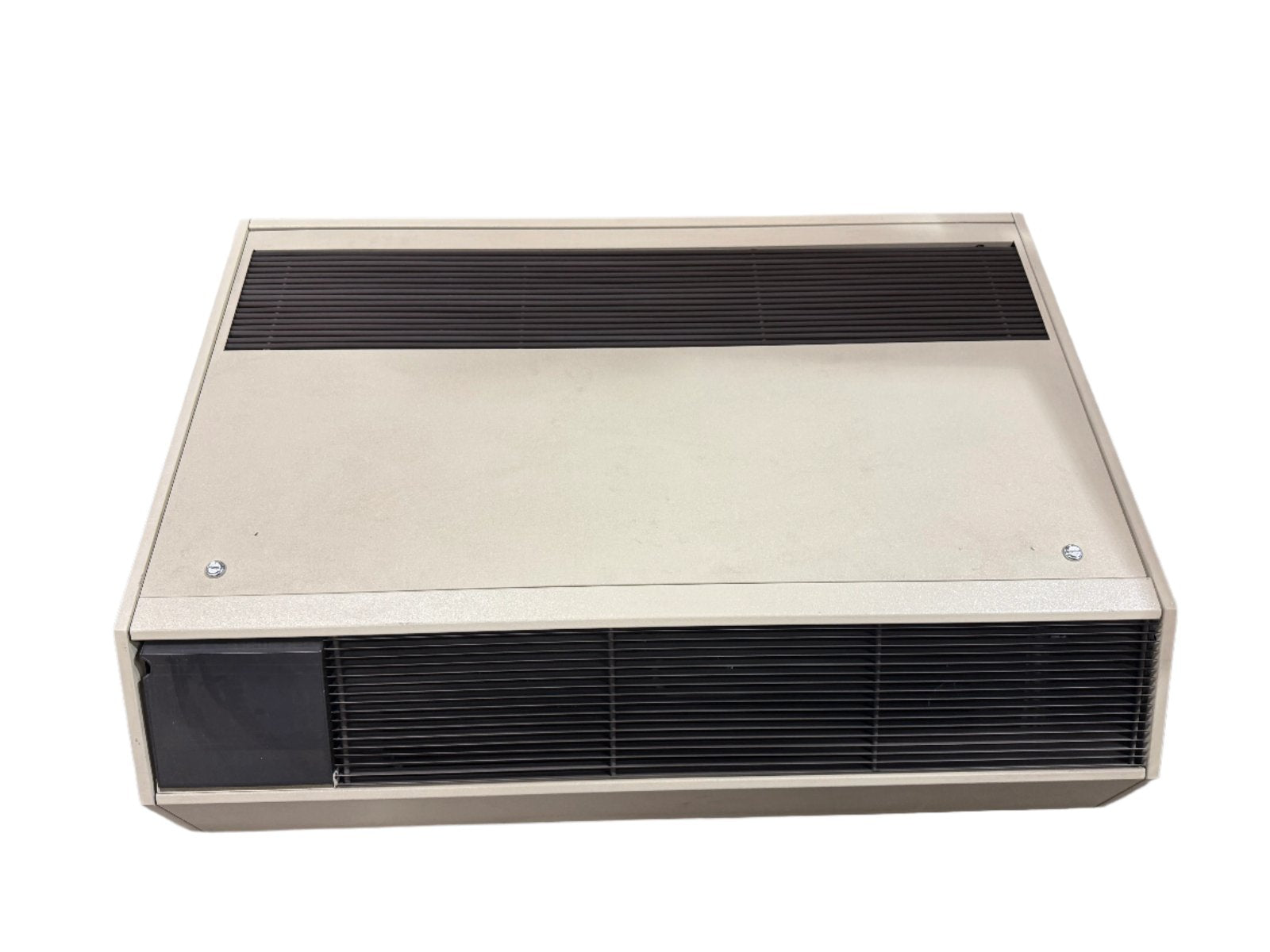

Liebert DME027A-PHO 2.25 Ton Air Handler Unit

The Liebert DME027A-PHO is part of the Liebert DataMate series, which is a small footprint cooling system designed for 7x24 temperature and humidity control in network closets, computer rooms, and other small spaces. Here are some key details:

• Capacity: 6.65 kW (22.7 kBtuh)

• Airflow: 1230 CFM

• 30 Amps - 60 Hz - 208/230v - Single phase

• Physical Dimensions:

  • Height: 813 mm (32 in)

  • Width: 1628 mm (64 1/8 in)

  • Depth: 302 mm (11 7/8 in)

• Weight: 330 lbs (150 kg)

• Installation: Can be mounted on the floor or wall, and can be installed as a split system with air, water/glycol cooling, or as a self-contained chilled water system.

• Features:

  • Year-round temperature and humidity control with reheat

  • Air filtration

  • Low ambient operation

  • Rugged design for long-term reliability
