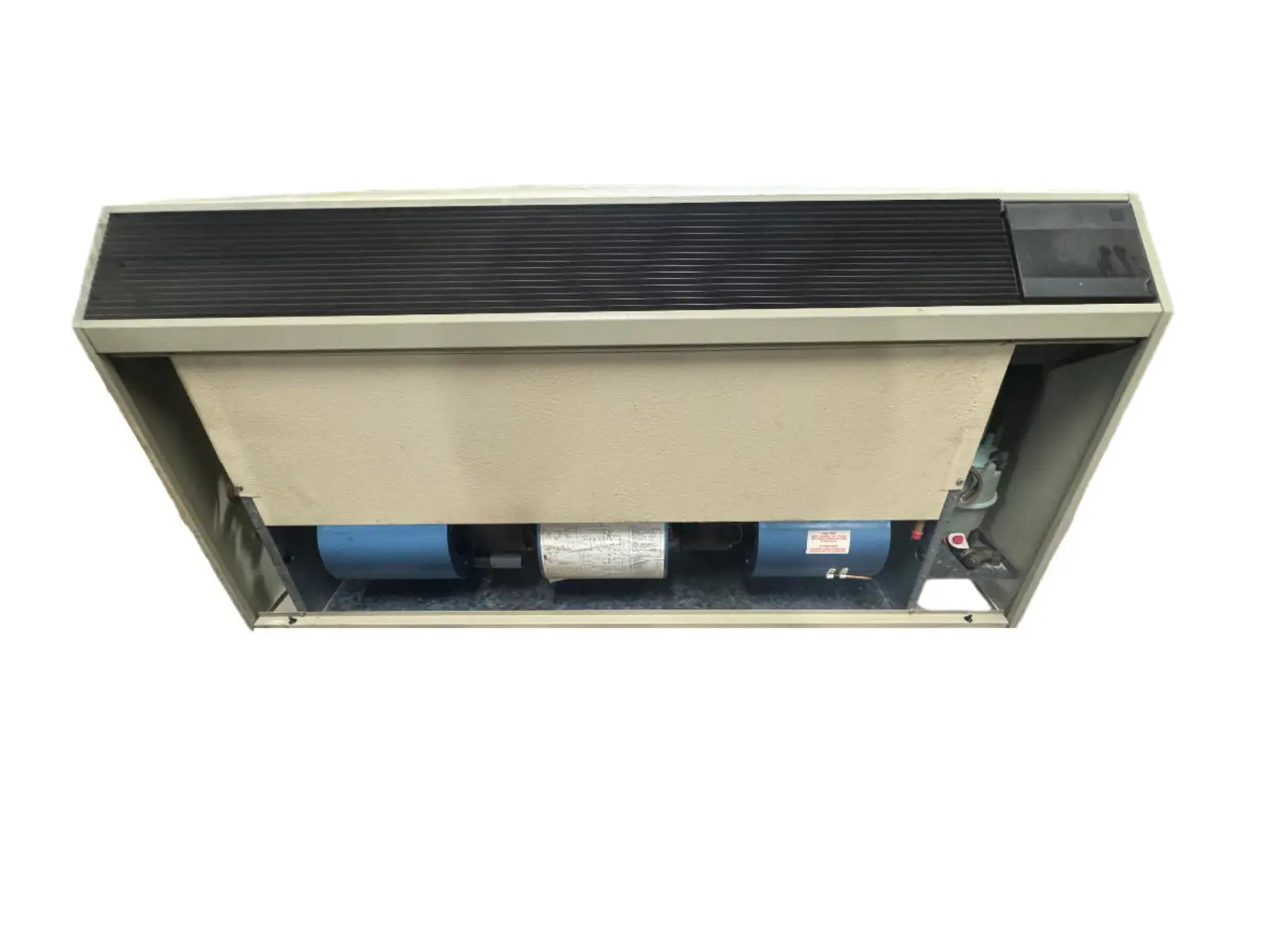

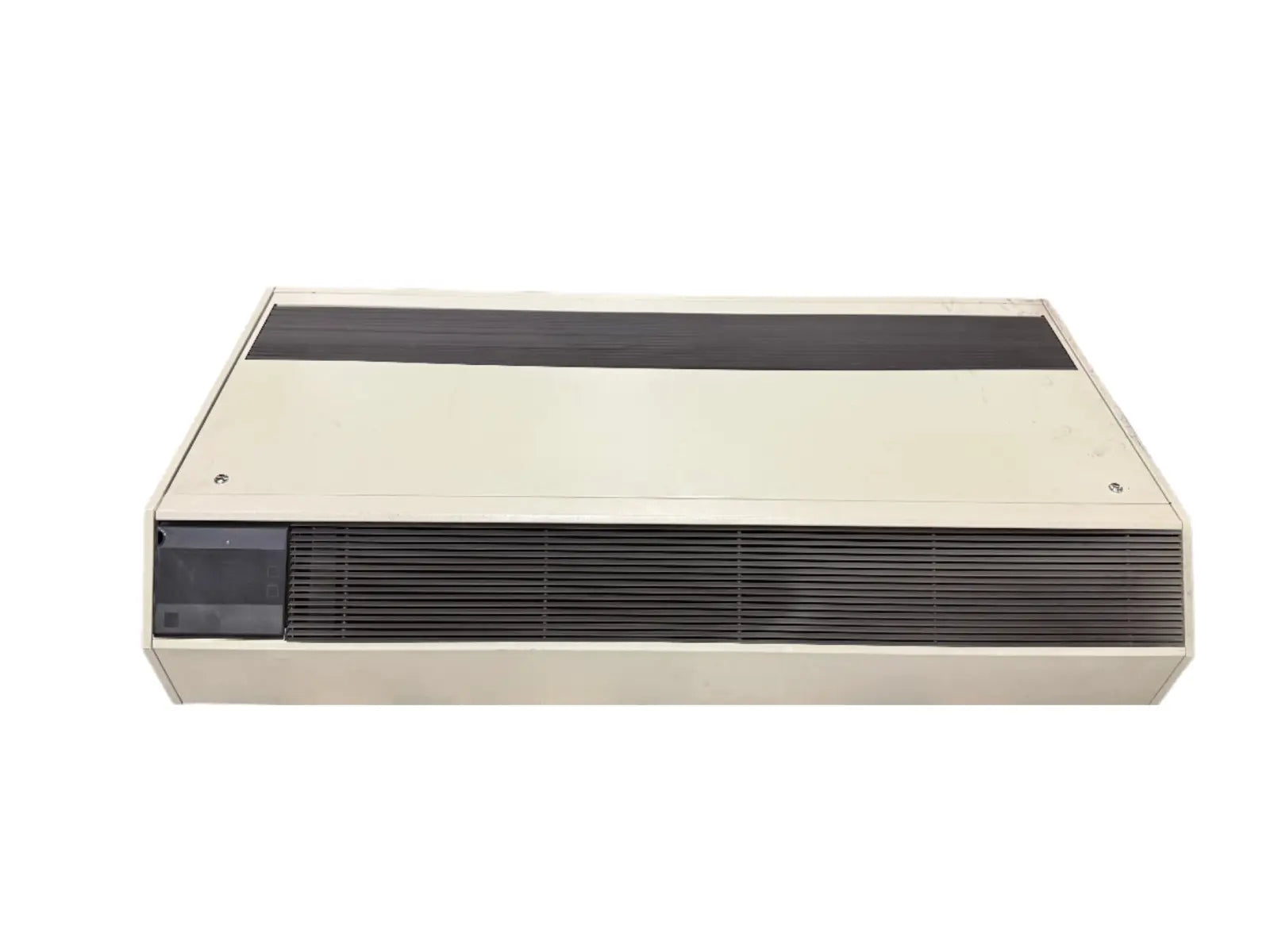

Liebert DME037A-PHO 3 Ton Air Handler Unit

The Liebert DME037A-PHO is part of the Liebert DataMate series, which is designed for 7x24 temperature and humidity control in network closets, computer rooms, and other small spaces. Here are some key details:

• Capacity: 8.9 kW (30.2 kBtuh)

• Airflow: 1230 CFM

• 30 Amps - 60 Hz - 208/230v - Single Phase

• Physical Dimensions:

  • Height: 813 mm (32 in)

  • Width: 1628 mm (64 1/8 in)

  • Depth: 302 mm (11 7/8 in)

• Weight: 365 lbs (150 kg)

• Installation: Can be mounted on the floor or wall, and can be installed as a split system with air, water/glycol cooling, or as a self-contained chilled water system.

• Features:

  • Year-round temperature and humidity control with Reheat

  • Air filtration

  • Low ambient operation

  • Rugged design for long-term reliability

R-407C Refrigerant Unit Charge: 6.5(0.18)

Product Specifications

Total Nominal Capacity kBtuh [kW]: 30.3 [8.9]

Net Sensible Capacity kBtuh [kW]: 30.3 [8.9]

Nominal Airflow [CFM]: 1320

Total Capacity: 33.5 [9.8]

Heat Rejection Medium: Air

Physical Characteristics

Weight: 365

Weight: 165

Height: 32

Height: 813

Width: 64 1/8

Width: 1628

Depth: 11 7/8

Depth: 302
