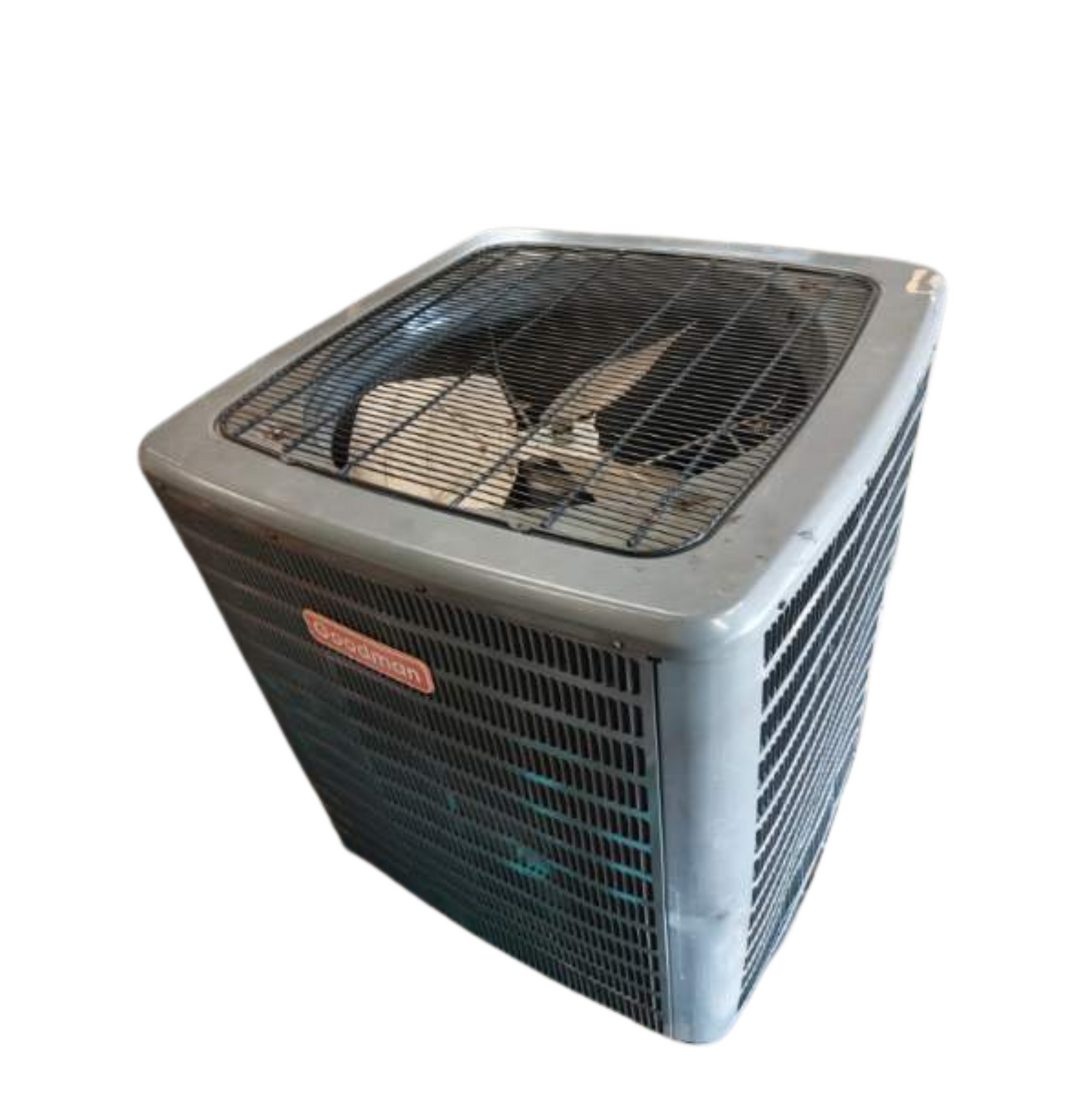

Goodman GSH101203AD 10 Ton Condensing Unit

Goodman GSH101203AD 10 Ton Condensing Unit

$1,000.00
$1,000.00
Sale Sold out
Shipping calculated at checkout.
👀 [COUNT] People are currently viewing this product.

Specifications:


- Model Number: GSH101203AD
- Serial Number: 1405268331
- Voltage Range: 208-230V (Min. 197V, Max. 253V)
- Phase: 3
- Hertz: 60
- Max. Fuse Amps or Max. Circuit Breaker: 70A
- Min. Circuit Amps: 43.2A
- Fan Motor:
  - FLA: 5.6A
  - HP: 1
- Compressor:
  - RLA: 30.1A
  - LRA: 225A
- Refrigerant Type: R-22
- Refrigerant Charge: 30 oz.
- Factory Holding Charge Cu Ft (Nitrogen/Helium): 7.45
- Max. Working Pressure:
  - Low: 150 PSIG
  - High: 300 PSIG
- AHRI Certified: Yes
- Use: Outdoor unit
