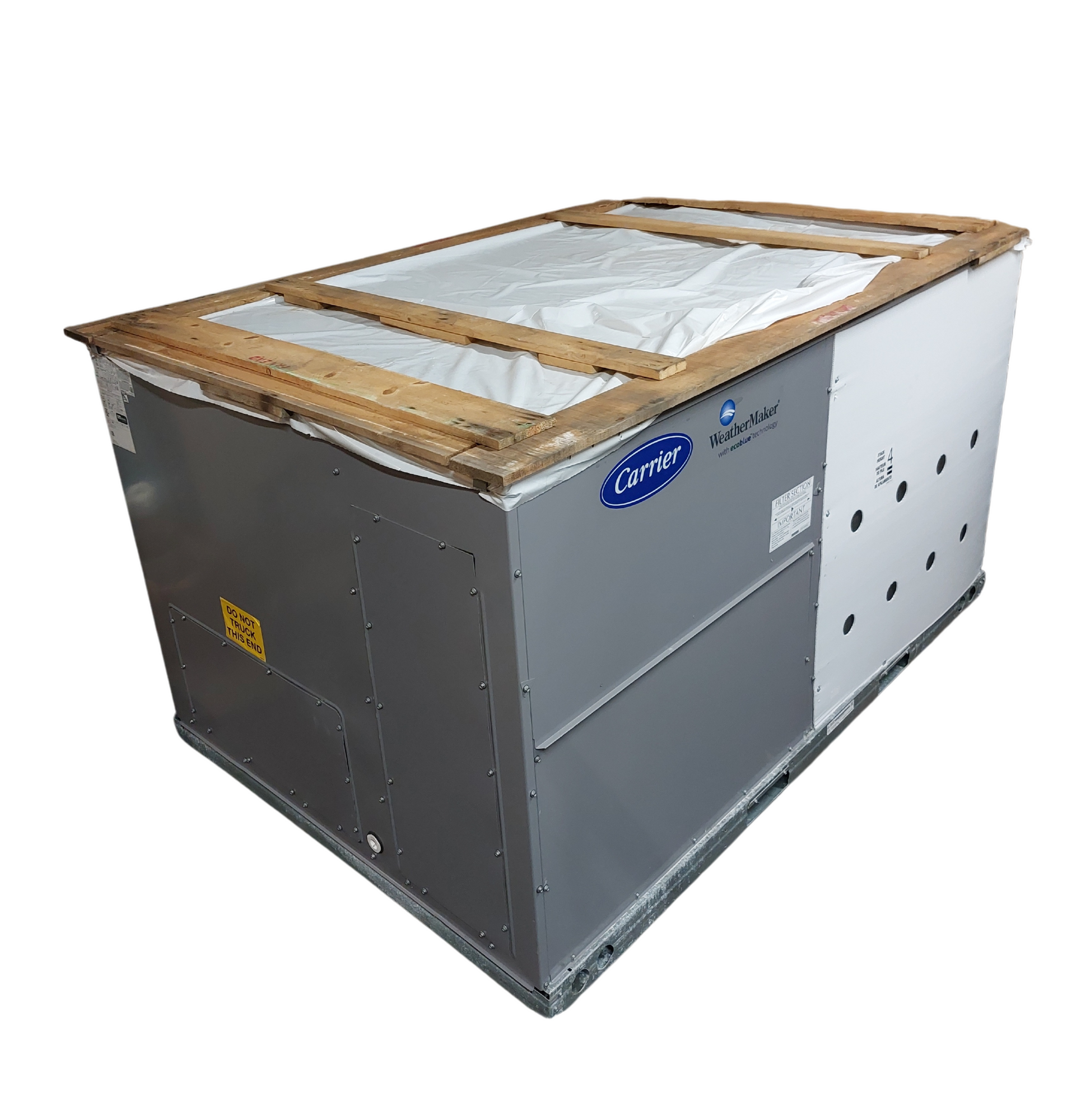

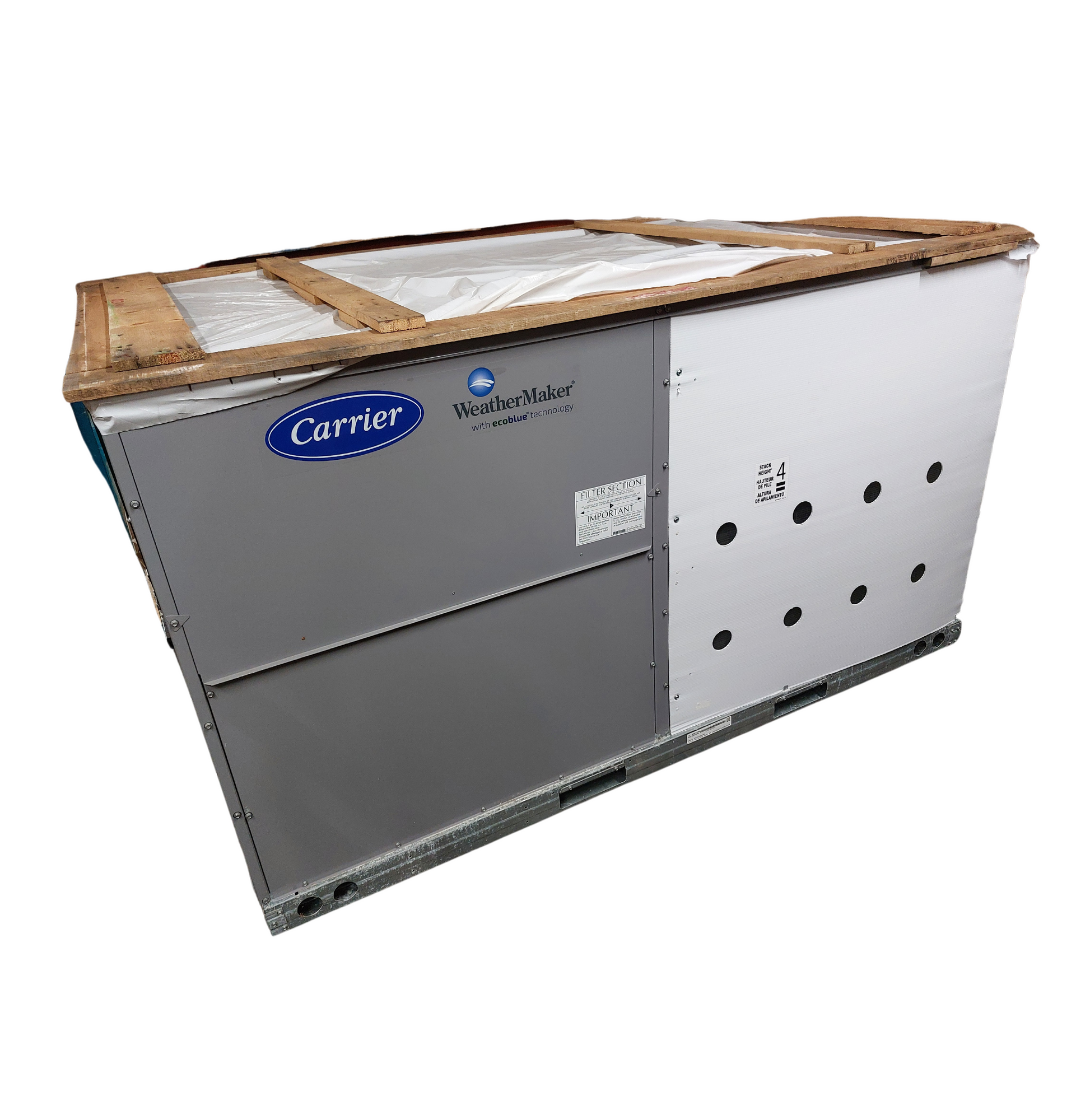

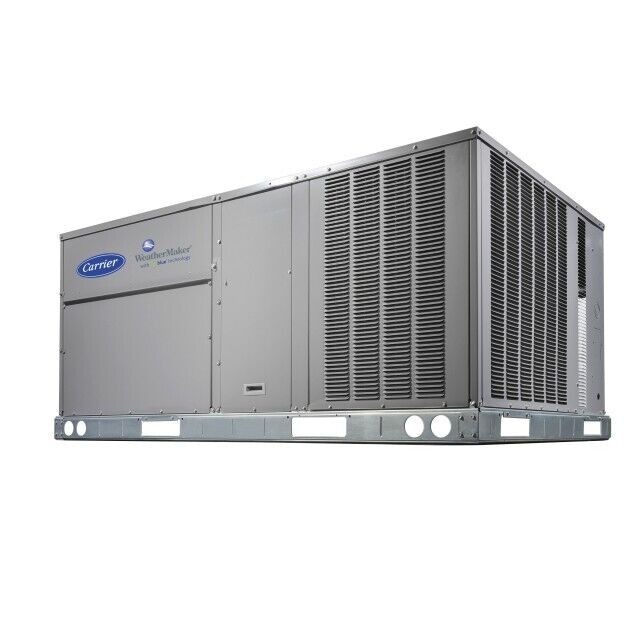

Carrier 48FCEM12A3A5-0A0A0 Weather Maker 10 Ton Packaged Rooftop Gas Heat & Electric Cool Unit
Carrier 48FCEM12A3A5-0A0A0 Weather Maker 10 Ton Packaged Rooftop Gas Heat & Electric Cool Unit
Couldn't load pickup availability
Item: 48FCEM12A3A5-0A0A0
MFR: 48FCEM12A3A5-0A0A0
The New Carrier WeatherMaker® rooftop units (RTU) with EcoBlue
Technology were designed by customers with integrated new
Technology to provide value added benefits never seen in this type of equipment before.
Description
48FCEM12A3A5-0A0A0
48 = Gas Heat Packaged Rooftop / Unit Heat Type
FC = Standard Efficiency (EcoBlue™ Technology) / Model Series - WeatherMaker®
E = Medium Heat / Heat Size
M = Single Circuit, Two Stage Cooling / Refrig. Systems Option
12 = 10 Tons / Cooling Tons
A = None / Sensor Option
3 = High Static Option/ Indoor Fan Option
A = Al/Cu - Al/Cu / Coil Options – (Outdoor - Indoor)
5 = 208-230/3/60 / Voltage
- = Factory Design Revision / Design Revision
0 = Electro-mechanical Controller / Base Unit Controls
A = None / Intake / Exhaust Option
0 = None / Service Option
A = None / Electrical Option
0 = Standard / Packaging & Seismic Compliance
| Dimensions | |
|---|---|
| Length | 59.5 Inches (in) |
| Width | 88.125 Inches (in) |
| Height | 49.375 Inches (in) |
| Weight | 878 Pounds (lbs) |
| Attributes | |
| Air Flow Direction | Convertible |
| BTU Input | 180000-224000 |
| BTU Output | 146000-181000 |
| Blower Motor HP | 5 BHP |
| Blower Motor RPM | 250-2200 |
| Blower Motor Speeds | Variable |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Brand | Carrier |
| CBU - Compressor Bearing Unit | Yes |
| CFM Cooling | 1800-5000 |
| Color | Fossil |
| Compressor Type | Scroll |
| Condenser Motor HP | 1/4 HP |
| Condenser Motor RPM | 1100 |
| Condenser Motor Speeds | 1 (Single) |
| Condenser Motor Type | Direct Drive |
| Cooling Capacity | 118000 |
| Cooling Rated Capacity (Btu/h) | 120000 |
| Country of Origin | Varies |
| Cubic Measurement | 133.2188 |
| Cycle/Hertz | 60 Hz |
| Drain Connection Quantity | 1 |
| Drain Connection Size | 3/4" |
| Drive Type | Direct |
| EER | 11 |
| Energy Star Rated | No |
| Evaporator Coil Metering Device | TXV/TEV - Thermostatic Expansion Valve |
| Fan Diameter | 22 |
| Fuel Type | Natural Gas |
| Gas Connection Size | 3/4" |
| IEER | 15 |
| Locked Rotor Amps (LRA) | 110 |
| Maximum Overcurrent Protection (MOCP) | 60 |
| OPT Code | 1P48FCEM12A3A5-0A0A0 |
| Outdoor Air Filter Size (OA) | 20" x 24" x 1 |
| Phase | Three |
| Product Family | 48FC |
| Prop 65 | Yes |
| Rated Load Amps (RLA) | 15.6 |
| Refrigerant | R-410A |
| Return Air Filter Size (RA) | (4) 20" x 20" x 2" |
| Sound Level (dBA) | 79 |
| Stage | Two |
| Thermal Efficiency | 81% |
| Tonnage | 10 |
| UL Listed | Yes |
| UOM | EA |
| Voltage | 208-230 VAC |
