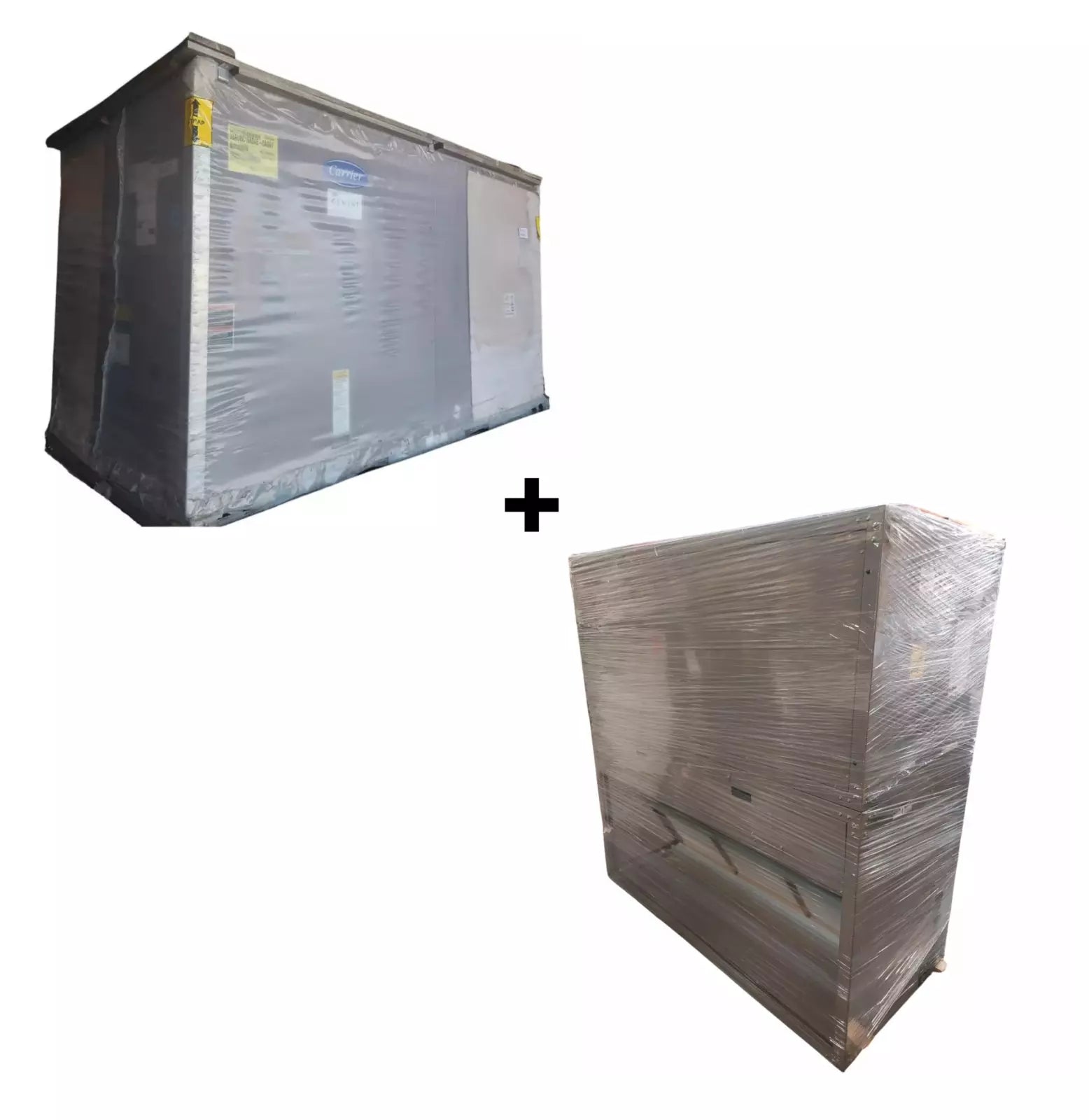

Carrier 15 Ton Condensing Unit Air Handler 15 Ton set ( Coolman / Luxaire )

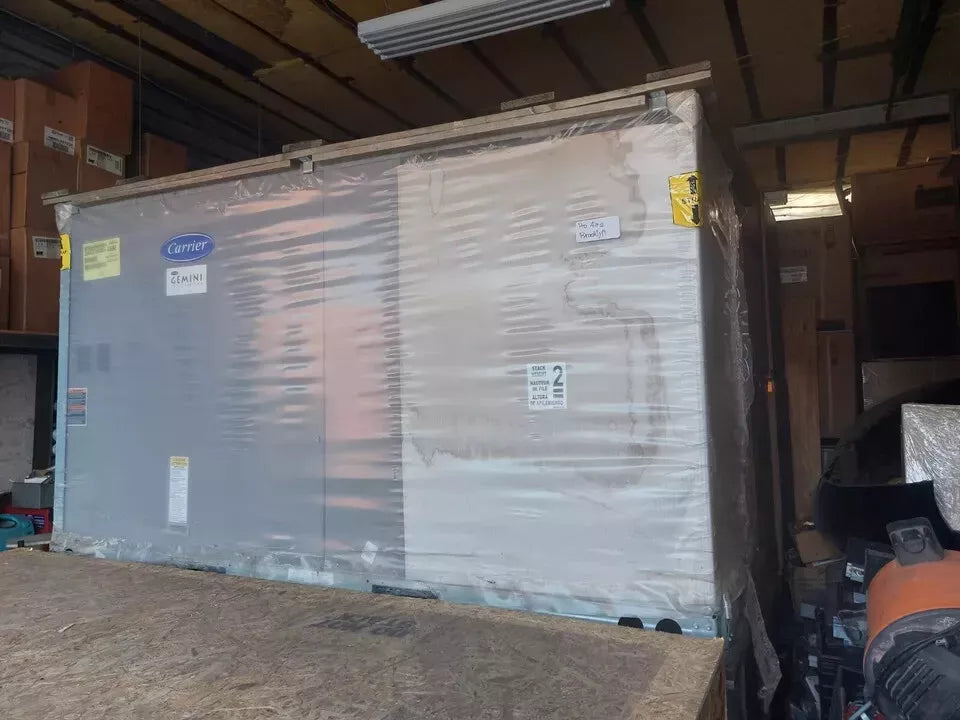

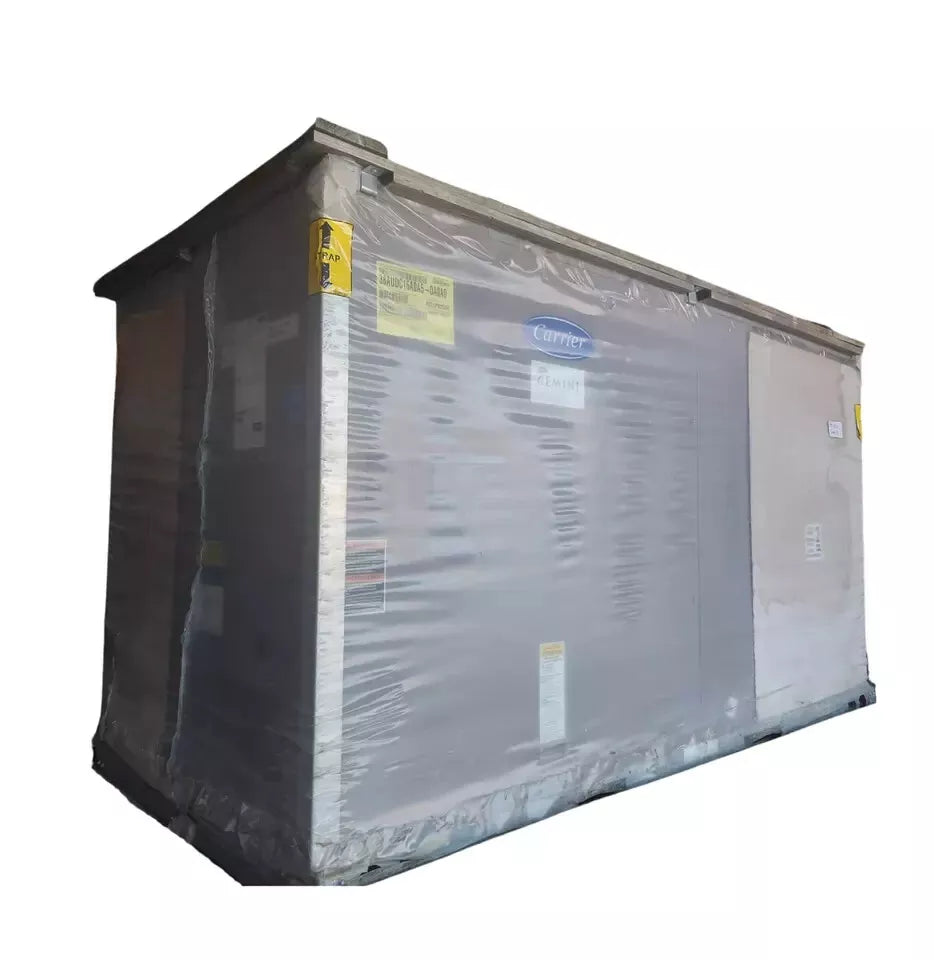

Manufacturer: Carrier Corporation

Model Number: 38AUDC16A05A0A0A0

Serial Number: 4921P42395

System Refrigerant: R-410A

Cooling Capacity: 15 tons

Voltage: 208/230V, 3-phase, 60 Hz

Compressors: 2

- Compressor 1: RLA (Rated Load Amps) 25.0, LRA (Locked Rotor Amps) 164

- Compressor 2: RLA (Rated Load Amps) 25.0, LRA (Locked Rotor Amps) 164

Fan Motor: 3

- Motor 1: 208/230V, 1.5 FLA (Full Load Amps)

- Motor 2: 208/230V, 1.5 FLA (Full Load Amps)

- Motor 3: 208/230V, 1.5 FLA (Full Load Amps)

Refrigerant Charge: 9 lbs, 4.1 kg

Test Pressure: High 650 psig (4481.5 kPa), Low 450 psig (3102.6 kPa)

Minimum Circuit Amps: 60.8

Maximum Fuse or HACR Type Breaker Amps: 80

The unit is suitable for outdoor installation and includes specific installation instructions. It is also certified by ETL and adheres to relevant industry standards.

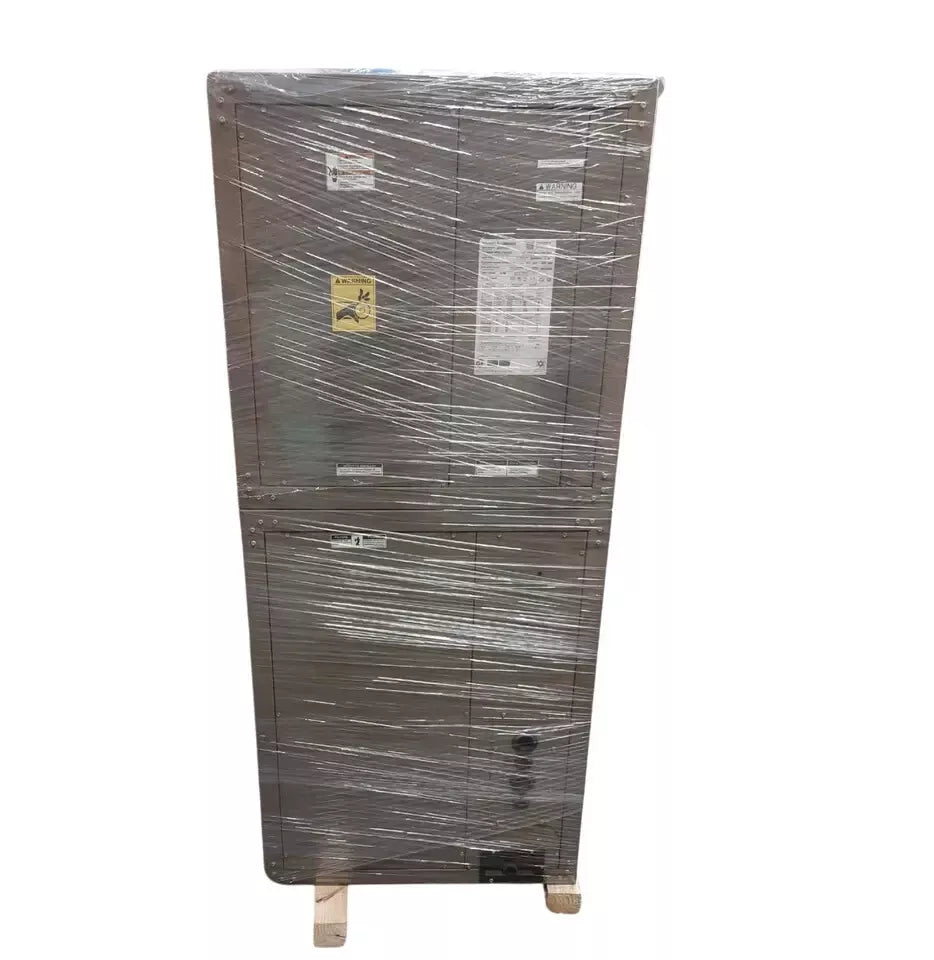

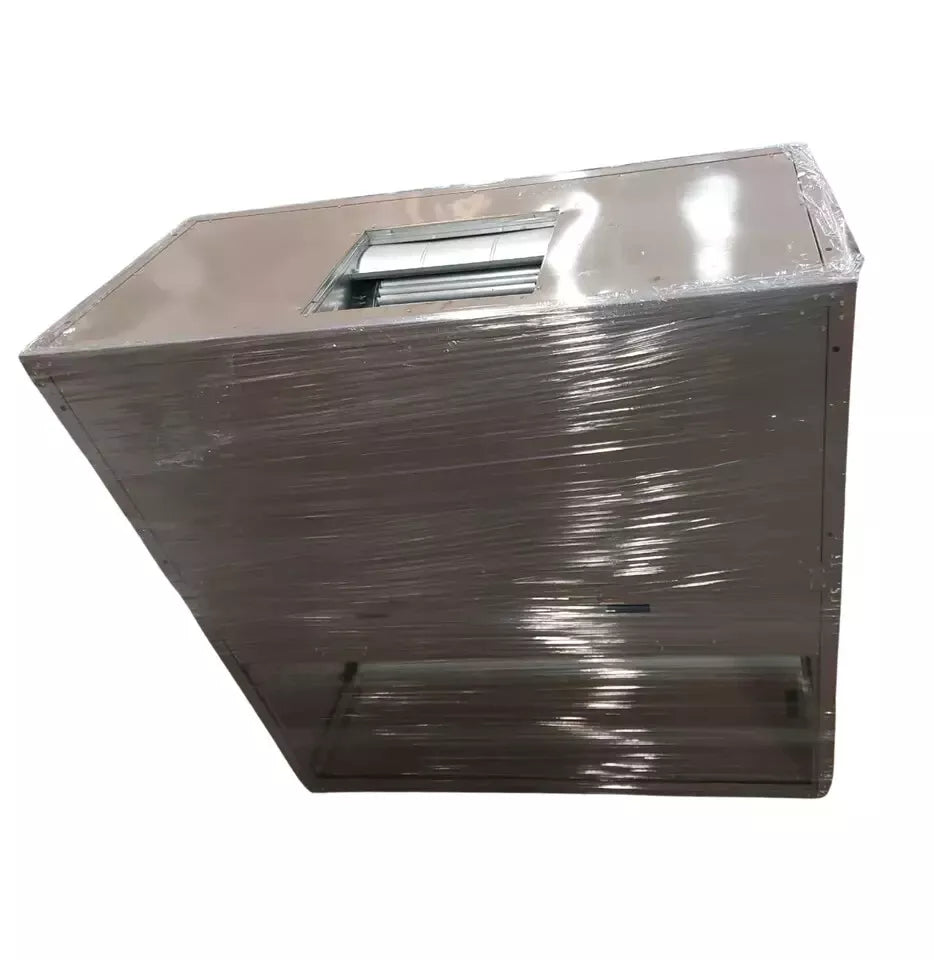

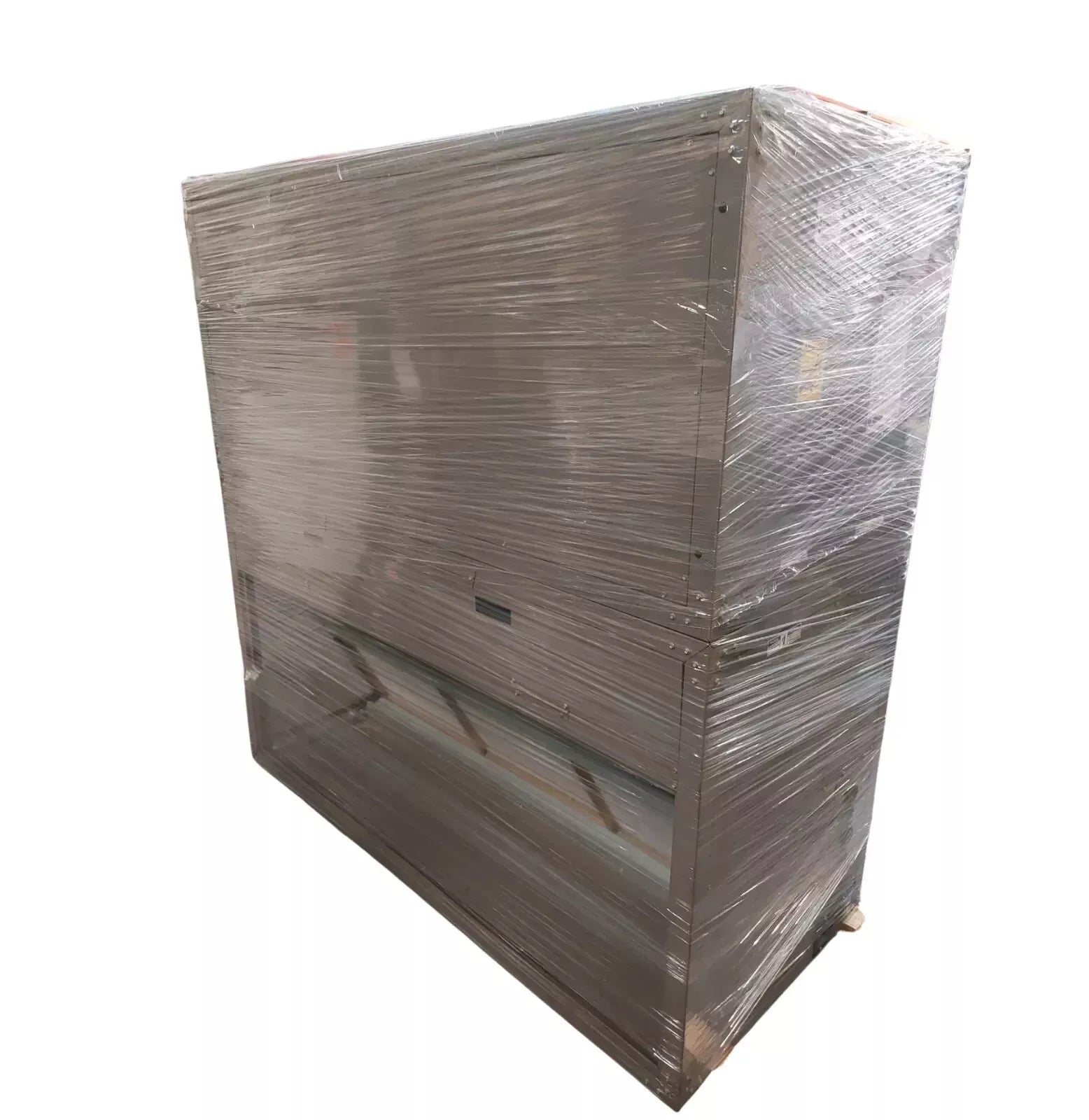

Luxaire NJ-15 Air Handling unit

Manufacturer: Coleman

Model#: NJ-15C00DSAAA2



·         Make: Luxaire

·         Model code: NJ-15

·         Weight: 796 lbs

·         Depth: 74.5 inches

·         Width: 33.0 inches

·         Height: 75.0 inches

Inherently protected condenser fan motors

Five-minute, anti-short cycle timer and minimum compressor run time

Factory-installed disconnects, convenience outlet and technical coil option

Durable build with condenser coils constructed with microchannel aluminum tubing and aluminum fins

Self-contained, high and low pressure controls

Class 2, 24-volt, thermostat control circuit

Compressor staging for capacity reduction provides more economical operation and even temperature levels within the conditioned space

Includes filter drier ready for field installation and is Smart Equipment enabled

2-pipe and 4-pipe configurations

Standard operation to 40°F; factory or field-installed low-ambient VFD control to 0°F

Scroll compressors provide both high efficiency and reliability

Crankcase heaters that will be de-energized when the compressor is operating

Solid state or internal line break compressor motor protection

Copper stub-outs are factory-mounted on the suction and liquid lines to simplify field piping connections
