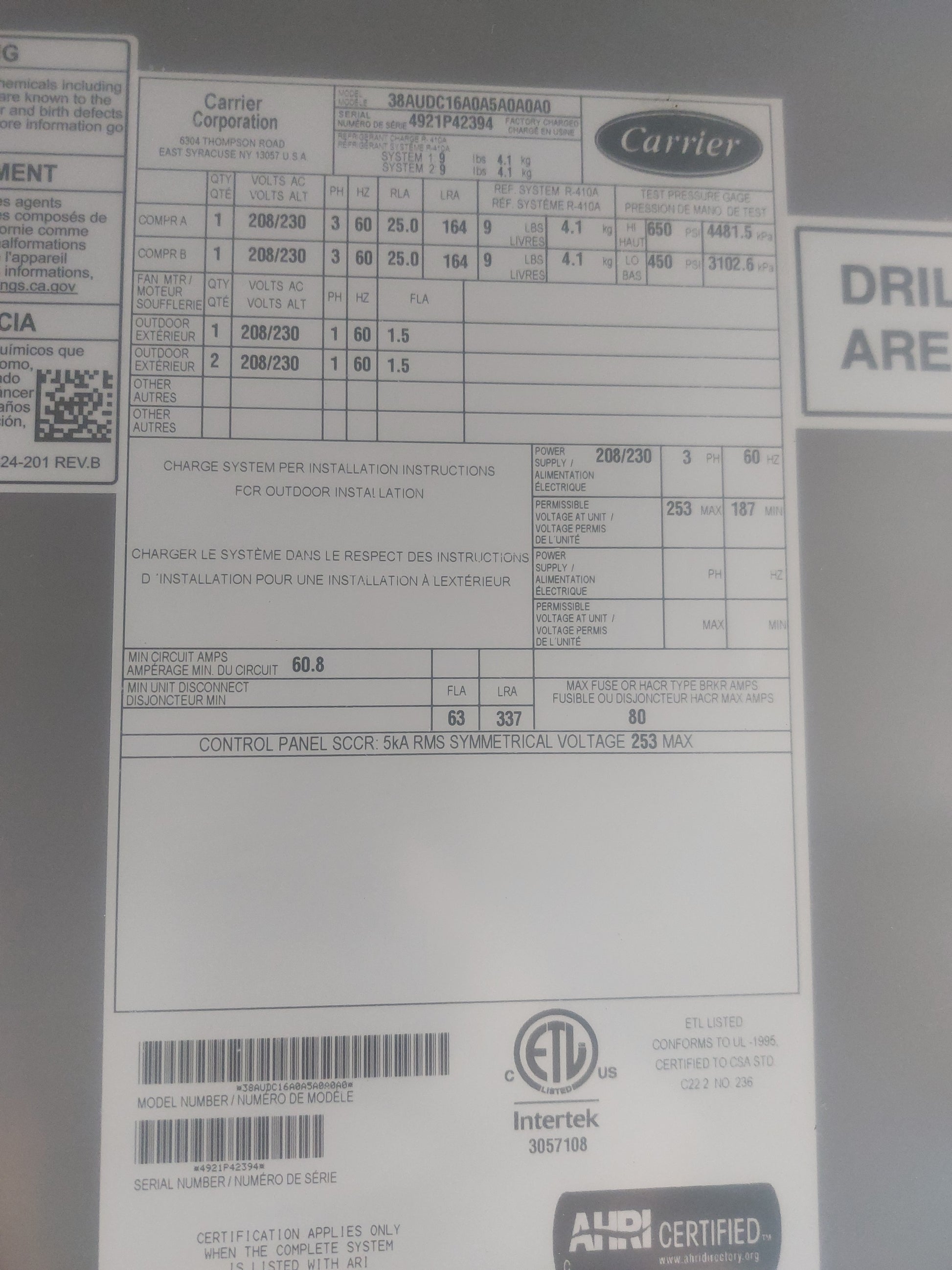

Manufacturer: Carrier Corporation
Model Number: 38AUDC16A05A0A0A0
Serial Number: 4921P42395
System Refrigerant: R-410A
Cooling Capacity: 15 tons
Voltage: 208/230V, 3-phase, 60 Hz
Compressors: 2
- Compressor 1: RLA (Rated Load Amps) 25.0, LRA (Locked Rotor Amps) 164
- Compressor 2: RLA (Rated Load Amps) 25.0, LRA (Locked Rotor Amps) 164
Fan Motor: 3
- Motor 1: 208/230V, 1.5 FLA (Full Load Amps)
- Motor 2: 208/230V, 1.5 FLA (Full Load Amps)
- Motor 3: 208/230V, 1.5 FLA (Full Load Amps)
Refrigerant Charge: 9 lbs, 4.1 kg
Test Pressure: High 650 psig (4481.5 kPa), Low 450 psig (3102.6 kPa)
Minimum Circuit Amps: 60.8
Maximum Fuse or HACR Type Breaker Amps: 80
The unit is suitable for outdoor installation and includes specific installation instructions. It is also certified by ETL and adheres to relevant industry standards.
