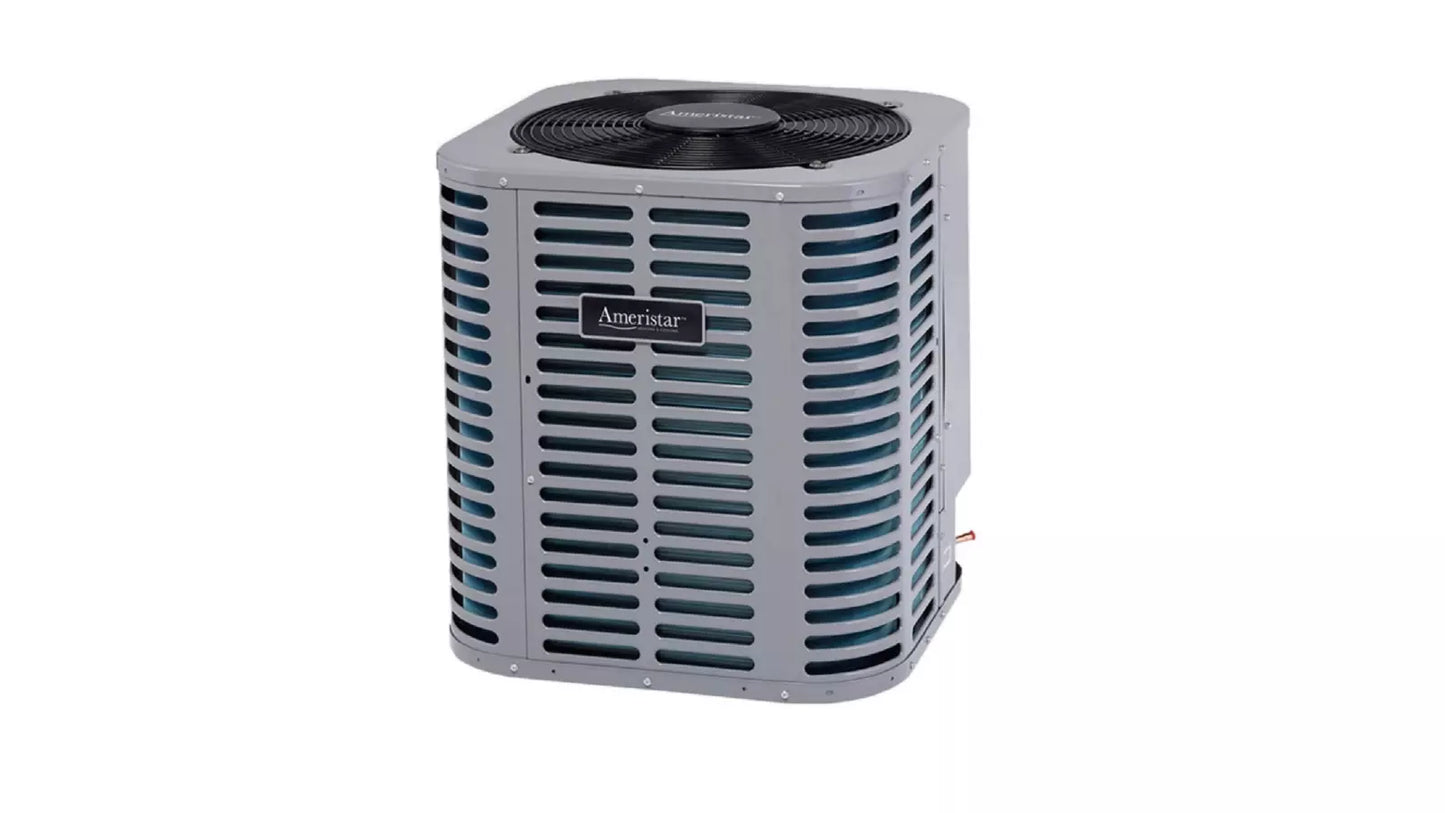

Ameristar M4HP4048 - 4 Ton - Heat Pump - 14 SEER R-410A

General Information

• Type: Outdoor Condenser
• Product Line: M4HP4
• Operating Mode: Cooling and Heating
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Compressor Stages: Single

Performance

• Capacity: 4.0 Tons
• Nominal Cooling Capacity: 48,000 BTU
• Heating BTU: 48,000
• Maximum Sound Level: 76 dB
• Nominal SEER: 14

Electrical Data

• Voltage: 208-230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 29 Amps
• Recommended Breaker Size: 50 Amps

Dimensions

• Product Height: 33 3/16 Inches
• Product Width: 28 Inches
• Product Depth: 28 Inches
• Product Weight: 213 Pounds
• Shipping Height: 34 1/2 Inches
• Shipping Width: 29 Inches
• Shipping Length: 29 Inches
• Shipping Weight: 229 Pounds

Connection Sizes

• Liquid Valve Connection Size: 3/8 Inch
• Suction Valve Connection Size: 7/8 Inch

Certifications

• ETL Listed: Yes
• AHRI Certified: Yes
