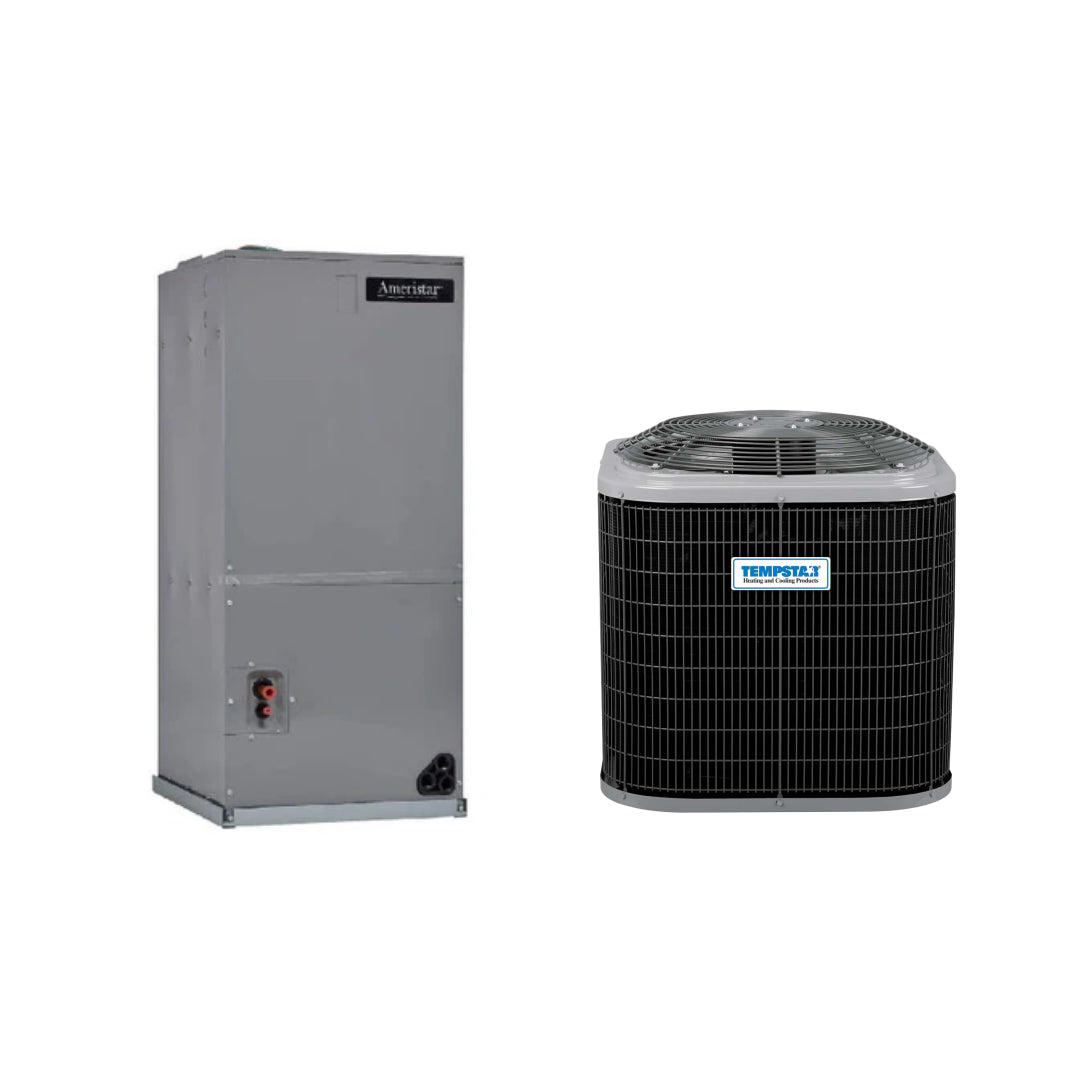

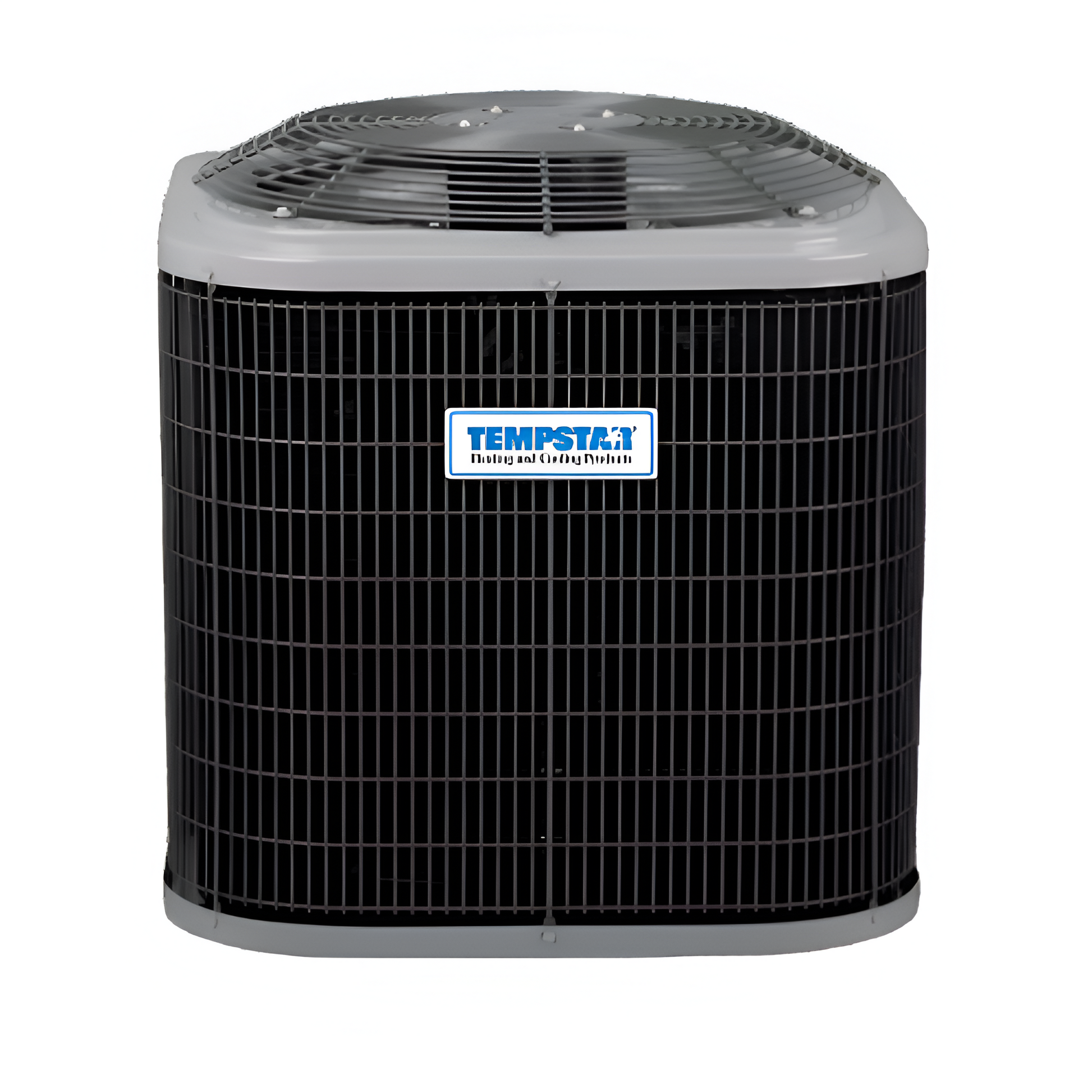

Tempstar By ICP N4H442GKP 3.5 Ton 14 SEER Heat Pump Condenser

The N4H442GKP is a 3.5-ton, 14 SEER heat pump from Tempstar. It features a single-stage scroll compressor for quiet electric heating and cooling and is designed for durability and corrosion resistance. This model uses environmentally balanced R-410A refrigerant and operates on 208-230 volts.

• Weight: 201 lbs

• AHRI - Usage: Outdoor

• Brand: Tempstar

• Compressor Bearing Unit: Yes

• CFM: 2,614

• Condenser Motor HP: 1/10 HP

• Condenser Motor RPM: 1,100

• Condenser Motor Speeds: 1 (Single)

• Condenser Motor Type: Permanent Split Capacitor (PSC)

• Cooling Capacity: 42,000 BTU/hr

• Cubic Measurement: 21.882 cubic feet

• Cycle/Hertz: 60 Hz

• Dimensional Weight: 337 lbs

• EER: 11.5

• Energy Star Rated: No

• Equipment Type: Heat Pump

• ETL Listed: No

• Fins per Inch (FPI): 20

• Full Load Amps: 1.4

• Heating Capacity: 42,000 BTU/hr

• Height: 38.875 inches

• High Pressure Limits: Yes

• HSPF: 8.2

• Inverter: No

• Length: 31.1875 inches

• Liquid Line Fitting Type: Sweat or Braze

• Liquid Line Size (OD): 3/8"

• Locked Rotor Amps (LRA): 105.5

• Maximum Piping Length: 80 feet

• OPT Code: 1PN4H442GKP

• Phase: Single

• Product Family: N4H4

• Prop 65: Yes

• Rated Current Amps (RCA): 18.1

• Rated Load Amps (RLA): 18.1

• Refrigerant: R-410A

• SEER: 14

• Sound Level (dBA): 78

• Suction Line Fitting Type: Sweat or Braze

• Suction Line Size (OD): 7/8"

• Tier: Performance™

• Tonnage: 3.5 tons

• UL Listed: Yes

• Unit of Measure (UOM): EA (Each)

• UPC: See Optical

• Voltage: 208-230 VAC

• Width: 31.1875 inches

• Maximum Overcurrent Protection (MOCP): 40 Amps

• Compressor Type: Scroll

• Country of Origin: USA

• Substantial Commodity: Steel, Copper, Aluminum

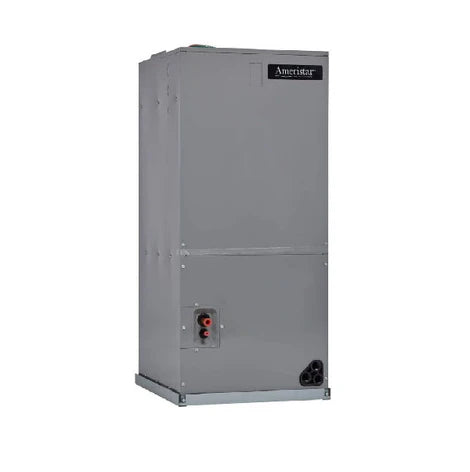

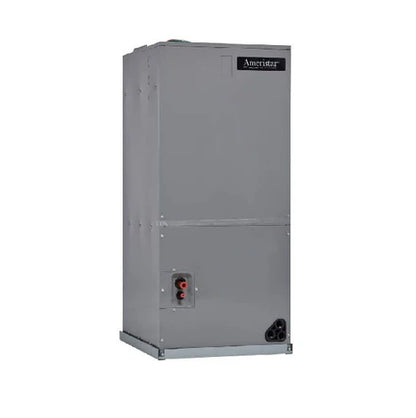

Ameristar By Trane M4AH4P48E1C00AA 4 Ton Multi-Position Air Handler

• General Information

  • Model: M4AH4P48E1C00AA
  • Refrigerant: R-410A

  Electrical Data

  • Rated Volts/Phase/Hertz: 208-230/1/60
  • Motor Speed (RPM): 925
  • Full Load Amps (F.L. Amps): 4.3

  Indoor Coil Specifications

  • Type: Plate Fin
  • Rows: 4
  • Fins Per Inch (F.P.I.): 17
  • Face Area: 5.99 sq. ft.
  • Tube Size: 9/32 inch
  • Refrigerant Control: Orifice
  • Drain Connection Size: 3/4 inch NPT

  Duct Connections

  • Connections: See Outline Drawing

  Indoor Fan Specifications

  • Type: Centrifugal
  • Diameter-Width: 13 x 10-5/8 inches
  • Number Used: 1
  • Drive: Direct
  • Number of Speeds: 3
  • CFM vs. in. w.g.: See Fan Performance Table
  • Motor H.P.: 1/2

  Filter Specifications

  • Filter Furnished: No
  • Recommended Filter Type: Throwaway
  • Filter Size: 20 x 22 inches
  • Filter Thickness: 1 inch

  Refrigerant Line Connections

• Connection Type: Brazed
• Gas Line Connection Size: 7/8 inch
• Liquid Line Connection Size: 3/8 inch
