AmeriStar M4AC4036D1000A 3-Ton Condenser Unit & RUNTRU A4AH6V48A1D30A Multi-Position Air Handler

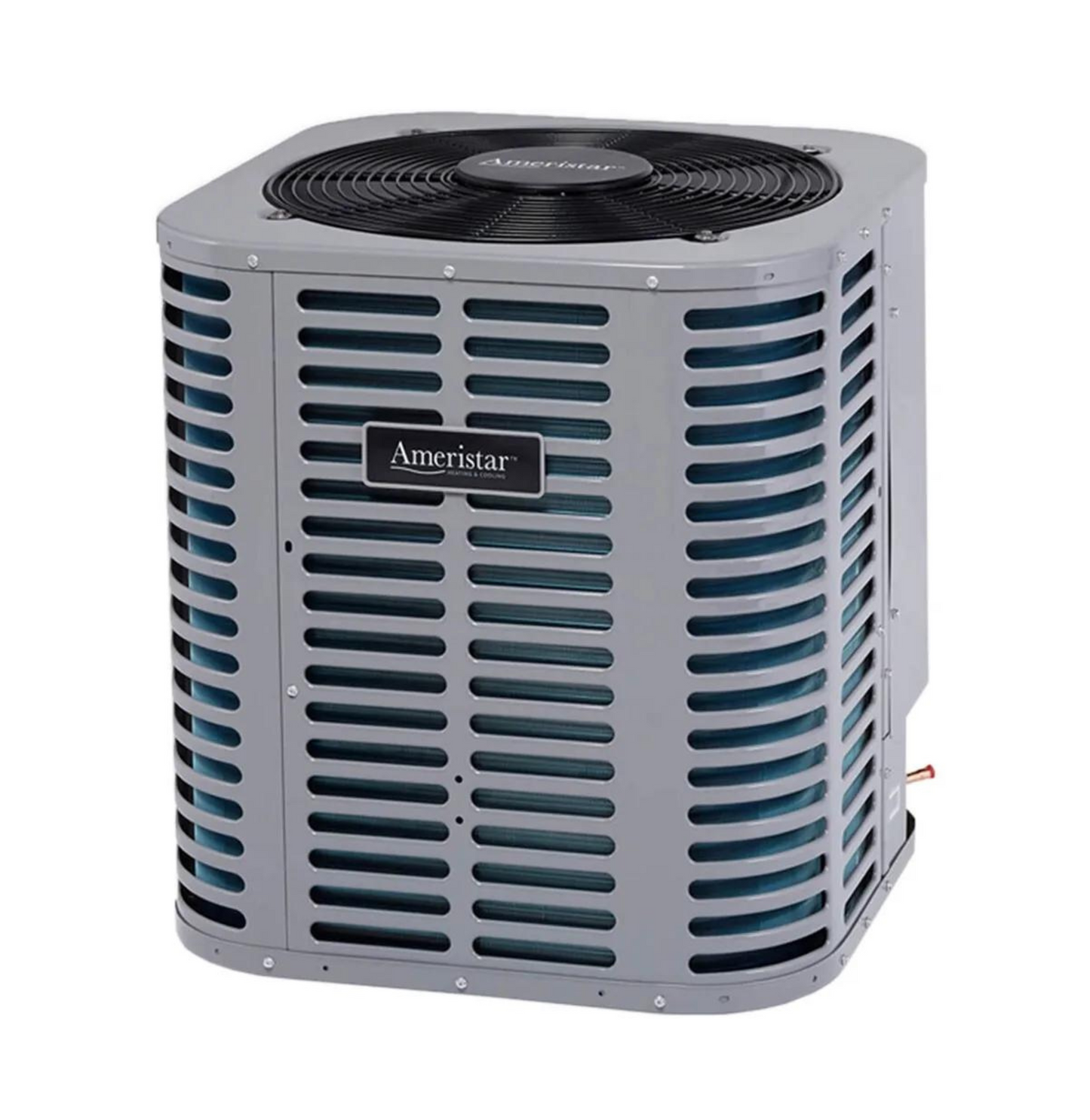

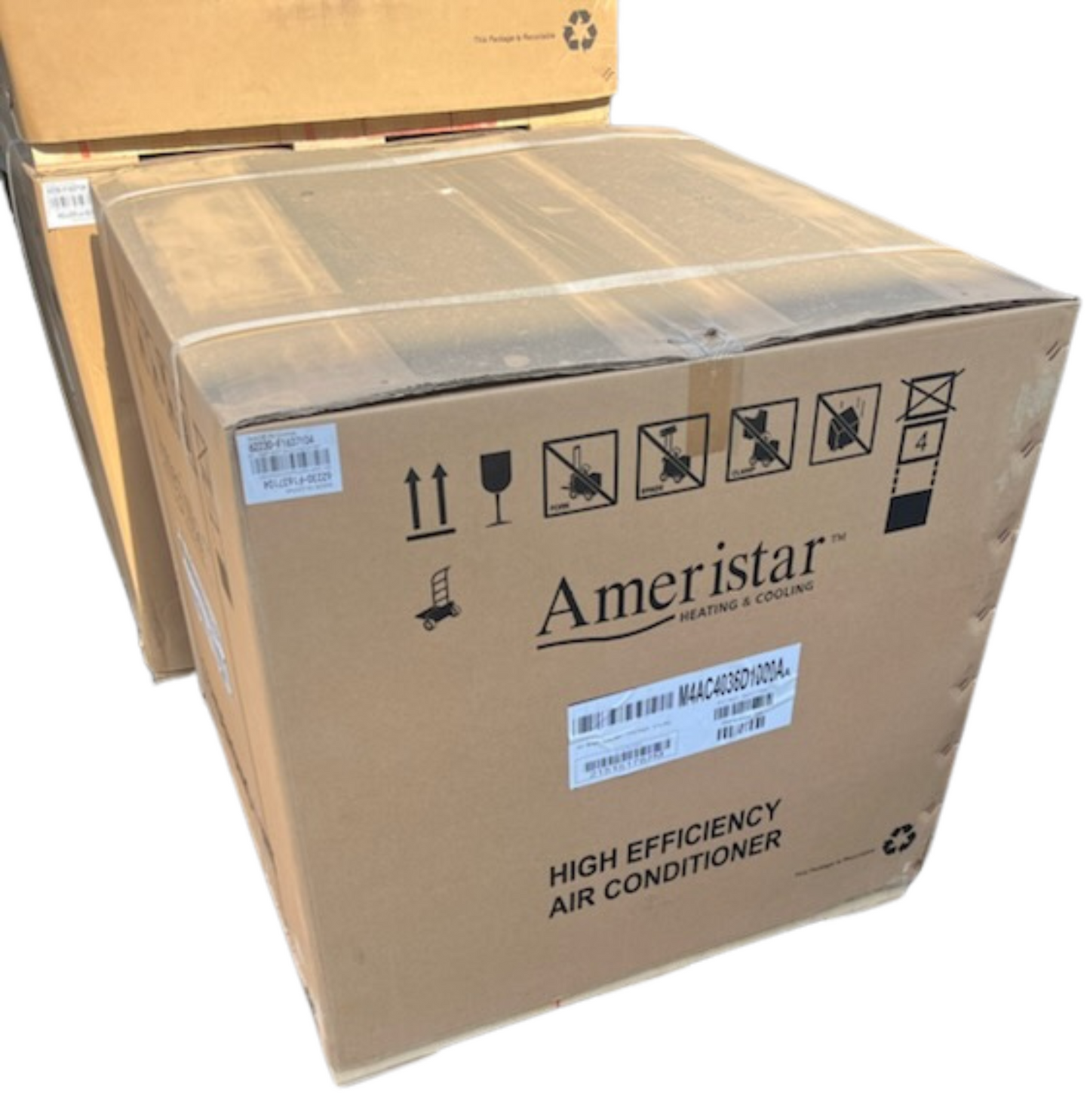

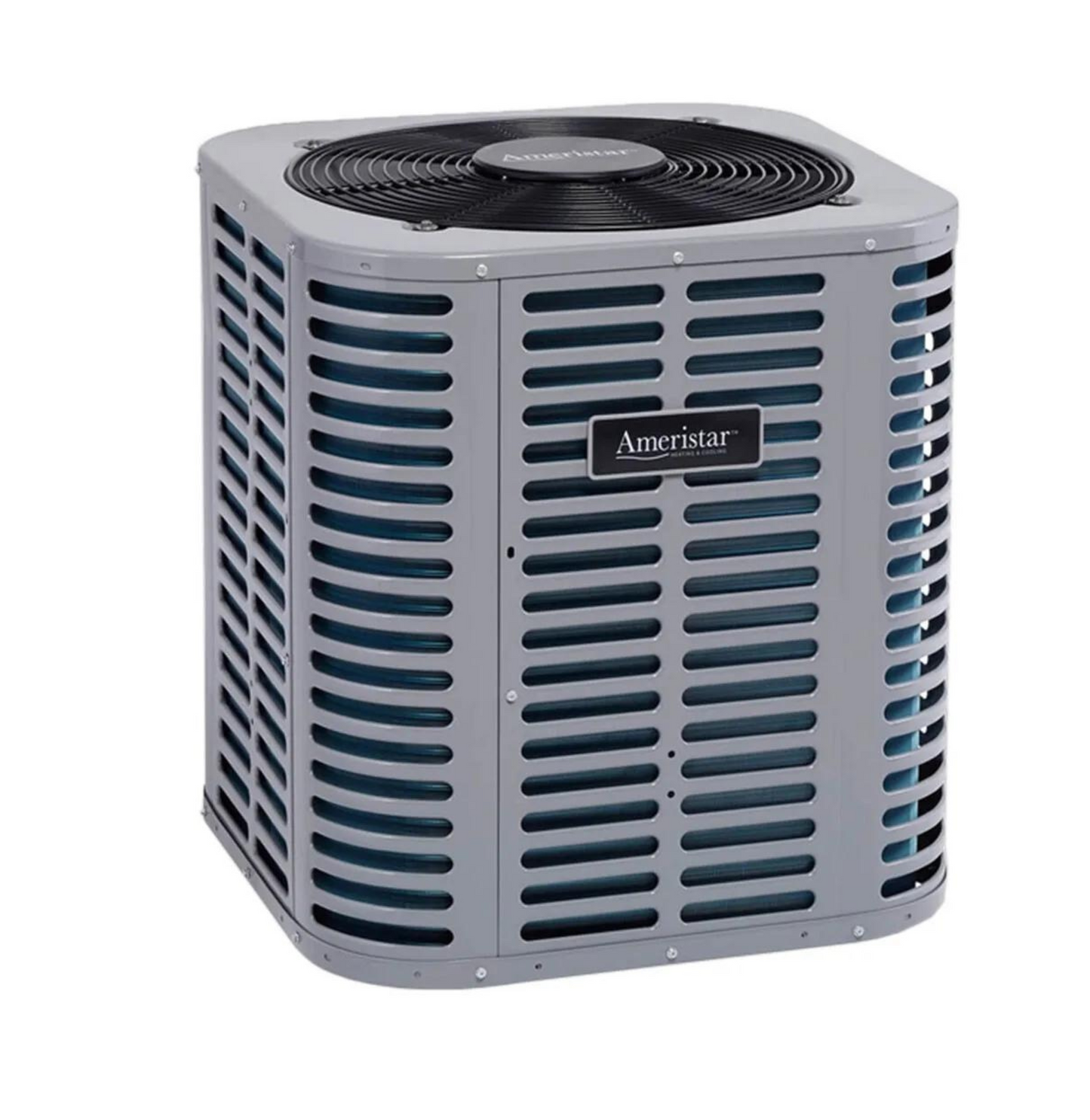

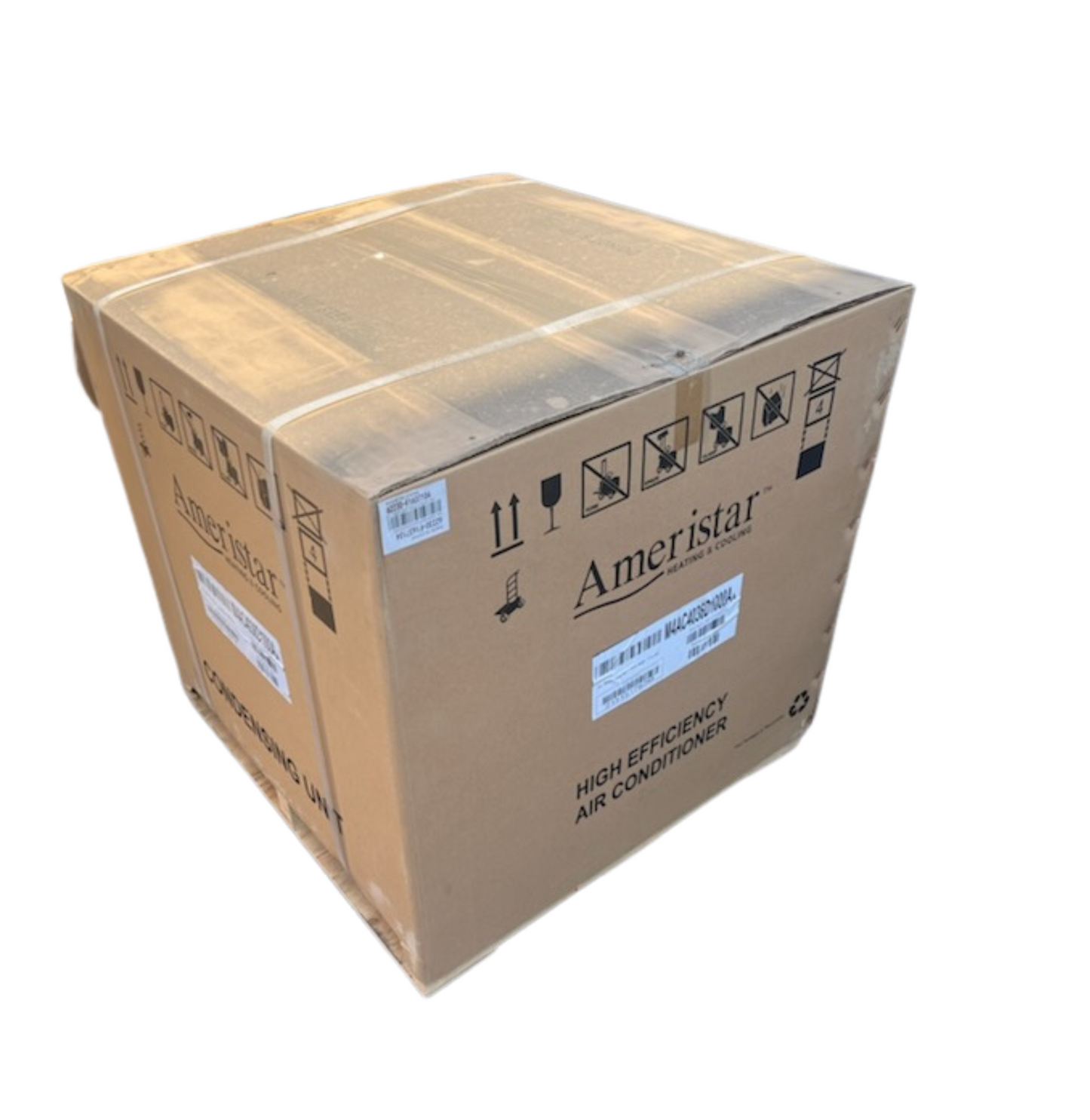

AmeriStar Condensing Unit (Model: M4AC4036D1000A)

• Tonnage: 3
• SEER: 14
• Refrigerant: R410A
• Voltage: 208-230VAC, Single Phase, 60Hz
• Starting Current (LRA): 75A
• Maximum Fuse: 30A
• Condenser Motor HP: 1/6 HP
• Weight: 154 lbs
• Dimensions (LxWxH): 30.23" x 30.23" x 31.49"
• Description: This AmeriStar condensing unit delivers reliable cooling with its 3-ton capacity and 14 SEER rating. Suitable for residential or light commercial use, it operates on R410A refrigerant and features a durable scroll compressor.

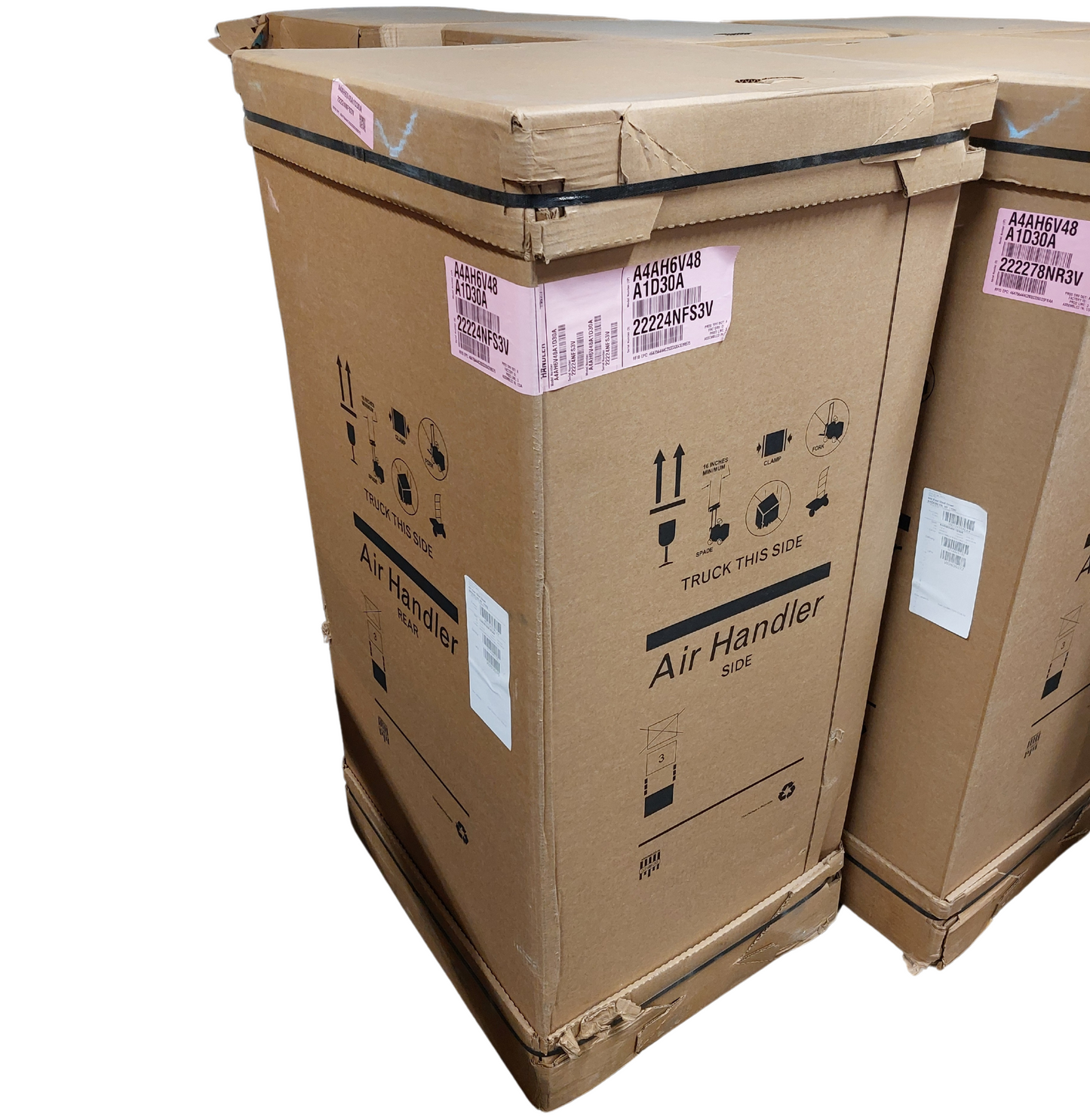

RUNTRU Multi-Position Air Handler (Model: A4AH6V48A1D30A)

• Cooling Capacity: 4.0 Tons (48,000 Btu/Hr)
• Voltage: 208-230VAC, 60Hz, Single Phase
• Horsepower: 3/4 HP
• Refrigerant: R410A
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Dimensions (WxDxH): 26.5" x 21.12" x 53.87"
• Description: The RUNTRU air handler offers high-efficiency cooling with its 16 SEER rating and versatile multi-position configuration. Equipped with an EMC blower motor and utilizing R410A refrigerant, it provides precise airflow control and environmentally friendly operation.
