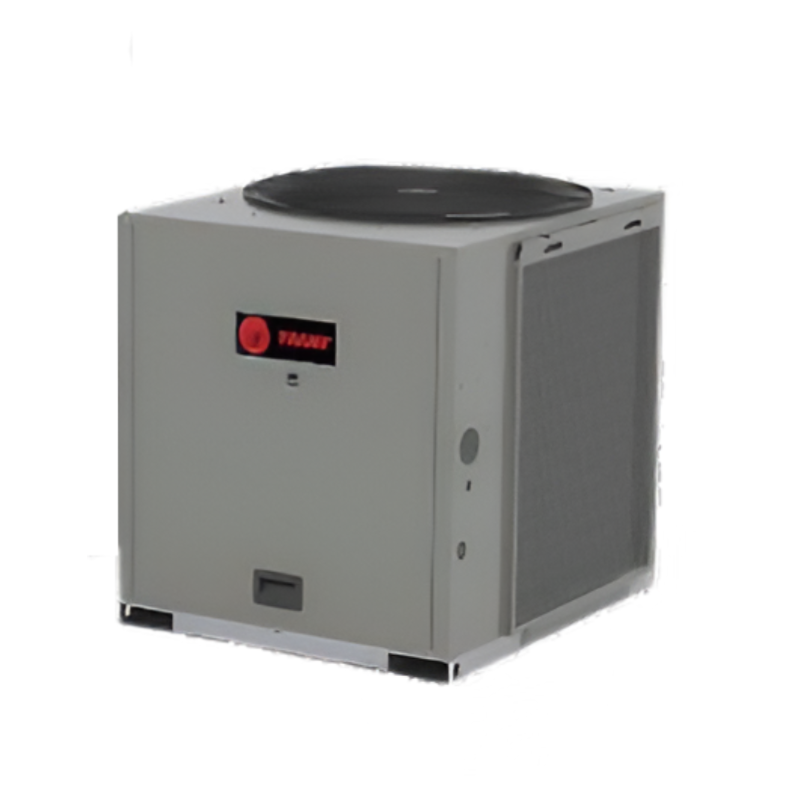

Trane Odyssey TTA07244DAAE02P 6 Ton Commerical AC Condenser Cooling Unit
Trane Odyssey TTA07244DAAE02P 6 Ton Commerical AC Condenser Cooling Unit
Couldn't load pickup availability
6-Ton Odyssey Split System Cooling Unit – Technical Specifications & Features
Looking for a high-performance commercial cooling solution? The 6-Ton Odyssey Split System Cooling Unit is designed for efficient temperature control, featuring dual compressors, dual circuits, and Symbio controls for optimal operation. Below are the key technical specifications to help you understand its capabilities.
Key Specifications
✅ Airflow Capacity: 5,100 CFM
✅ Blower Diameter: 26 inches
✅ Blower Fan Speeds: 1
✅ Coil Coating: Standard Coil with Guards
✅ Coil Face Area: 17.4 sq. ft.
✅ Coil Rows: 1
✅ Coil Type: MCHE
✅ Compressor Type: Scroll
✅ Disconnect/Circuit Breaker (Three-Phase only): 2 Comp/2 Line/2 Stage Duals
✅ Energy Efficiency Ratio (EER): 11.5
✅ Integrated Energy Efficiency Ratio (IEER): 12.9
✅ Efficiency Generation: 14=B) Generation B (2023 DOE Compliant)
✅ Electrical Phases: 3
✅ Voltage: 460V
✅ Fan Drive: Direct
✅ Fan Type: Propeller
✅ Fins Per Inch (FPI): 23
✅ Frequency: 60 Hz
✅ Motor Speed: 1,100 RPM
✅ Nominal Capacity: 72,000 BTU
✅ Number of Compressors: 2
✅ Number of Fans: 1
✅ Outdoor Coil-Tube Size: 4/5 inch
✅ Power Supply: 460V / 3-Phase / 60Hz
✅ Product Type: Split System Cooling
✅ Refrigerant Charge: 7/7 lbs
✅ Refrigerant Type: R-410A
✅ Short Circuit Current Rating (SCCR): Standard SCCR Marking
✅ Cooling Stages: 2
✅ Tonnage: 6
Why Choose the 6-Ton Odyssey Split System Cooling Unit?
- High Efficiency: DOE-compliant with optimized EER and IEER ratings.
- Reliable Performance: Dual compressors and circuits ensure consistent cooling.
- Advanced Controls: Symbio controls for enhanced system monitoring and operation.
- Durability: Standard coil with guards for long-lasting performance.
This commercial HVAC unit is ideal for large spaces, industrial applications, and commercial buildings requiring powerful and efficient cooling.
You can add a transformer to step down the unit voltage from 460V to 230V.
You can connect this unit to two 3-ton air handlers or one 2-stage matching air handler.
Dimensions (HxWxD):
46" x 45" x 38"
Weight: 360 lbs (uncrated)
