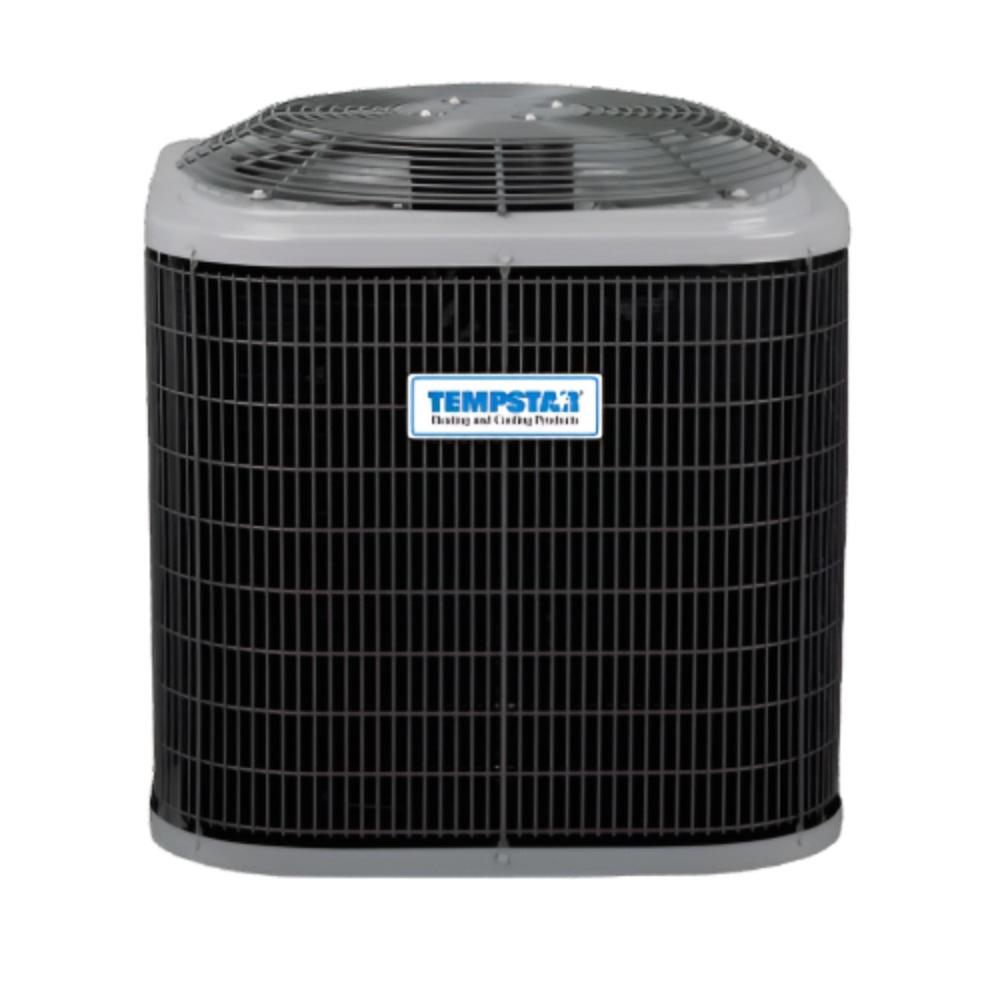

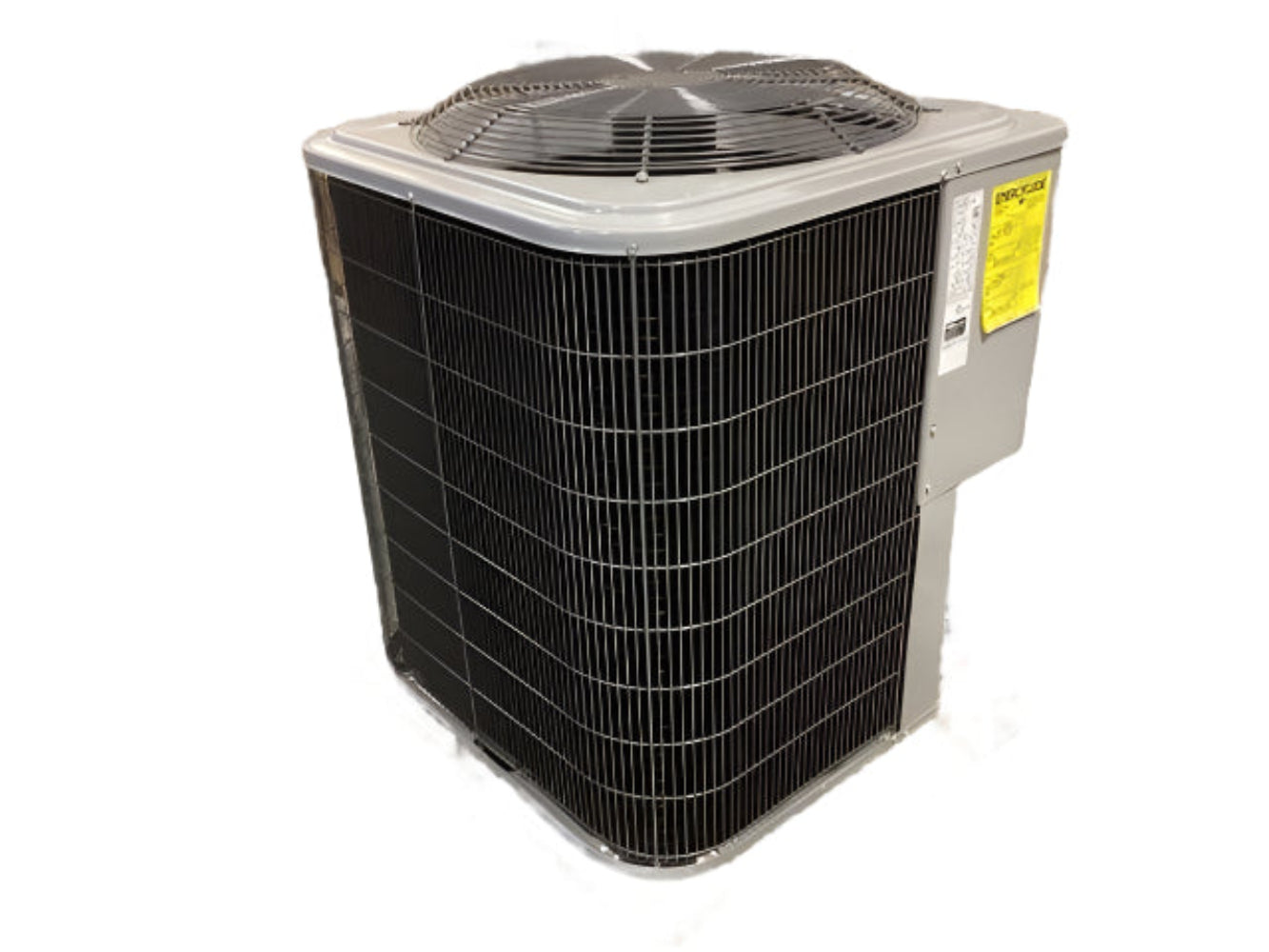

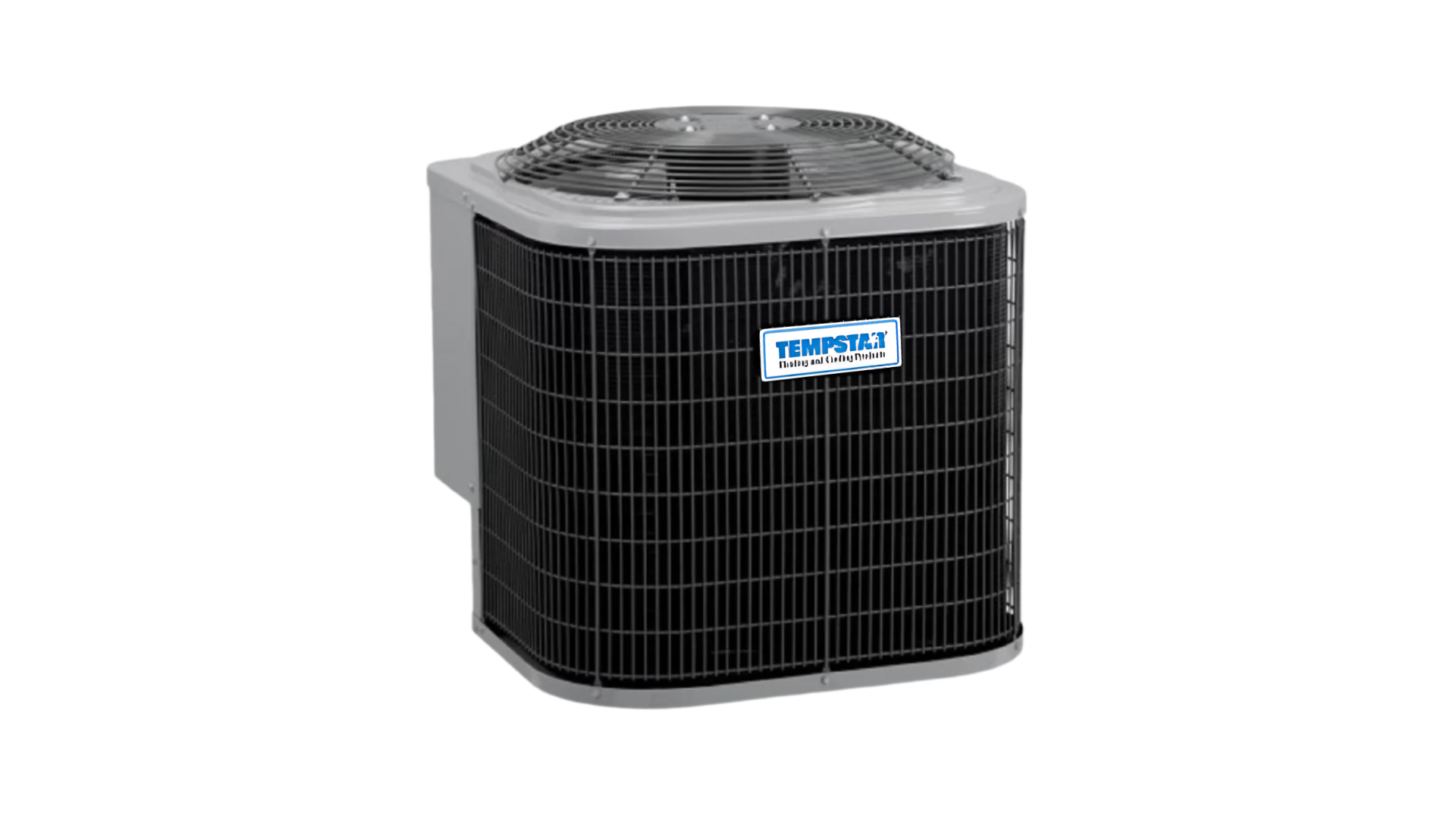

Tempstar By ICP N4H442GKP 3.5 Ton 14 SEER Heat Pump Condenser

The N4H442GKP is a 3.5-ton, 14 SEER heat pump from Tempstar. It features a single-stage scroll compressor for quiet electric heating and cooling and is designed for durability and corrosion resistance. This model uses environmentally balanced R-410A refrigerant and operates on 208-230 volts.

• Weight: 201 lbs

• AHRI - Usage: Outdoor

• Brand: Tempstar

• Compressor Bearing Unit: Yes

• CFM: 2,614

• Condenser Motor HP: 1/10 HP

• Condenser Motor RPM: 1,100

• Condenser Motor Speeds: 1 (Single)

• Condenser Motor Type: Permanent Split Capacitor (PSC)

• Cooling Capacity: 42,000 BTU/hr

• Cubic Measurement: 21.882 cubic feet

• Cycle/Hertz: 60 Hz

• Dimensional Weight: 337 lbs

• EER: 11.5

• Energy Star Rated: No

• Equipment Type: Heat Pump

• ETL Listed: No

• Fins per Inch (FPI): 20

• Full Load Amps: 1.4

• Heating Capacity: 42,000 BTU/hr

• Height: 38.875 inches

• High Pressure Limits: Yes

• HSPF: 8.2

• Inverter: No

• Length: 31.1875 inches

• Liquid Line Fitting Type: Sweat or Braze

• Liquid Line Size (OD): 3/8"

• Locked Rotor Amps (LRA): 105.5

• Maximum Piping Length: 80 feet

• OPT Code: 1PN4H442GKP

• Phase: Single

• Product Family: N4H4

• Prop 65: Yes

• Rated Current Amps (RCA): 18.1

• Rated Load Amps (RLA): 18.1

• Refrigerant: R-410A

• SEER: 14

• Sound Level (dBA): 78

• Suction Line Fitting Type: Sweat or Braze

• Suction Line Size (OD): 7/8"

• Tier: Performance™

• Tonnage: 3.5 tons

• UL Listed: Yes

• Unit of Measure (UOM): EA (Each)

• UPC: See Optical

• Voltage: 208-230 VAC

• Width: 31.1875 inches

• Maximum Overcurrent Protection (MOCP): 40 Amps

• Compressor Type: Scroll

• Country of Origin: USA

• Substantial Commodity: Steel, Copper, Aluminum
