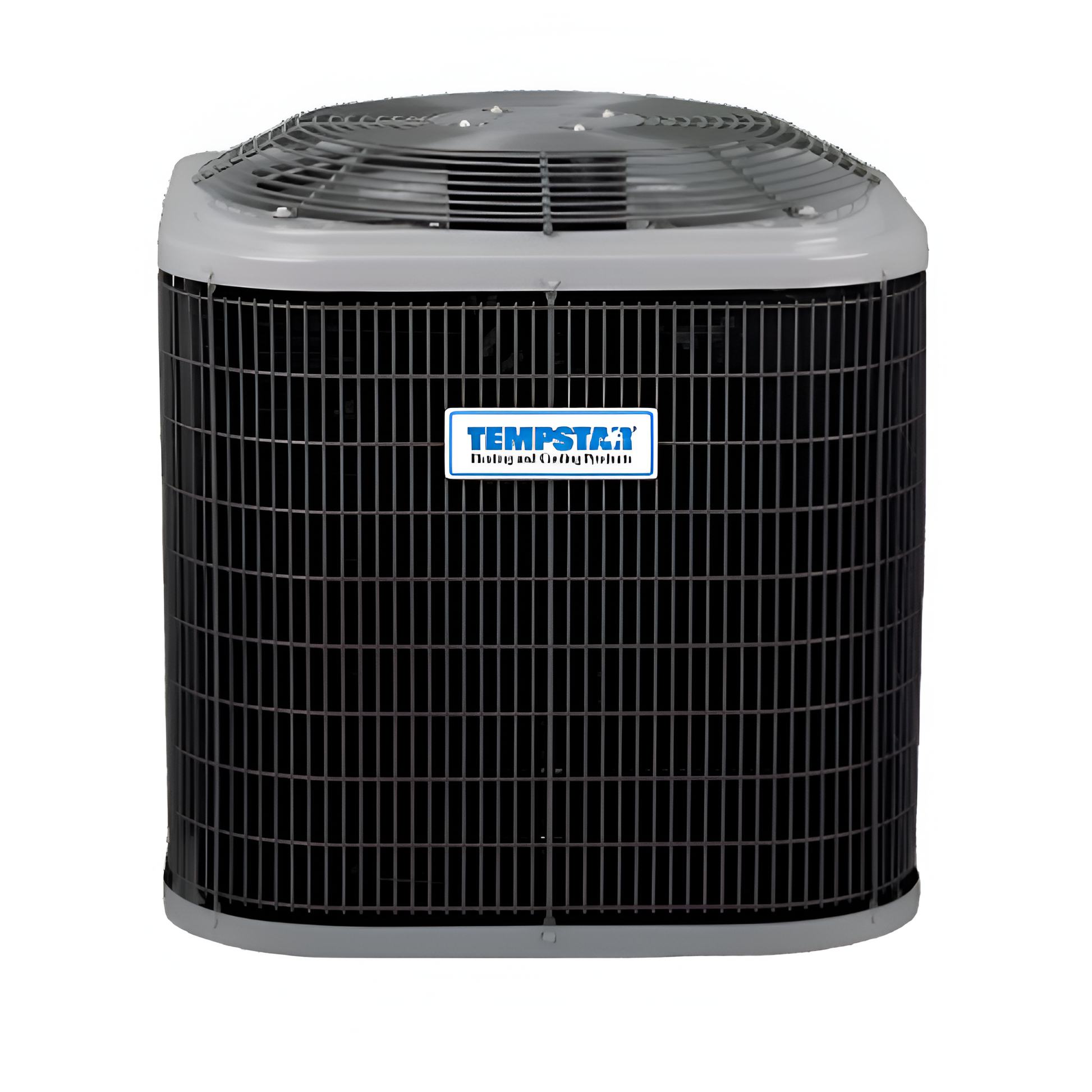

• Tempstar By ICP N4H442GKP 3.5 Ton Heat Pump
1 6

Tempstar

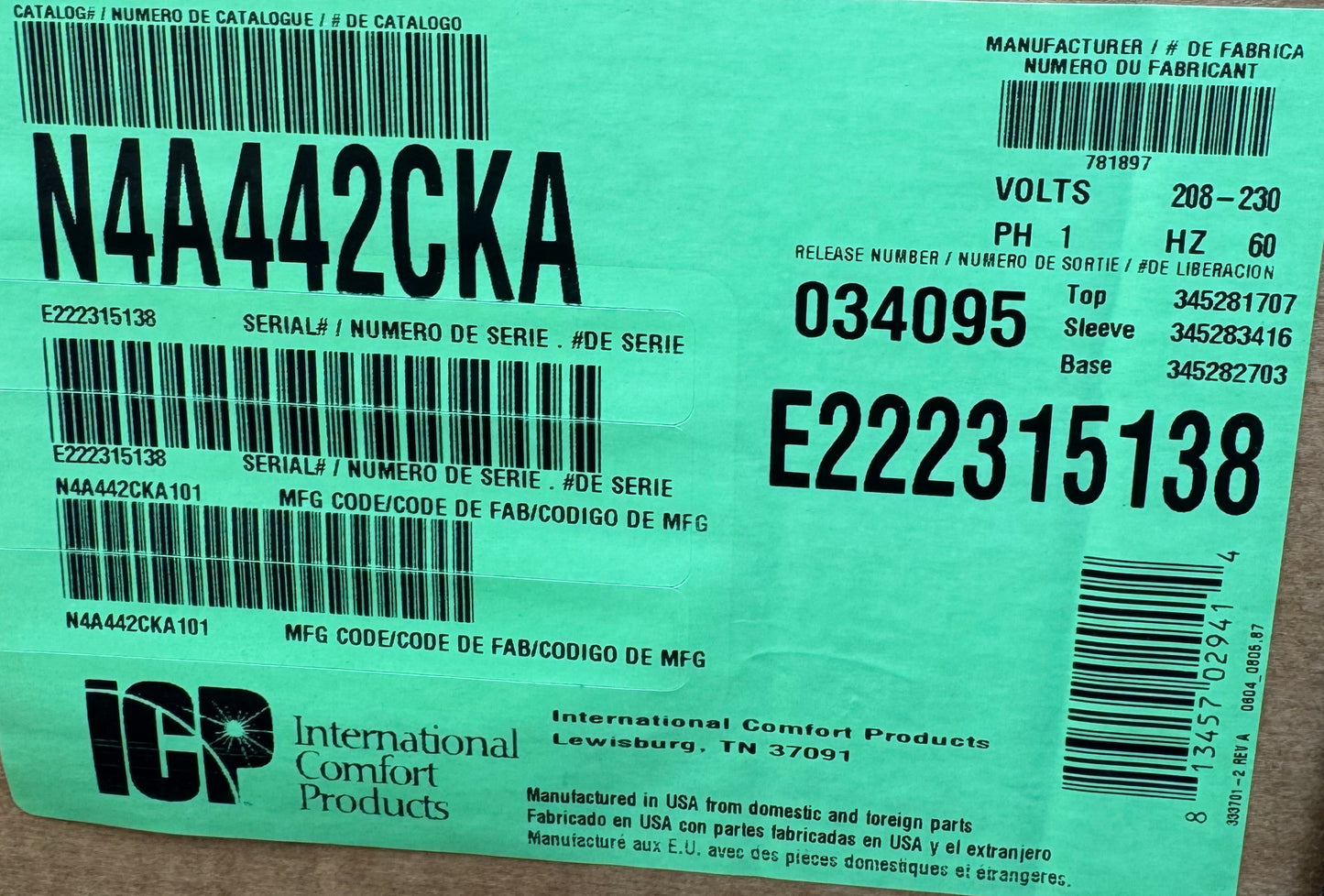

Tempstar by ICP N4A442CKA 3.5 Ton 14 SEER Condensing (Coastal) Unit

Tempstar by ICP N4A442CKA 3.5 Ton 14 SEER Condensing (Coastal) Unit

$1,400.00
$1,400.00
Sale Sold out
Shipping calculated at checkout.
👀 [COUNT] People are currently viewing this product.

Description

  • Model: Coastal 14 SEER Air Conditioner

  • Efficiency Rating: 14 SEER / 11.5-12.5 EER

  • Refrigerant: R-410A

  • System Type: 3.5 tons split system

  • Voltage: 208 / 230 Volt, 1-phase, 60 Hz

Refrigeration Circuit

  • Compressors: Scroll compressors on all models

  • Filter-Drier: Included for field installation

  • Coil: Copper tube / aluminum fin coil

Easy to Install and Service

  • Service Valves: Easy access on all models

  • Refrigerant Service Ports: External high and low

  • Control Panel: Accessible with only two screws

  • Refrigerant Charge: Factory charged with R-410A

Built to Last

  • Finish: Baked-on powder coat finish on all sides

  • Corrosion Protection: Epoxy phenolic coated aluminum fins

  • Cabinet Screws: Coated, weather-resistant

  • Inlet Grille: Coastal coated with 3/8" (10mm) grille spacing for extra protection

Features and Specifications

  • Weight: 210 lbs

  • AHRI - Usage: Outdoor

  • Brand: Tempstar

  • Compressor Bearing Unit: Yes

  • CFM: 3,937

  • Condenser Motor HP: 1/4 HP

  • Condenser Motor RPM: 1,100

  • Condenser Motor Speeds: 1 (Single)

  • Condenser Motor Type: Permanent Split Capacitor (PSC)

  • Cooling Capacity: 42,000 BTU/hr

  • Cubic Measurement: 20.7969 cubic feet

  • Cycle/Hertz: 60 Hz

  • EER: 12

  • Energy Star Rated: No

  • Equipment Type: Straight Cool

  • ETL Listed: No

  • Fins per Inch (FPI): 20

  • Full Load Amps: 1.4

  • Height: 33 inches

  • Inverter: No

  • Length: 33 inches

  • Liquid Line Fitting Type: Sweat or Braze

  • Liquid Line Size (OD): 3/8"

  • Locked Rotor Amps (LRA): 109

  • Maximum Piping Length: 80 feet

  • OPT Code: 1PN4A442CKA

  • Phase: Single

  • Product Family: N4A4-C

  • Prop 65: Yes

  • Rated Load Amps (RLA): 16.7

  • Refrigerant: R-410A

  • SEER: 14

  • Sound Level (dBA): 76

  • Suction Line Fitting Type: Sweat or Braze

  • Suction Line Size (OD): 7/8"

  • Tonnage: 3.5 tons

  • UL Listed: Yes

  • Unit of Measure (UOM): EA (Each)

  • UPC: See Optical

  • Voltage: 208-230 VAC

  • Width: 33 inches

  • Maximum Overcurrent Protection (MOCP): 35 Amps

  • Compressor Type: Scroll

  • Country of Origin: USA

  • Substantial Commodity: Steel, Copper, Aluminum
