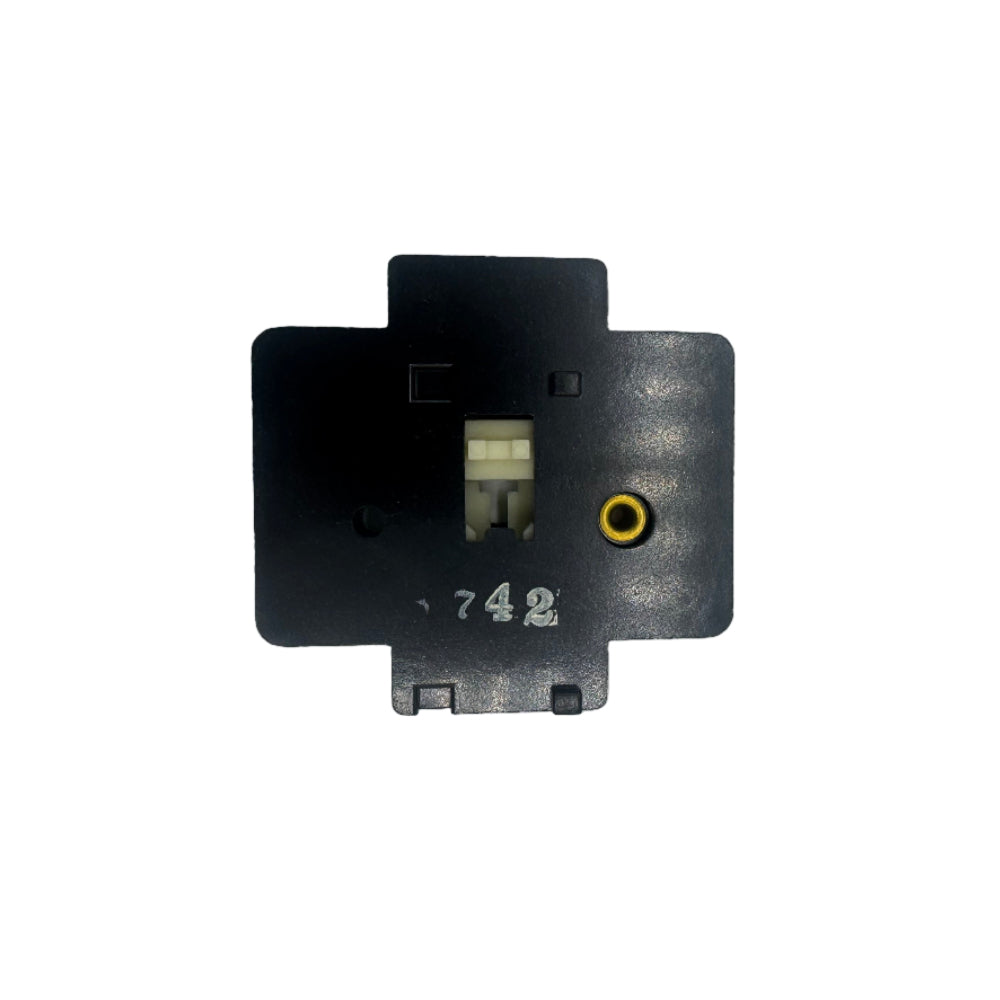

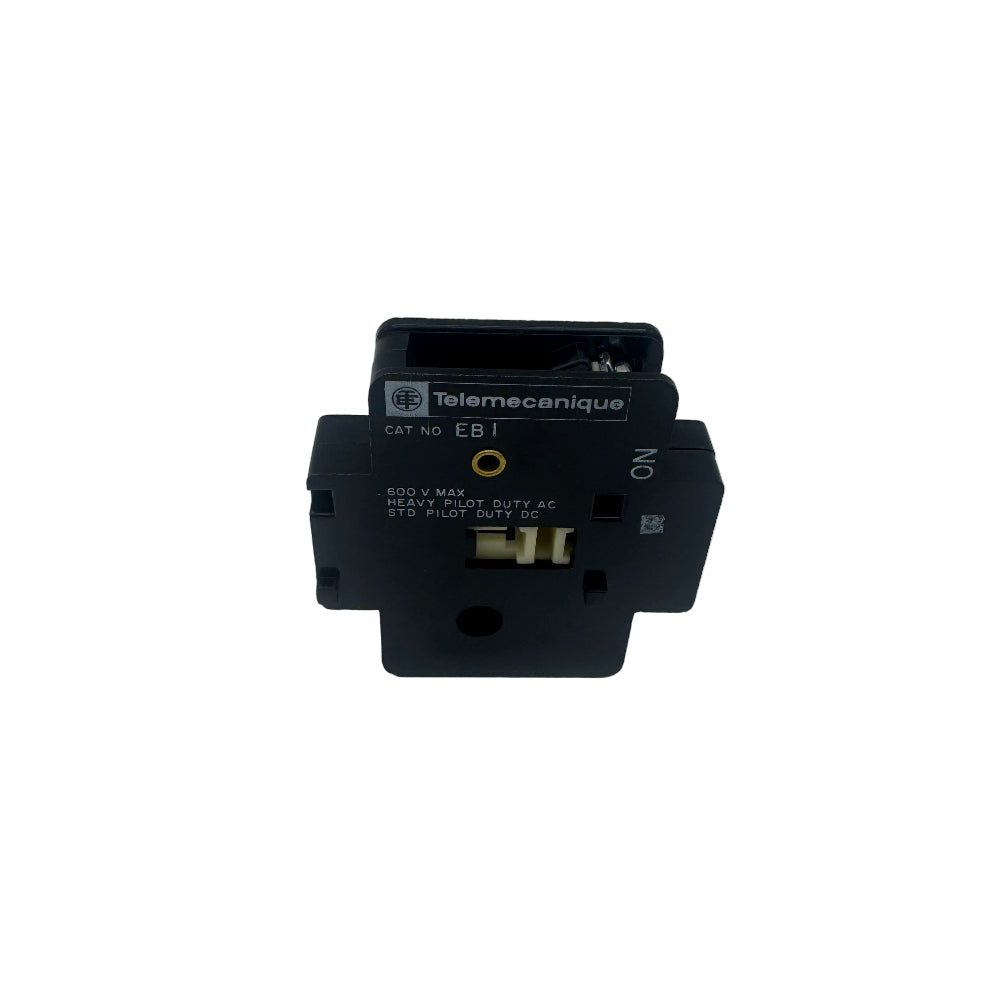

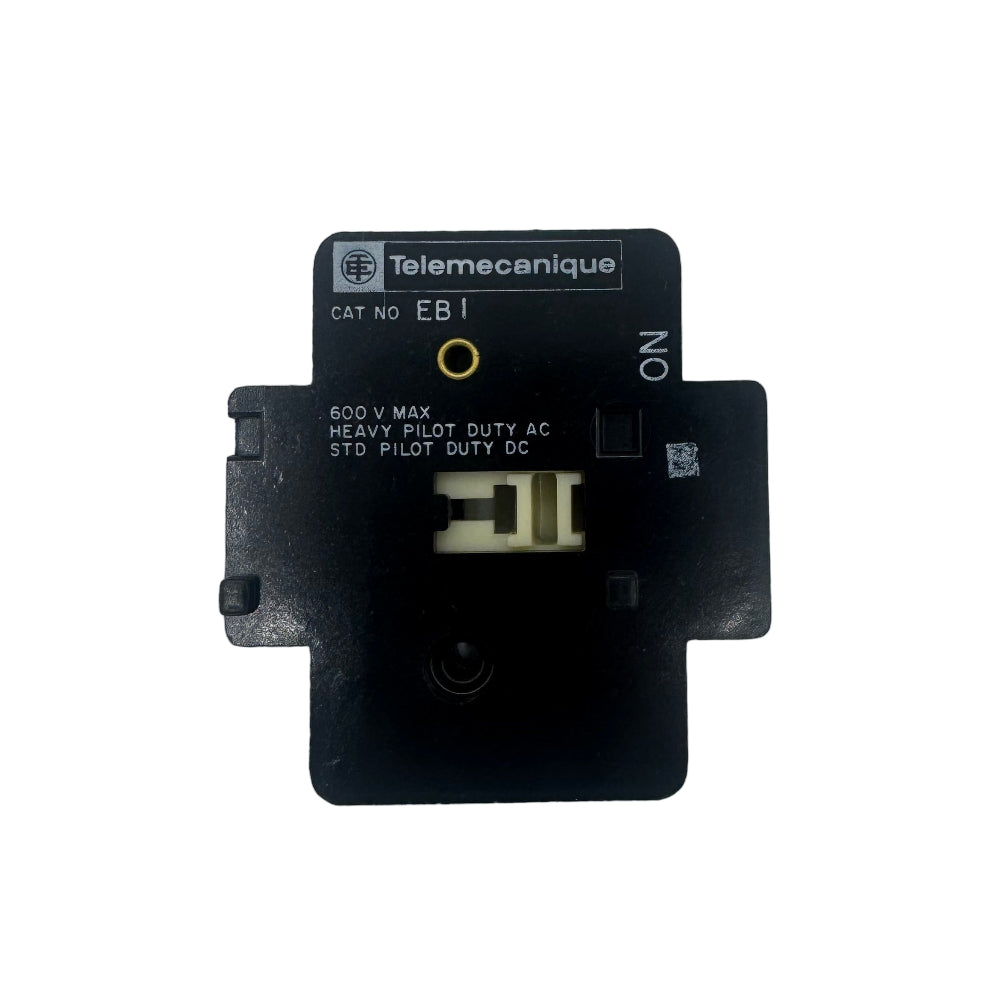

Telemecanique 2200EB1 Auxiliary Contact Kit - Edpac E041650

The Telemecanique 2200EB1 Auxiliary Contact Kit is a contact block accessory used with motor starters and contactors, providing an additional electrical contact (1 Normally Open) rated up to 600V.

🔧 Key Details

• Manufacturer: Telemecanique (part of Schneider Electric)
• Part Number: 2200-EB1
• Type: Auxiliary Contact Block / Kit
• Contact Configuration: 1NO (one normally open contact)
• Poles: 3-pole auxiliary block
• Voltage Rating: Up to 600 VAC
• Weight: ~0.088 lbs
• Application:

• Installed on motor starters or contactors to provide extra signaling or control contacts.
• Commonly used for interlocking, signaling, or control circuit extensions.

⚙️ How It Works

• Auxiliary contacts are not part of the main power circuit. Instead, they provide feedback or control signals.
• For example, when a motor starter closes, the auxiliary contact can send a signal to a control panel light or another relay.
• The 2200EB1 kit adds one extra NO contact, meaning it closes only when the main device is energized.

📦 Typical Uses

• Industrial automation systems for monitoring motor starter status.
• Control panels to trigger indicator lights or alarms.
• Interlocking circuits where additional contacts are required for safety or sequencing.
