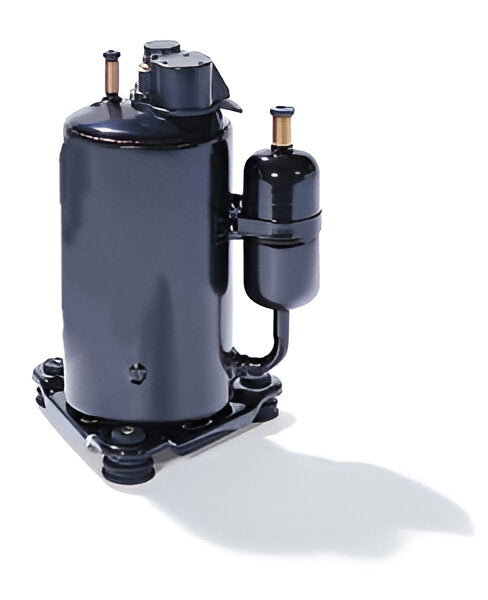

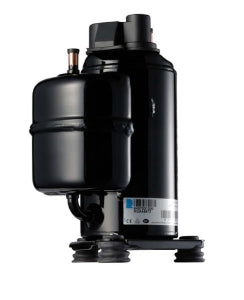

Tecumseh RGA5512EXD 1 Ton Rotary Compressor R22 208v 1PH

Tecumseh RGA5512EXD rotary compressor:

⚙️ General Specifications

• Product Family: RG Series
• Application: Air Conditioning (AC), High Back Pressure (HBP)
• Status: Active
• Technology: Rotary Compressor
• Horsepower: 1 HP
• Refrigerant: R-22

🔌 Electrical Details

• Voltage:
• 200V 1PH 50Hz
• 208–230V 1PH 60Hz
• Motor Type: PSC (Permanent Split Capacitor)
• Rated Load Amps (RLA): 5.15 (60Hz)
• Locked Rotor Amps (LRA): 27.9
• Maximum Continuous Current (MCC): 8.3
• Motor Resistance:
• Main: 2.3 ohms
• Start: 5.9 ohms
• Oil Type: Synthetic Alkylate
• Oil Charge: 250 cc
• Viscosity: 53

❄️ Performance & Environment

• Evaporating Range: –23.3°C to 12.8°C (–10°F to 55°F)
• Cooling Method: Fan-cooled
• Mechanical Displacement: 16.114 cc

📏 Physical Dimensions

• Length: 221 mm (9 in)
• Height: 289 mm (11 in)
• Width: 157 mm (6 in)
• Weight: ~11–12 kg (24–26 lbs)

🔧 Connections & Accessories

• Discharge Line Size: 5/16 in (7.93 mm)
• Suction Line Size: 1/2 in (12.7 mm)
• Mounting Parts: Included
• Accessories: Grommet, Run Capacitor, Terminal Cover
