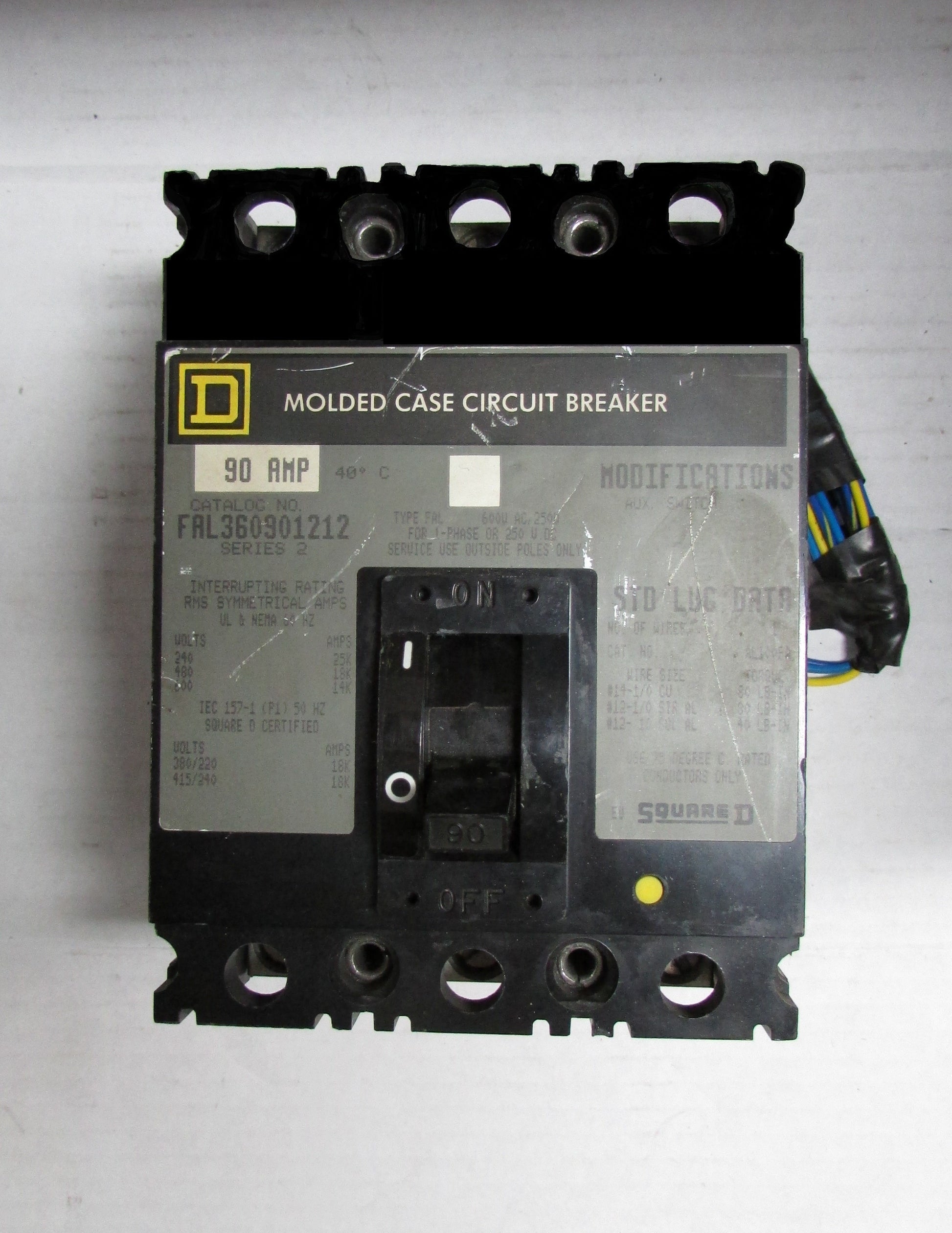

Square D FAL36090 1212 Circuit Breaker 90AMP

Square D FAL36090 1212 Circuit Breaker 90AMP

👀 [COUNT] People are currently viewing this product.
Regular price $425.00 USD
Regular price Sale price $425.00 USD
Sale Sold out
Shipping calculated at checkout.

Square D FAL360901212 • Circuit Breaker

Commodity Description: Circuit Breakers - Industrial Circuit Breakers
UPC: 78590114042
Item Number: 14042
Catalog Number: FAL360901212
Type: MOLDED CASE, THERMAL MAGNETIC
Frame Type: F
Voltage Rating: 240 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ, 480 VAC AT 50/60 HZ, 600 VAC STAR/347 VAC AT 50/60 HZ, 600 VAC AT 50/60 HZ (UL/CSA/NOM); 240/415 VAC AT 50/60 HZ (IEC); 250 VDCMaximum AC Voltage Rating: 600 Maximum AC Voltage Rating - UOM: VMaximum DC Voltage Rating: 250Maximum DC Voltage Rating - UOM: VCurrent Rating: 90 AMPERE AT 40 DEG C
Number of Poles: 3
Interrupting Rating: 25 KILOAMPERE AT 240 VAC, 18 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC, 14 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM); 10 KILOAMPERE AT 240/415 VAC (IEC); 10 KILOAMPERE AT 250 VDC

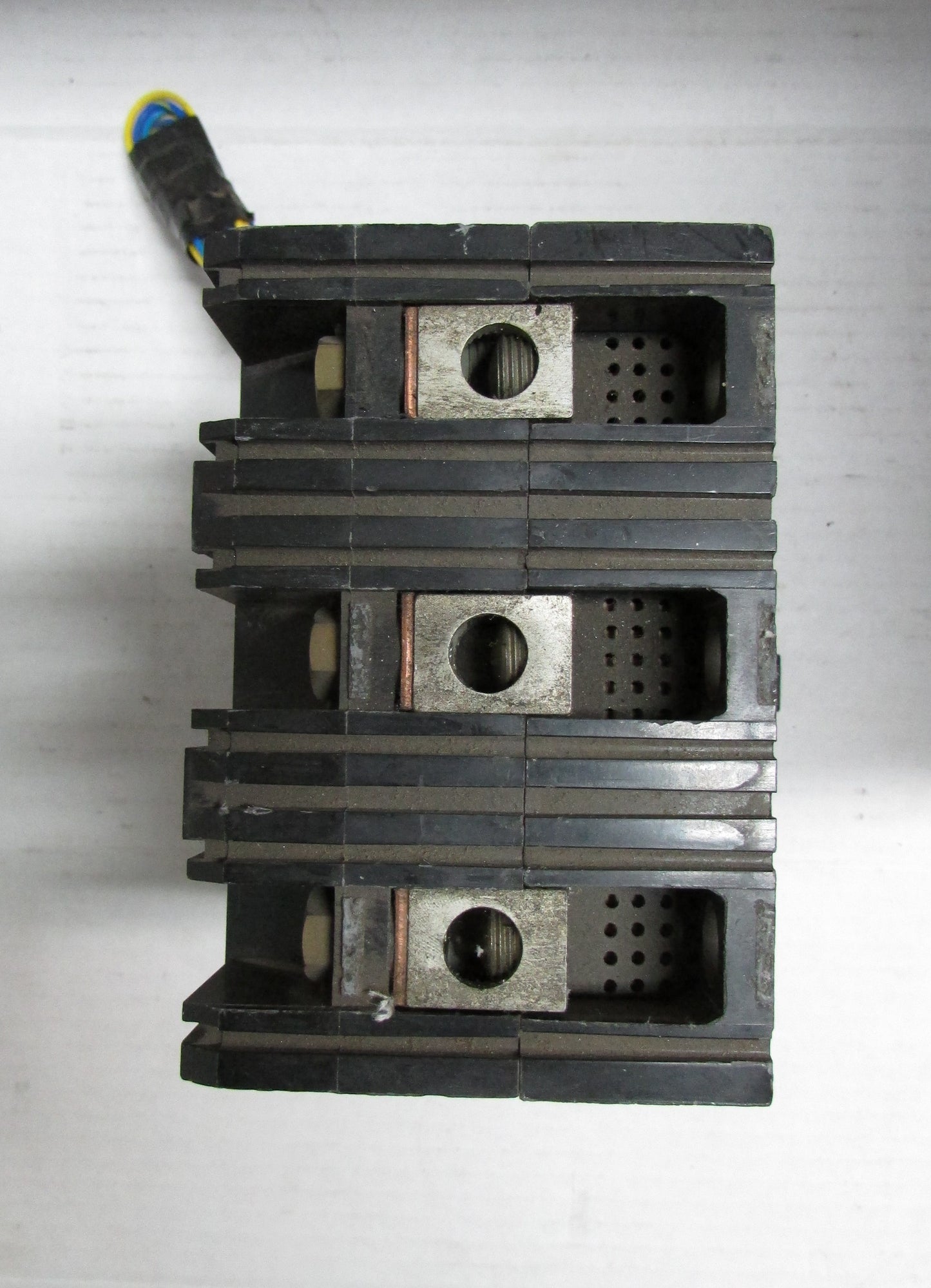

Terminal Type: LINE LUG, LOAD LUG
Size: 4.5 INCH W X 4.13 INCH D X 6 INCH H
Approval: UL, CSA, CE

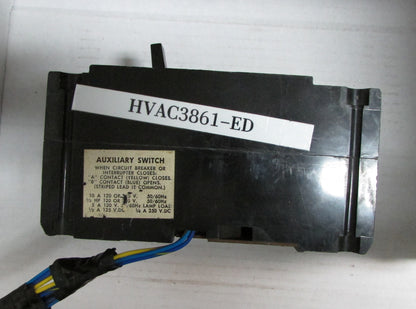

Additional Information: APPLICABLE STANDARD IEC 947-2; INCLUDES 125 TO 250 VAC 1NO-1NC AUXILIARY
