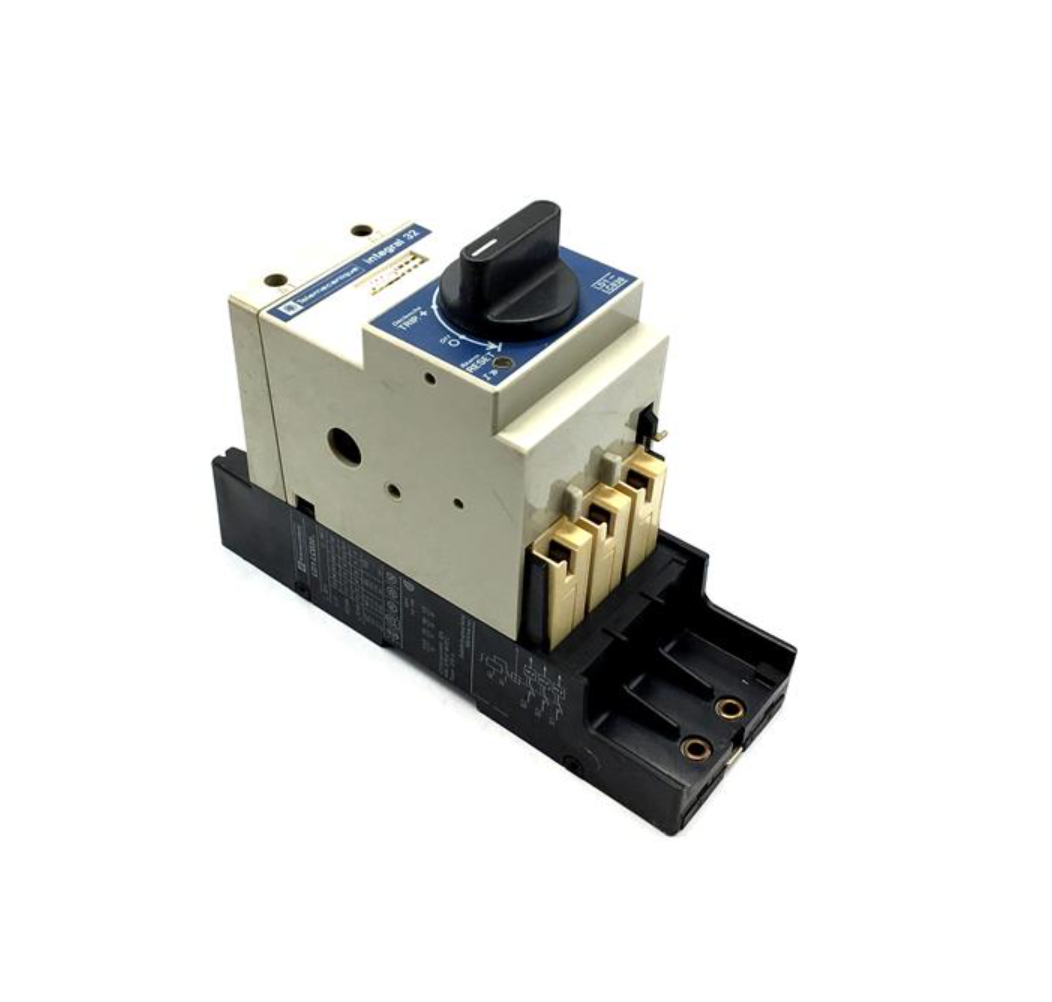

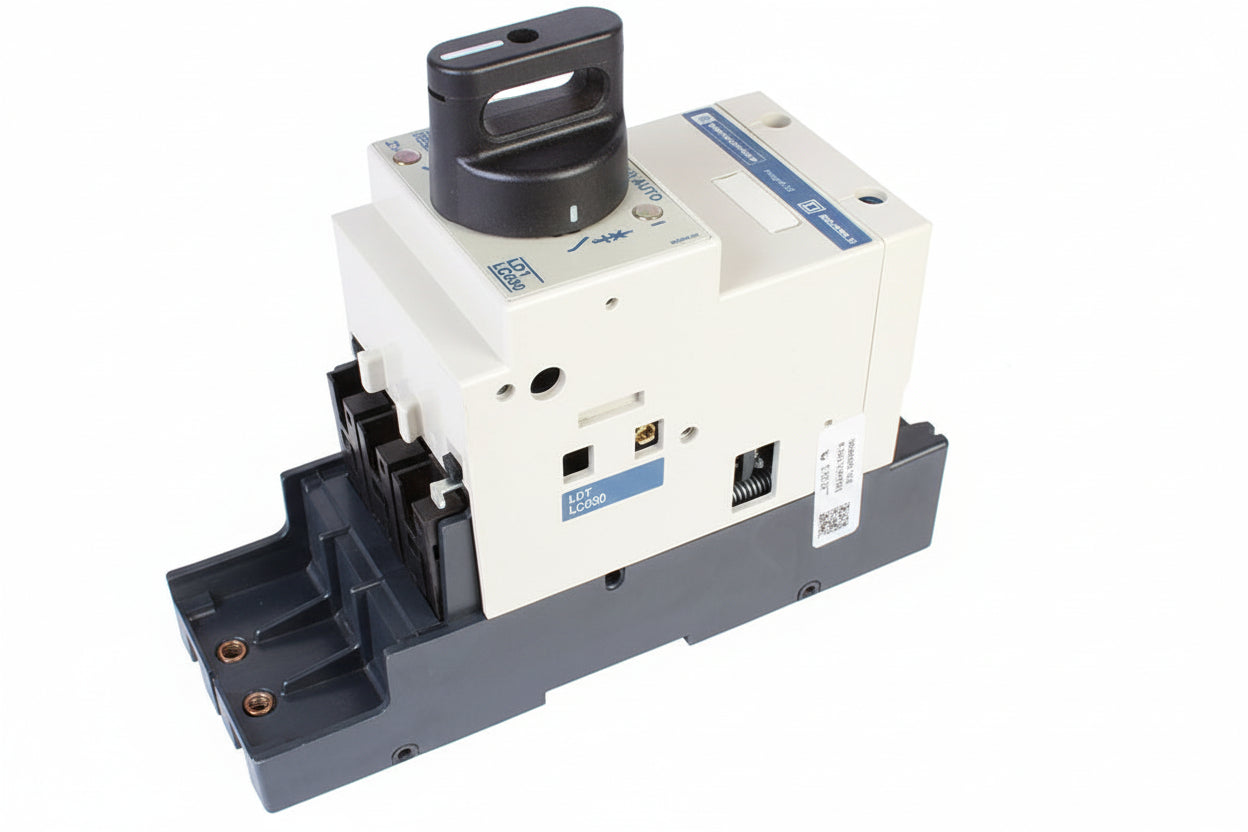

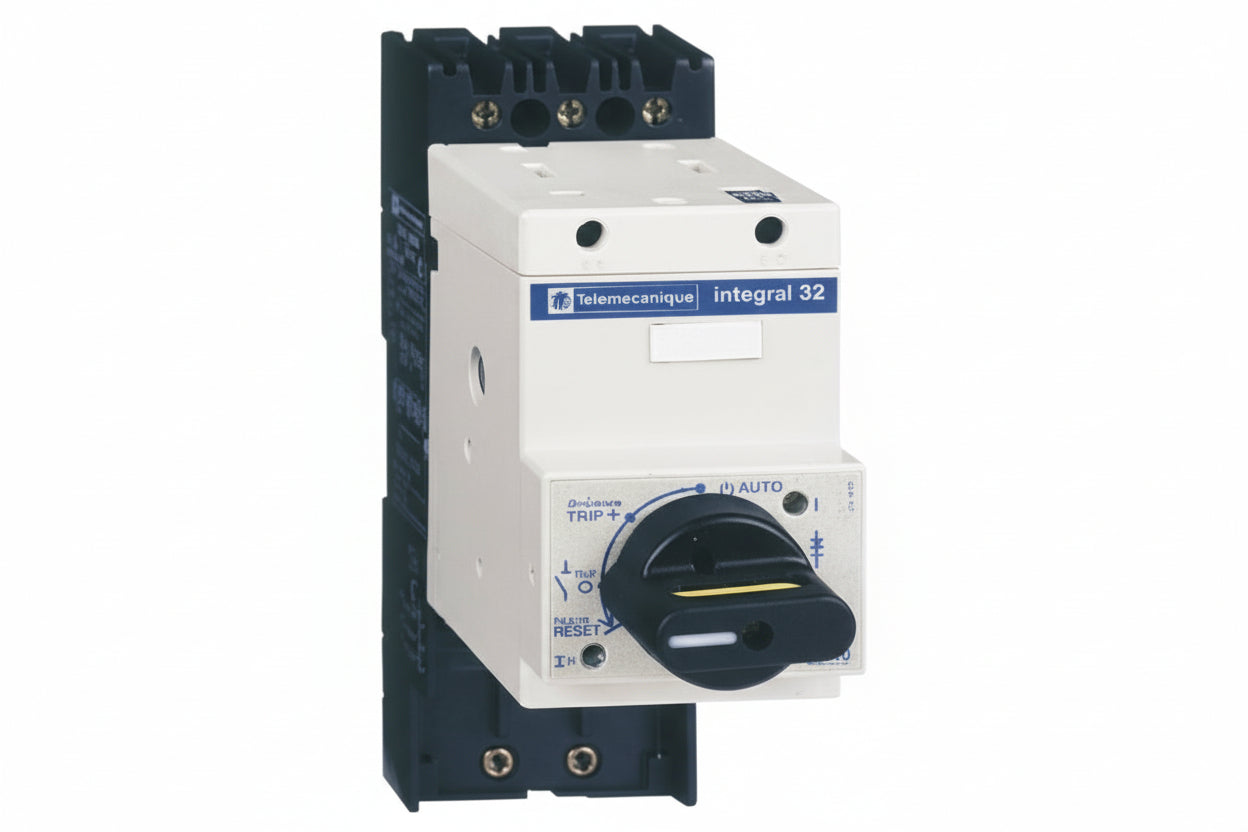

Schneider Electric Telemecanique / Square D LD1LC030FC Motor Starter / Contactor Breaker

The LD1LC030FC is a Schneider Electric Telemecanique motor starter, specifically a non‑reversing, self‑protected combination motor controller rated at 32A, designed for 3‑phase motors up to 30 HP. It has a coil voltage of 110/120V AC, 60 Hz.

🔧 Key Details About LD1LC030FC

• Manufacturer: Schneider Electric (Telemecanique / Square D branding)
• Type: Integral non‑reversing motor starter (also referred to as a DOL contactor breaker)
• Current Rating: 32 A continuous
• Voltage Rating: Up to 600 V AC
• Coil Voltage: 110/120 V AC, 60 Hz
• Phase: 3‑phase, 3‑pole
• Horsepower Ratings:
• 10 HP @ 230 V
• 20 HP @ 460 V
• 30 HP @ 575 V
• Enclosure: Open type (not enclosed)
• Status: Discontinued since August 2011, but repair and spare parts support continued afterward
