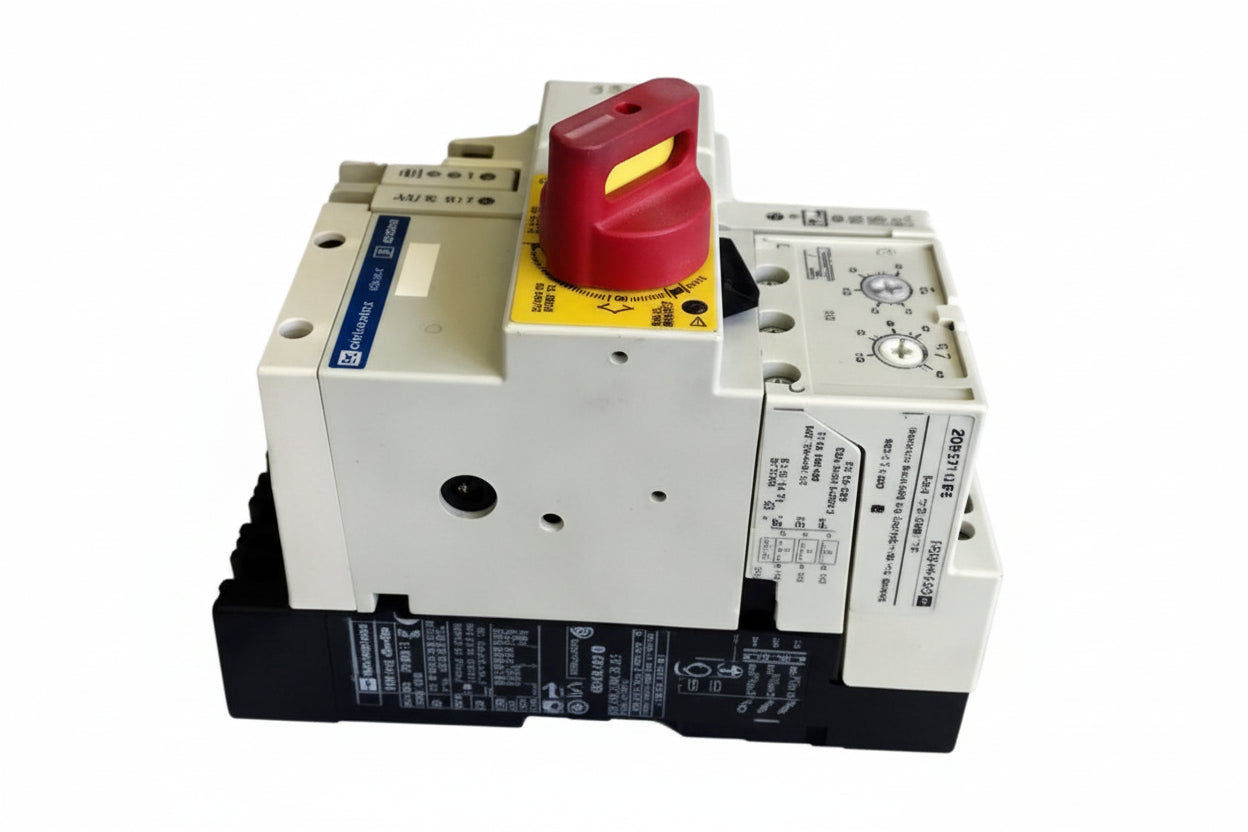

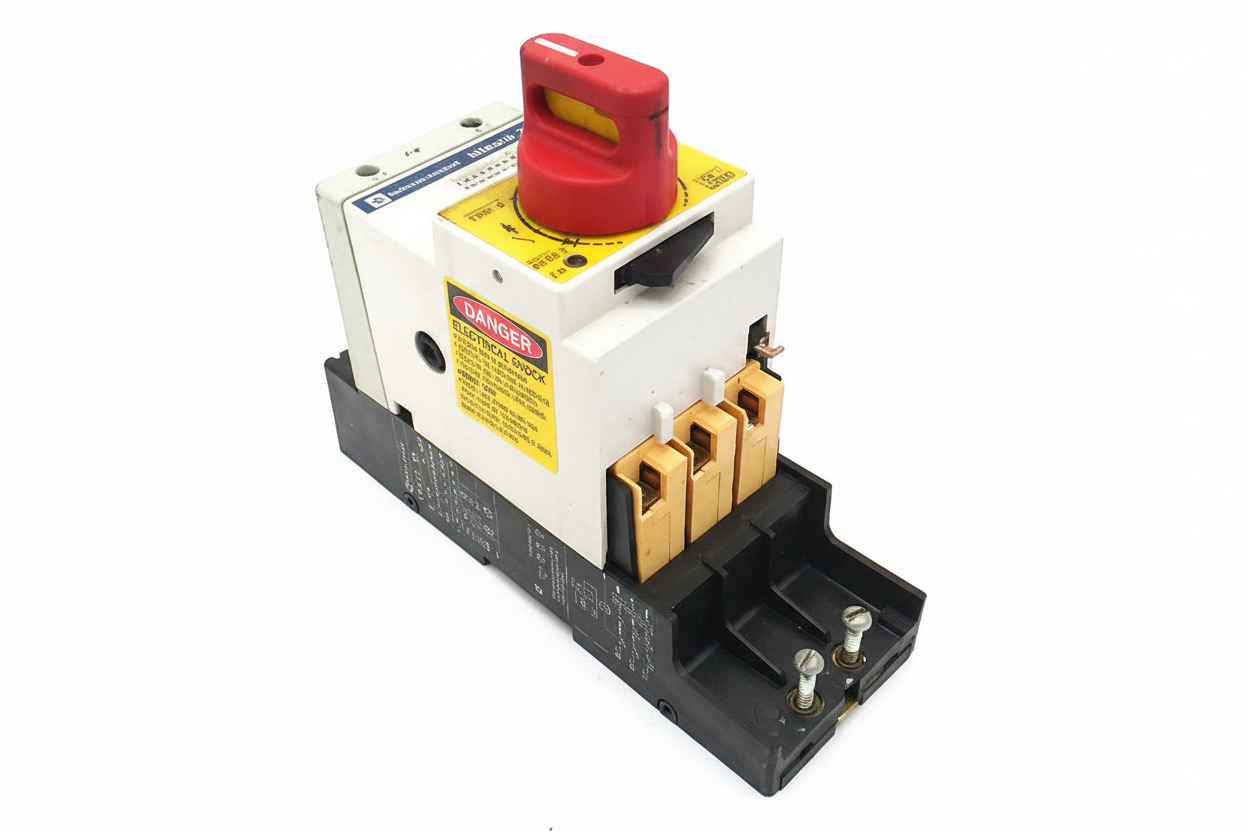

Schneider Electric (Telemecanique) LD4LC30H5 with LB1‑LC03M17 Self Protected Motor Controller

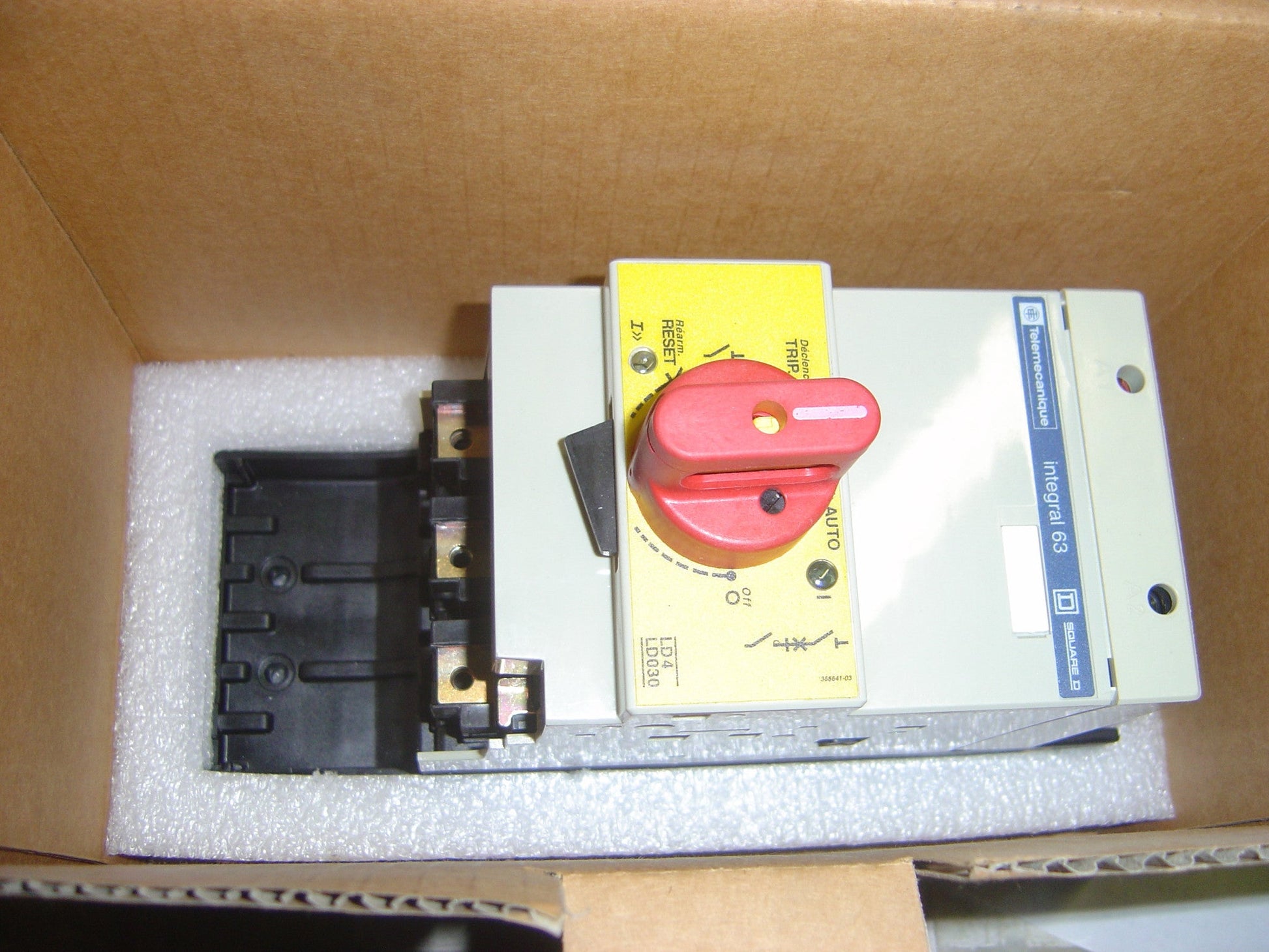

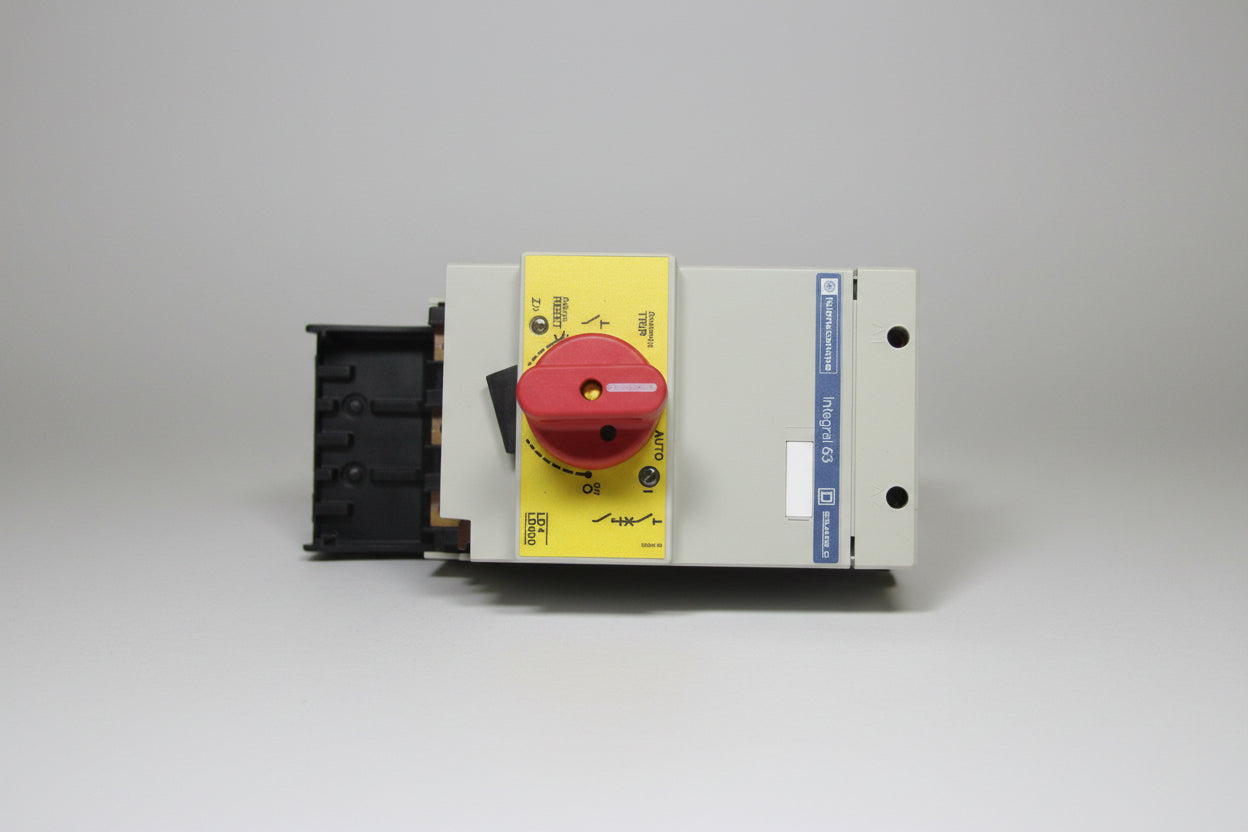

The LD4LC30H5 with LB1‑LC03M17 is a Schneider Electric (Telemecanique) Integral 32 motor starter assembly.

• LD4LC30H5 is a 32A, 600V AC non‑reversing motor starter/contactor module.
• LB1‑LC03M17 is a thermal‑magnetic protection module (overload relay) rated for 10–16A, designed to mount directly on the LD4LC30H5 to provide overload and short‑circuit protection.

Together, they form a self‑protected combination motor controller suitable for 3‑phase motors in industrial applications.

🔧 Key Details

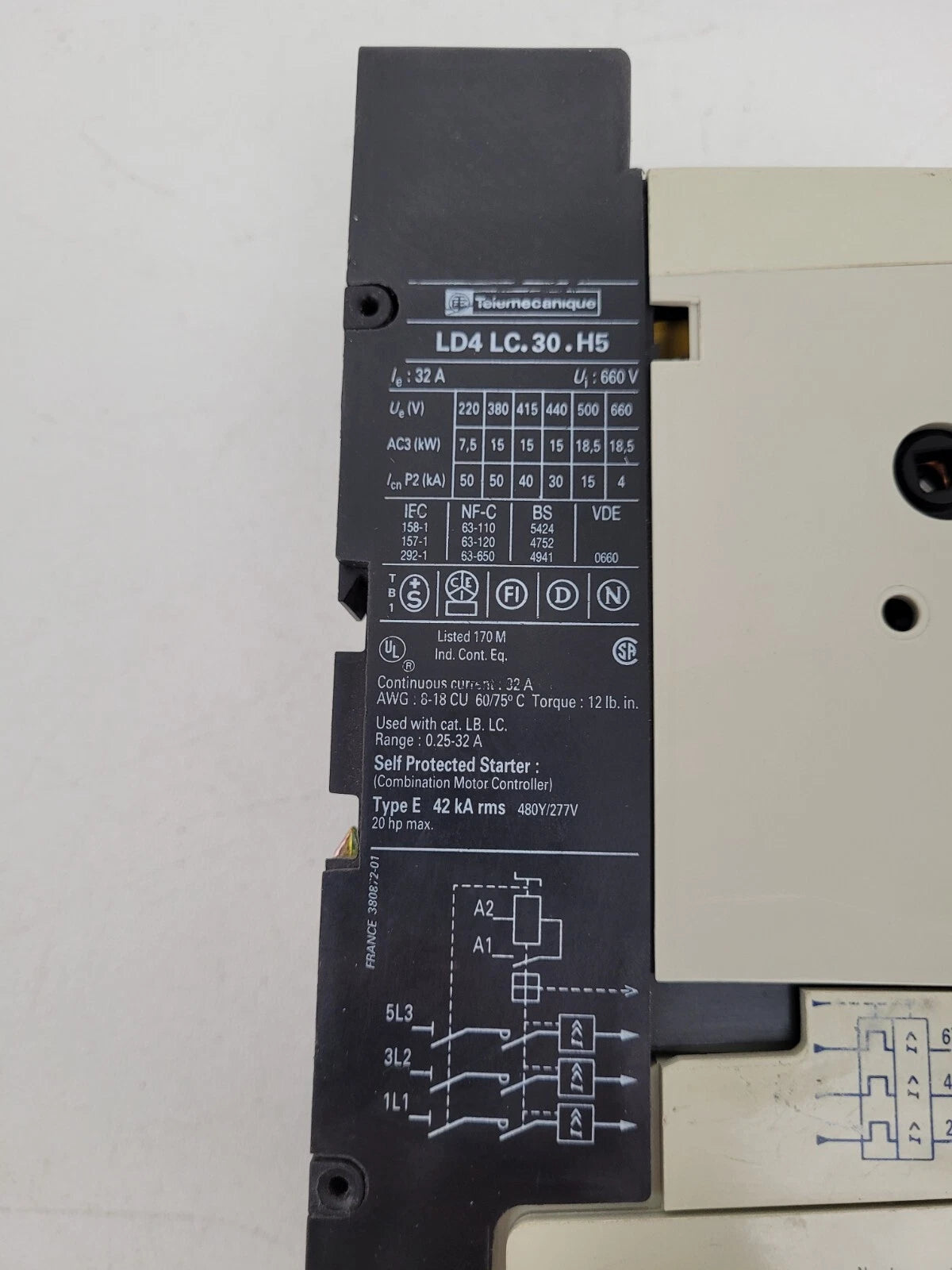

LD4LC30H5 (Starter Module)

• Manufacturer: Schneider Electric / Telemecanique
• Type: Integral 32 motor starter (non‑reversing)
• Current rating: 32 A
• Voltage rating: Up to 600 V AC
• Coil voltage: Typically 100 V AC (varies by sub‑model)
• Poles: 3‑pole, 3‑phase
• Use case: Direct‑on‑line motor starting for motors up to ~30 HP depending on voltage

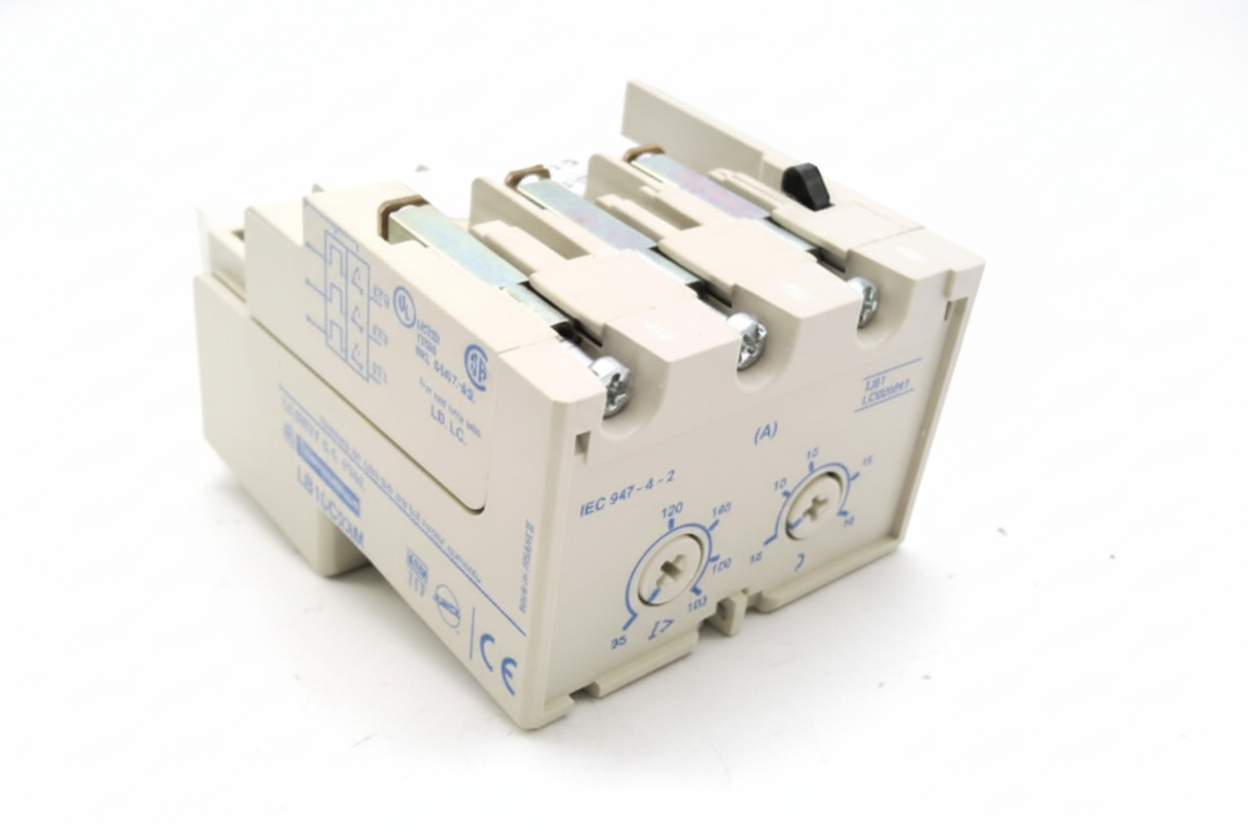

LB1‑LC03M17 (Protection Module)

• Manufacturer: Schneider Electric / Telemecanique
• Type: Thermal‑magnetic protection module (overload relay)
• Current range: 10–16 A adjustable
• Poles protected: 3 poles
• Motor power ratings:
• 3 kW at 220–240 V AC
• 7.5 kW at 400–440 V AC
• 10–11 kW at 480–690 V AC
• Trip characteristics: Magnetic tripping current 2.4–4.8 A (per IEC 60947 standards)
