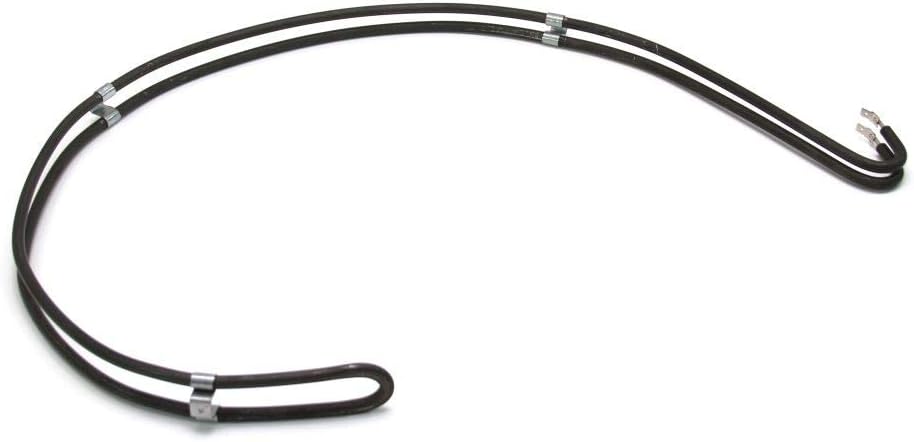

Rheem AS-58386-92 Furnace Heating Element Assembly, 3500 Watt @ 240V (OEM)

AS-58386-92 is a Rheem/Ruud/WeatherKing OEM sheath heater element, rated at 3.5 kW, used in electric furnaces and air handlers. It is a replacement heating element designed to provide efficient electric heat in HVAC systems.

🔧 Key Specifications

• Part Number: AS-58386-92
• Type: Sheath Heater / Heating Element
• Power Rating:
• 3,500 W at 240 V
• 4,700 W at 277 V
• Cold Resistance: 16.6 – 18.3 ohms
• Dimensions:
• Length: ~22.05 inches
• Width: ~16.40 inches
• Height: ~2.75 inches
• Weight: ~2.2 lbs actual
• Compatibility: Designed for Rheem, Ruud, and WeatherKing electric furnaces and air handlers

⚙️ Applications

• Provides electric heating in HVAC systems.
• Commonly used as a replacement part when the original heating element fails.
• Ensures efficient conversion of electrical energy into heat for residential and commercial heating units.

⚠️ Important Notes

• OEM Part: AS-58386-92 is a genuine factory-authorized part, ensuring compatibility and safety.
• Installation Warning: Should only be installed by qualified HVAC technicians. Incorrect installation can cause fire, electric shock, or property damage
