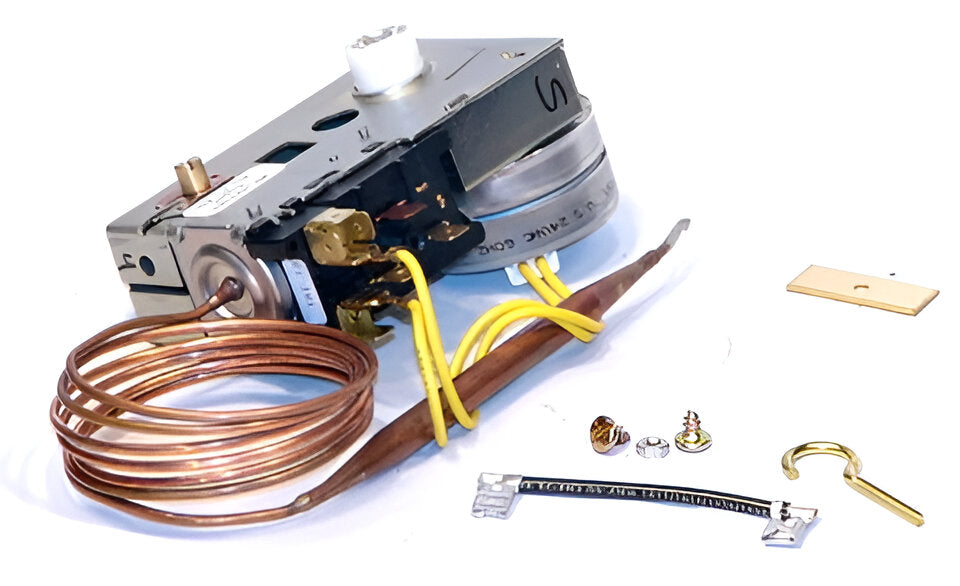

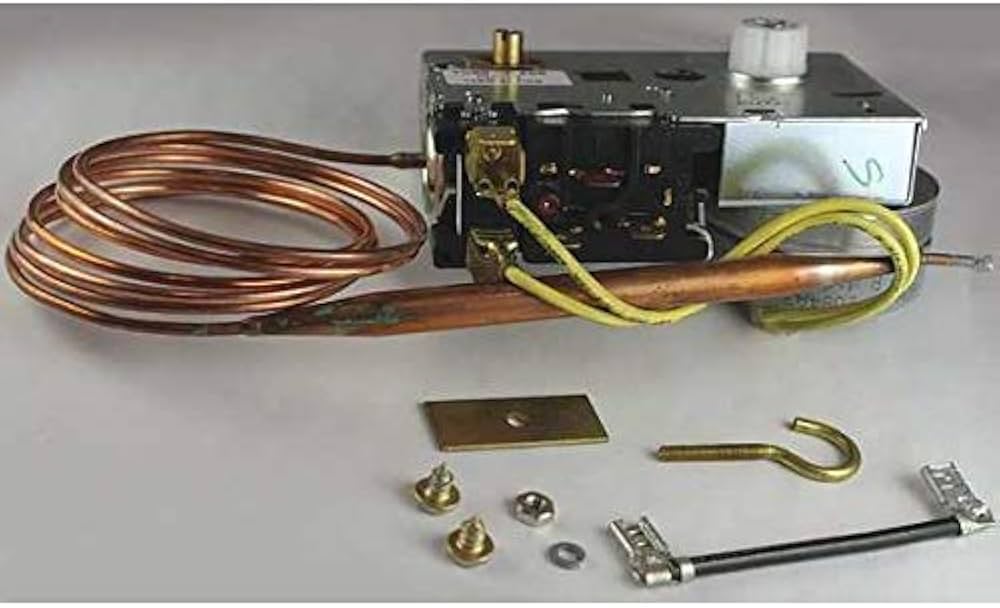

Ranco E15-256 Heat Pump De-Ice Control

The Ranco E15-256 is a timer-initiated heat pump de-ice control designed to provide field-adjustable timer control for de-icing heat pump outdoor coils.

Specifications

• Capillary Length: 54 inches

• Temperature Range: 55°F to 78°F

• Switch Action: SPDT (Single-Pole Double-Throw)

• Voltage: 24V

• Timing: Field-selectable: 30, 45, or 90 minutes

• Interlock: Prevents more than one defrost cycle per time period

• Temperature Differential: 7°F fixed, with a variance of ±4°F

• Weight: Approximately 3 pounds (1.36 kg)

• Dimensions: 4.15 inches (10.5 cm) x 8.8 inches (22.4 cm) x 3.05 inches (7.8 cm)

Features

• Field-Adjustable Timer: Allows customization of the defrost cycle timing.

• Interlock Mechanism: Ensures only one defrost cycle per time period, with a temperature requirement of 28°F or lower to start.

• Durable Construction: Laser-welded stainless steel sensing elements for longevity and reliability.

This control is ideal for HVAC systems requiring precise defrosting control to maintain optimal performance.
