Asco

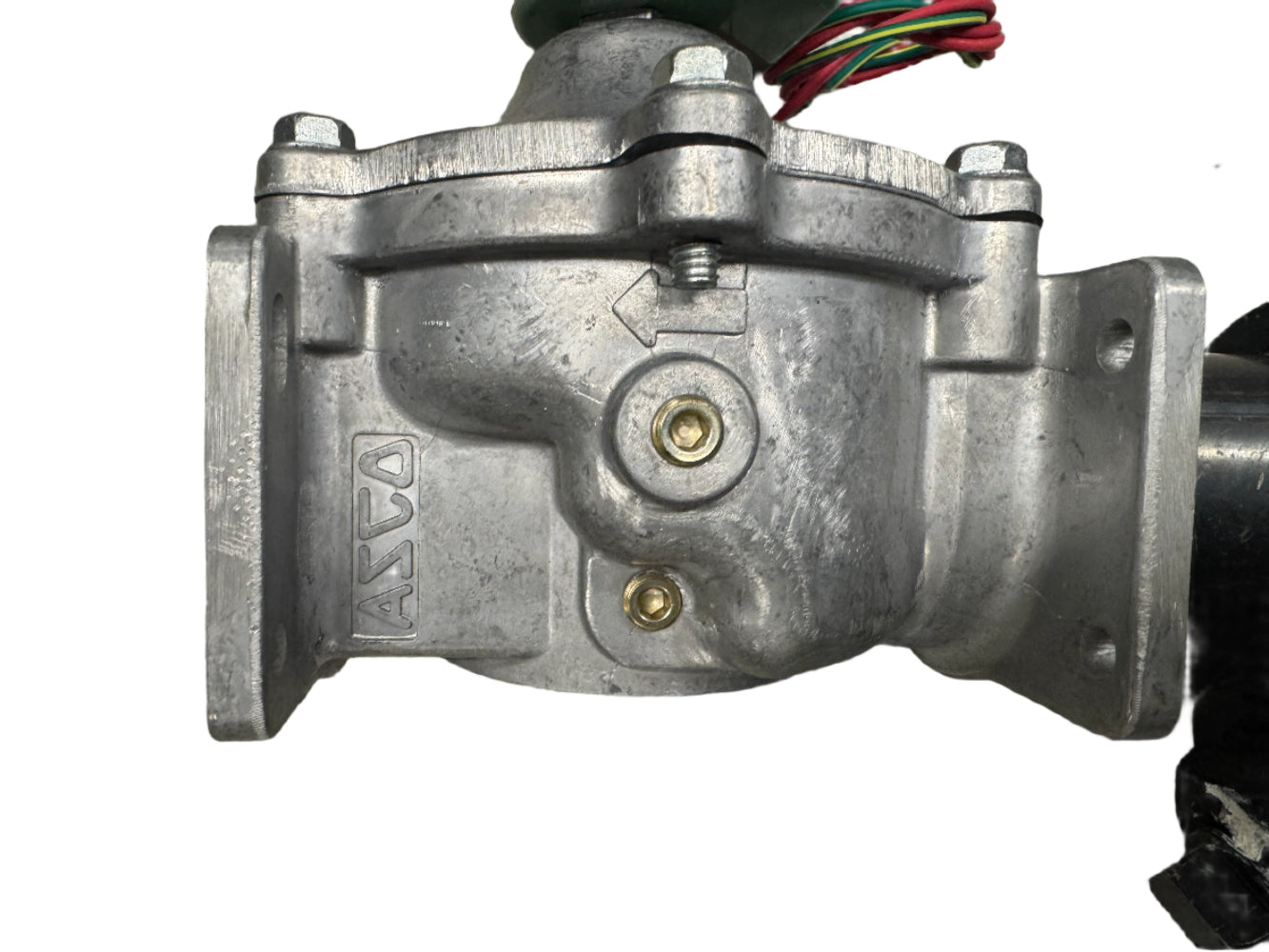

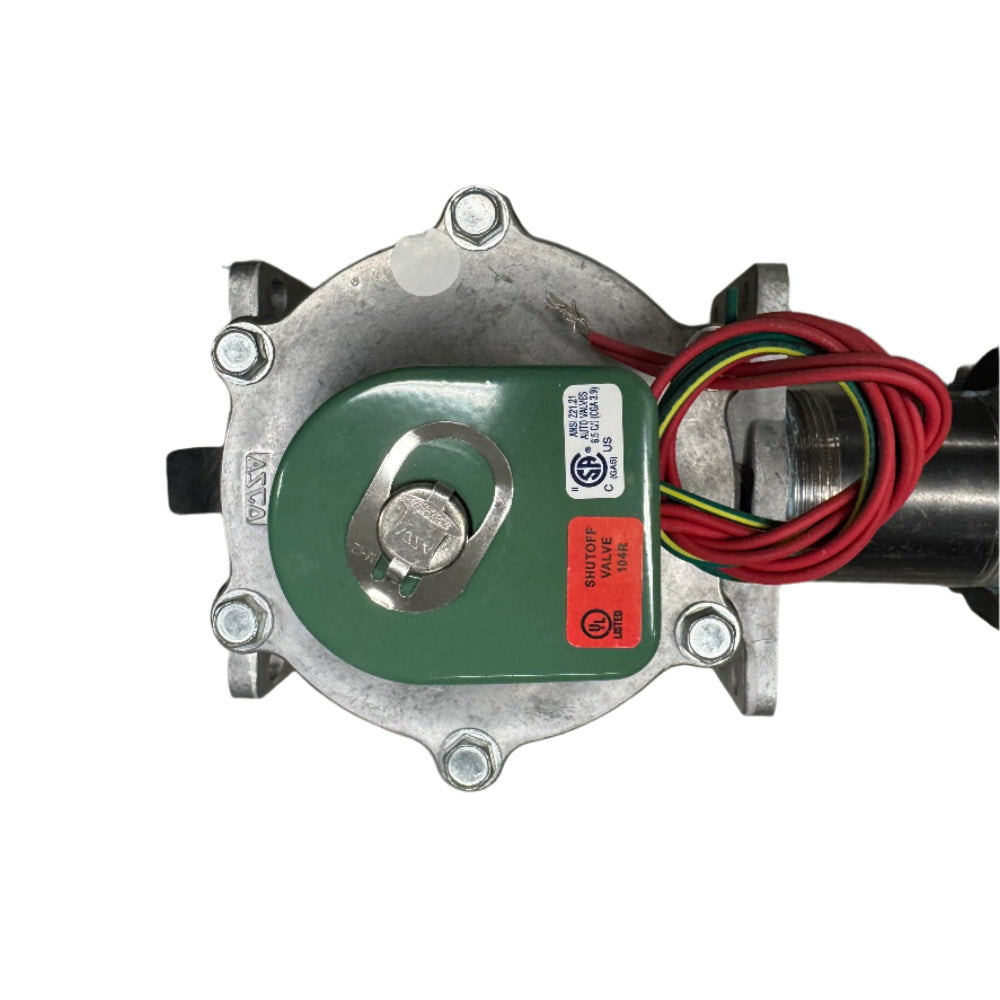

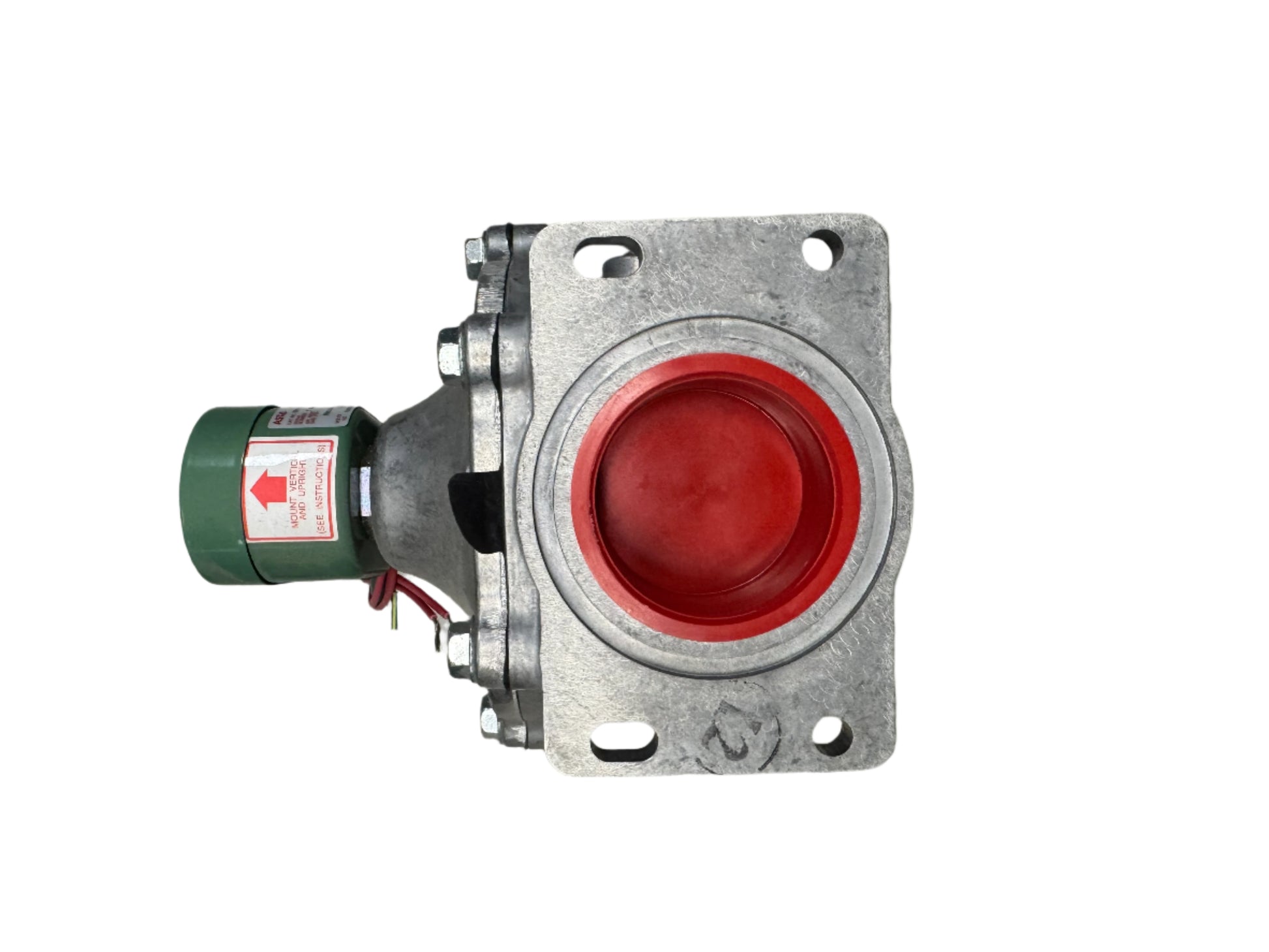

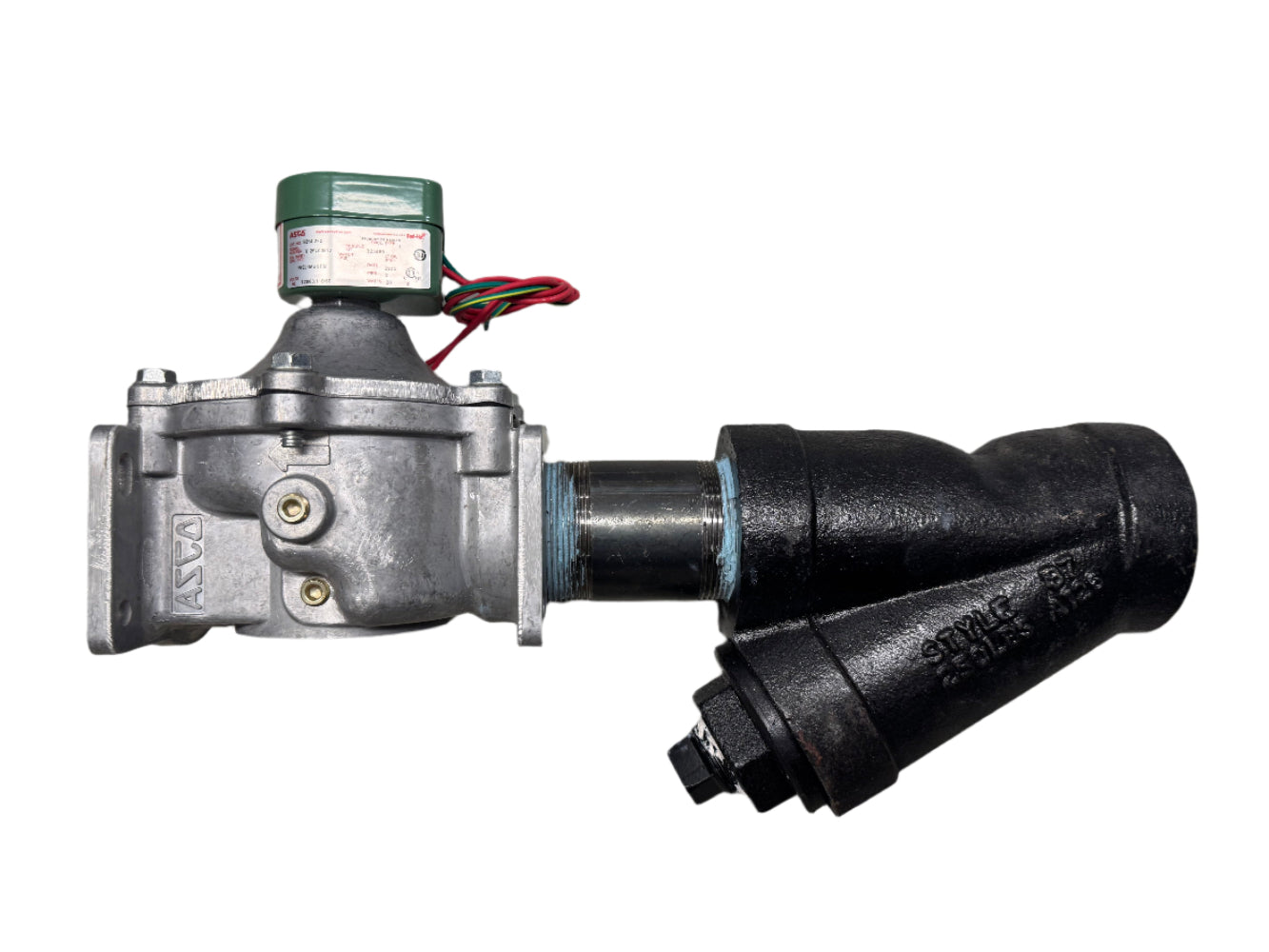

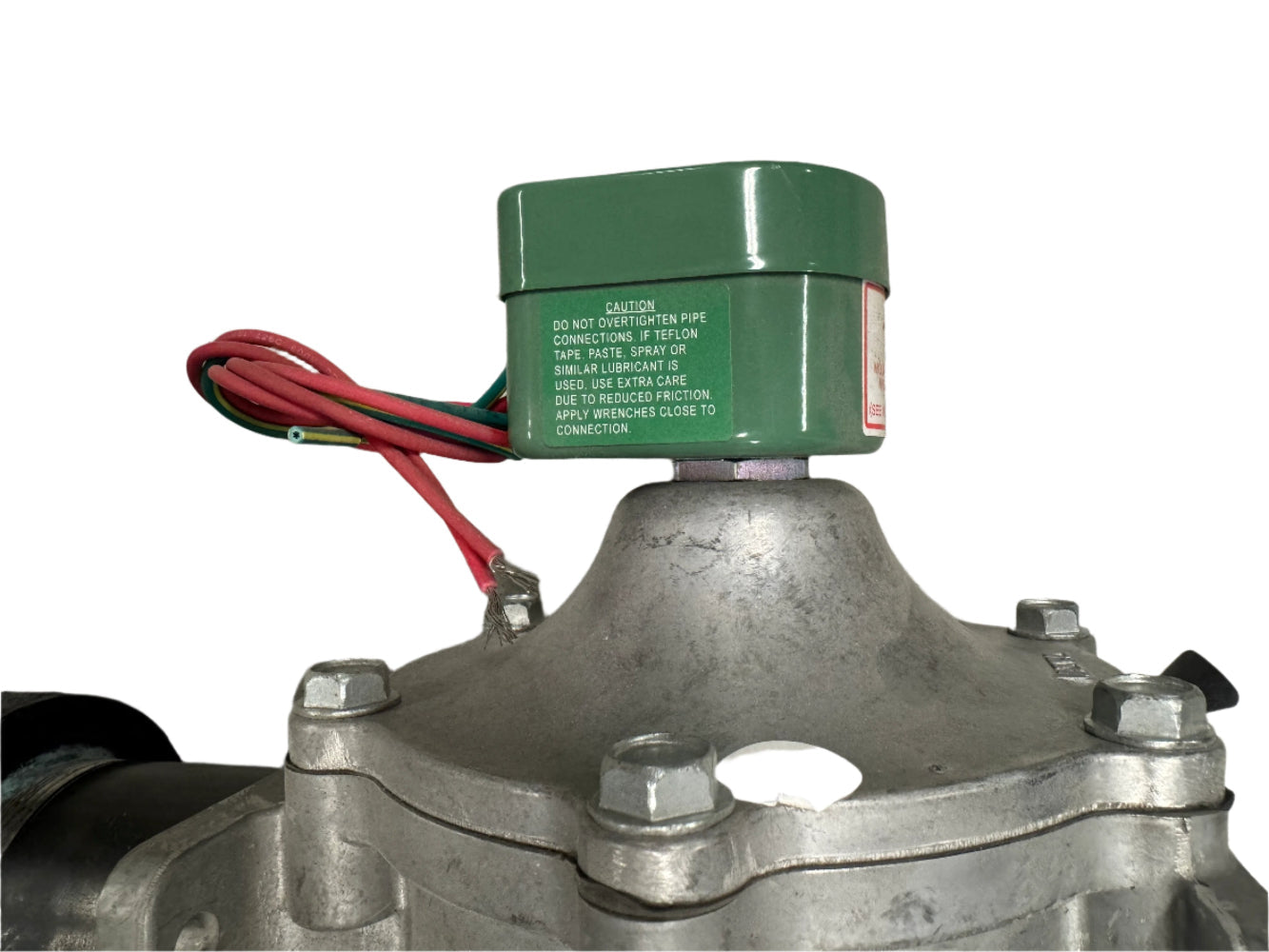

Asco Red Hat 8214280 High-Flow Fuel Gas Shut Off Solenoid Valve
Condition: New
Sale price:
$850.00
Regular price:
$1,200.00
Save 29%
(-29%)
Product details
Description
8214280CSAAC115/50D
Features
- Low pressure drop and extremely high flow capacity make the valve ideal in low gas supply pressure applications and locations
- Visual indication of open and shut position meets NFPA and FM requirements for visual indication
- Proof of closure switch meets agency/code requirements for an electrical interlock of valve closed position
- 1/8-inch NPT pipe taps with plugs provide easier routine testing
- Broad ambient range of -40?F to 140?F is ideally suited for frigid and hot environments
- Optional NPT threaded flange adapters allow direct piping that simplifies installation and maintenance
- Silicon-free constructions are available for painting/finishing applications
Specifications
Body Material Aluminum
Flow (Cv) 55.00
Valve Function 2 way - 2/2 Normally Closed
Media Fuel Gas
Pipe/Port Type & Size NPT 2
Voltage & Frequency 115 AC with 50 Hz
Kit Number 323499

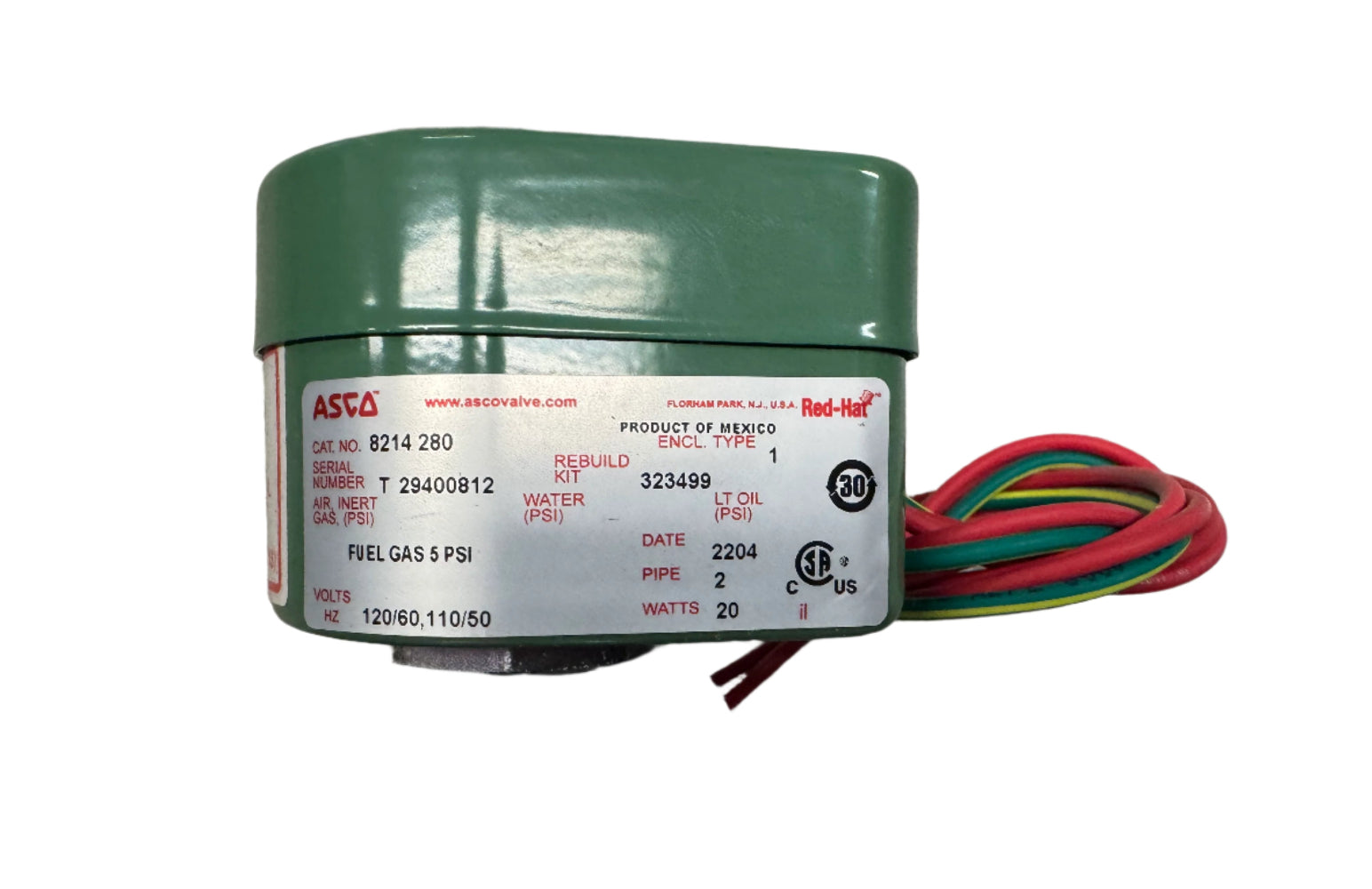

Coil Class FB
Coil Number 099257-001-D
Min to Max Ambient Temperature- 40 - 125 deg;F
Orifice Size 2 3/32 in
Watt Rating 20.0 W
Item Status Active
Lead Length 18 inch
Carton Note 2X2-3/32 2NC AL 20.0/F AC
Seating Elastomer NBR
