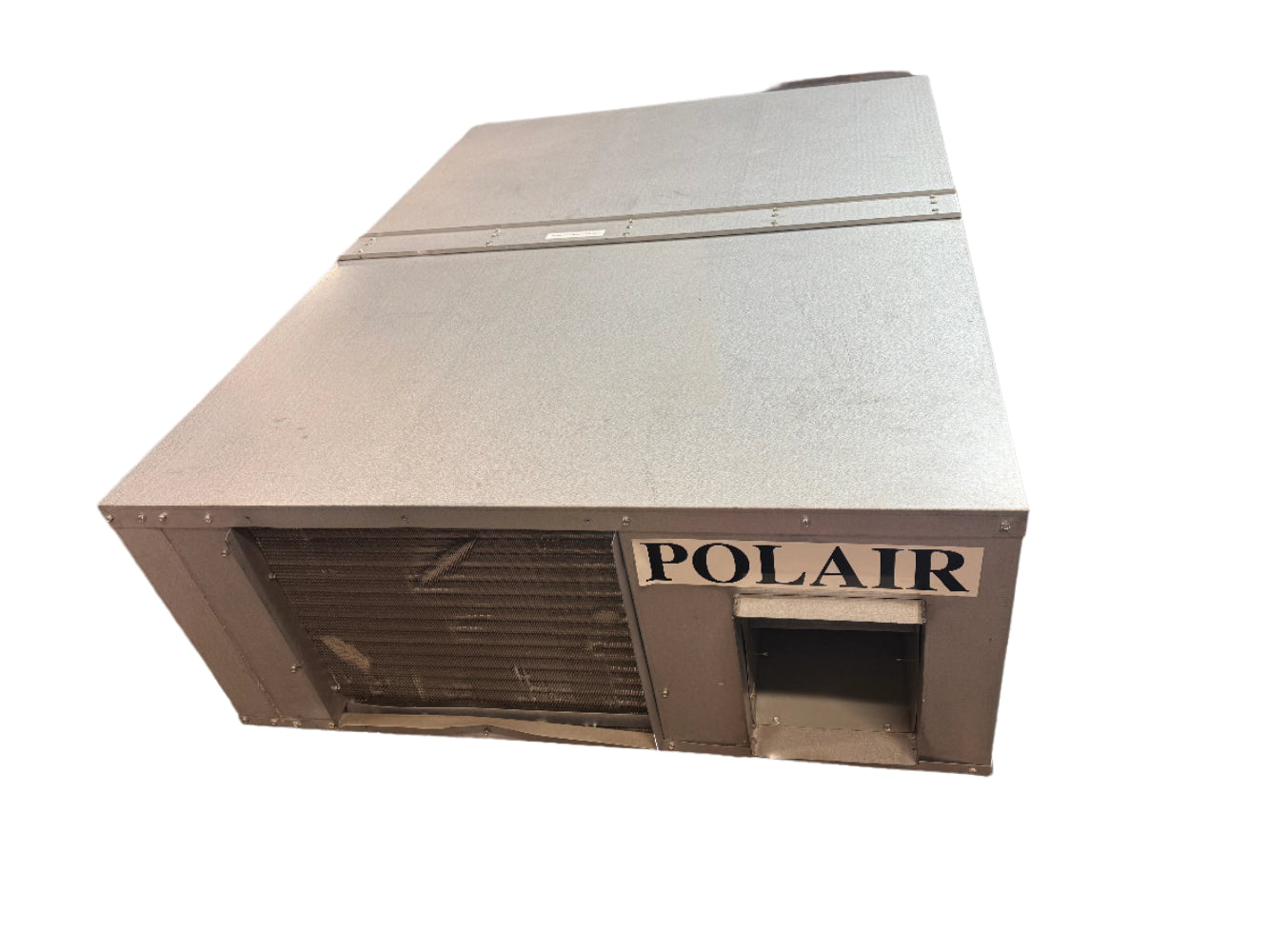

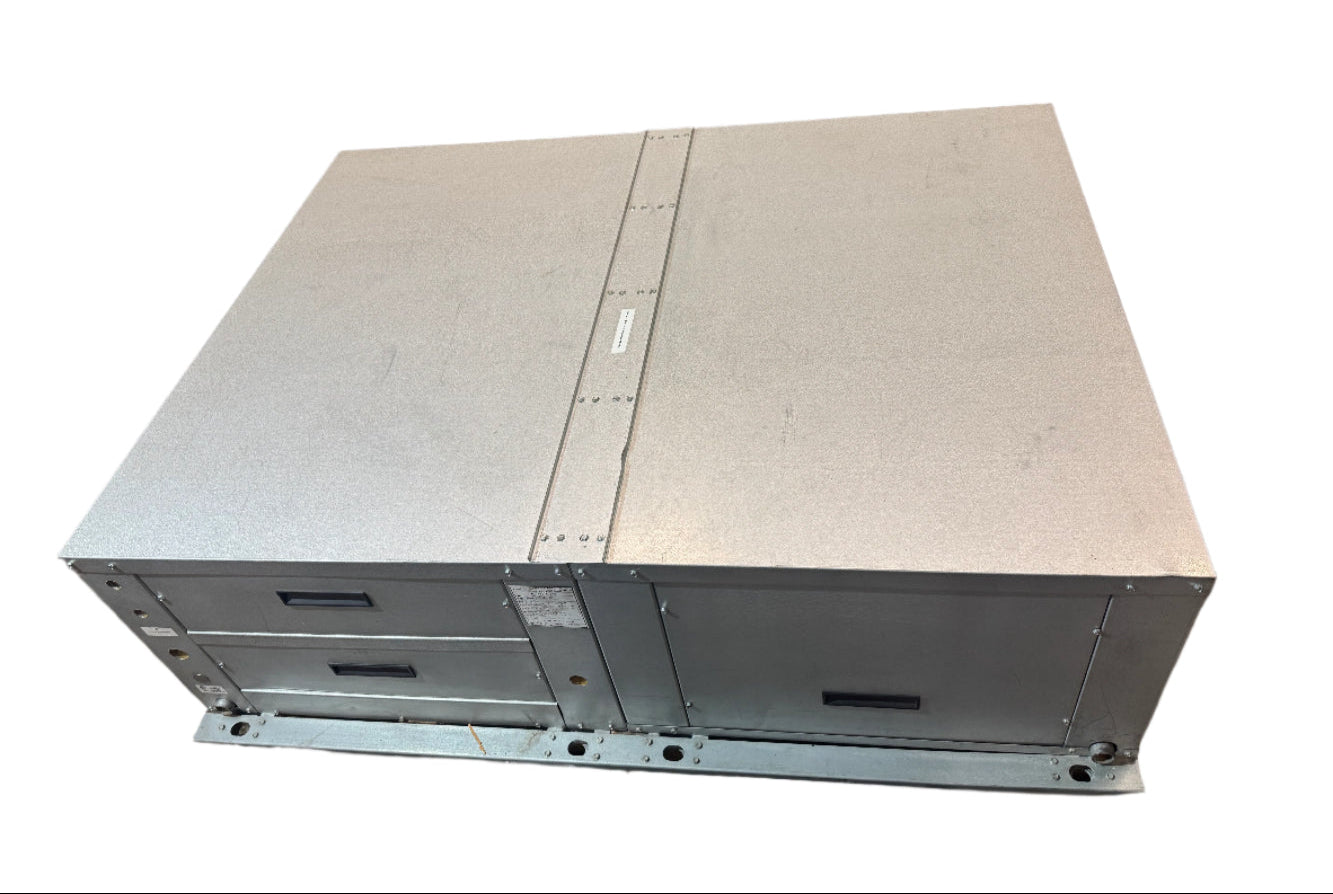

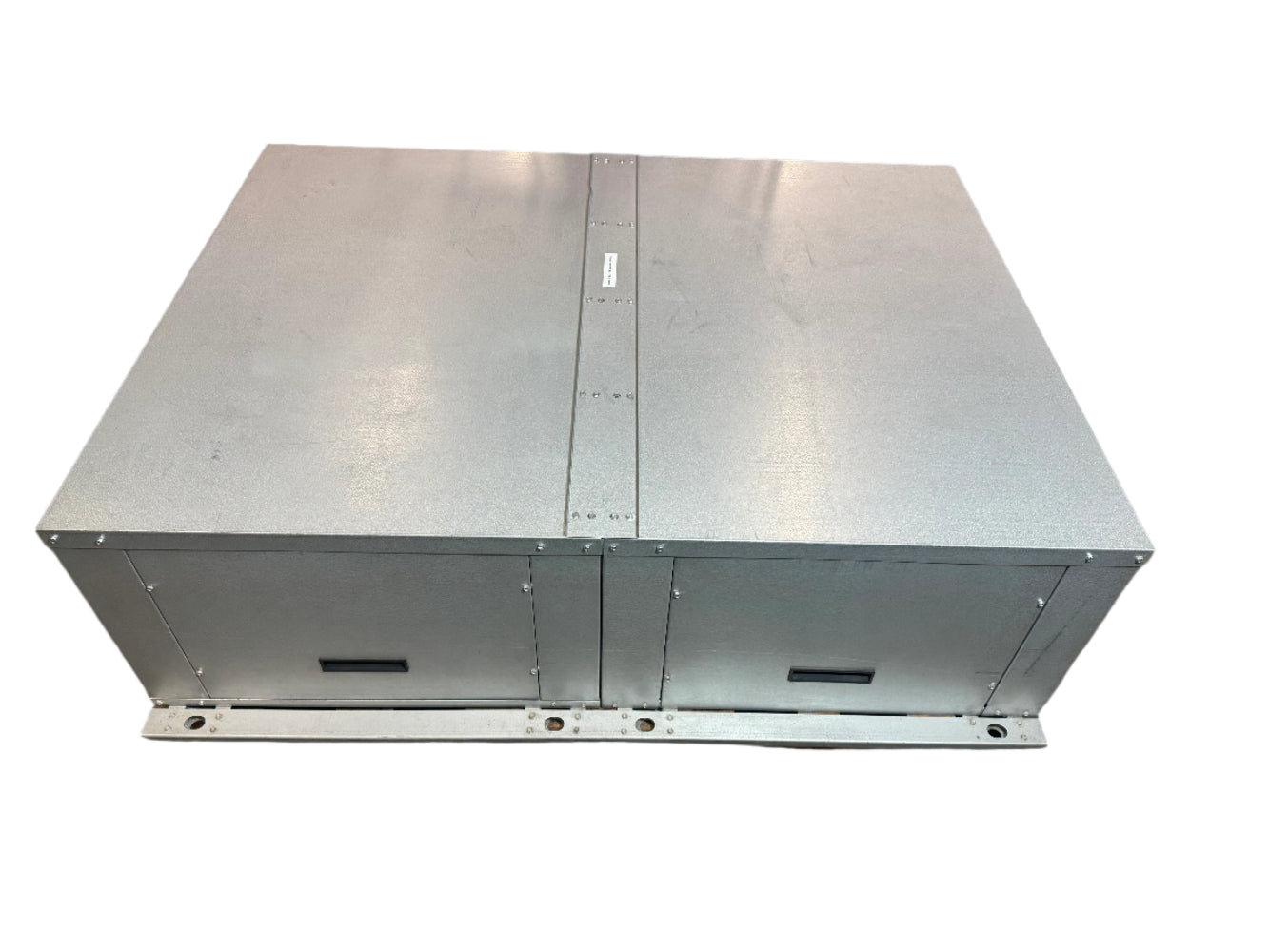

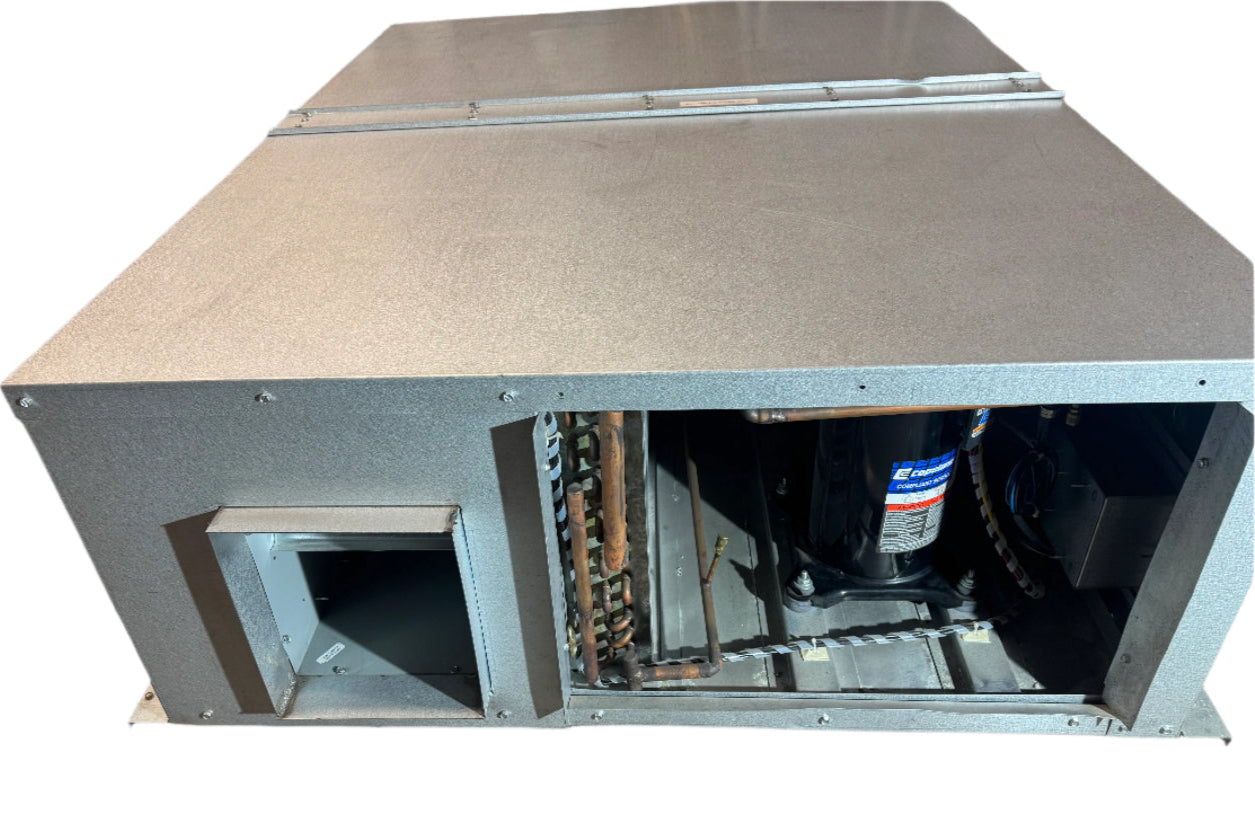

Polair PHAC024S3-2 2 Ton Indoor Horizontal Air Cooled Package Unit

The Polair PHAC024S3-2 2-Ton Horizontal Air-Cooled Package Unit is a premium choice for commercial HVAC applications, delivering superior performance and energy efficiency. This unit is designed to meet the demanding cooling requirements of businesses and industrial spaces while maintaining operational reliability and cost-effectiveness. Below are its standout features and technical specifications:

Key Features of the Polair PHAC024S3-2:

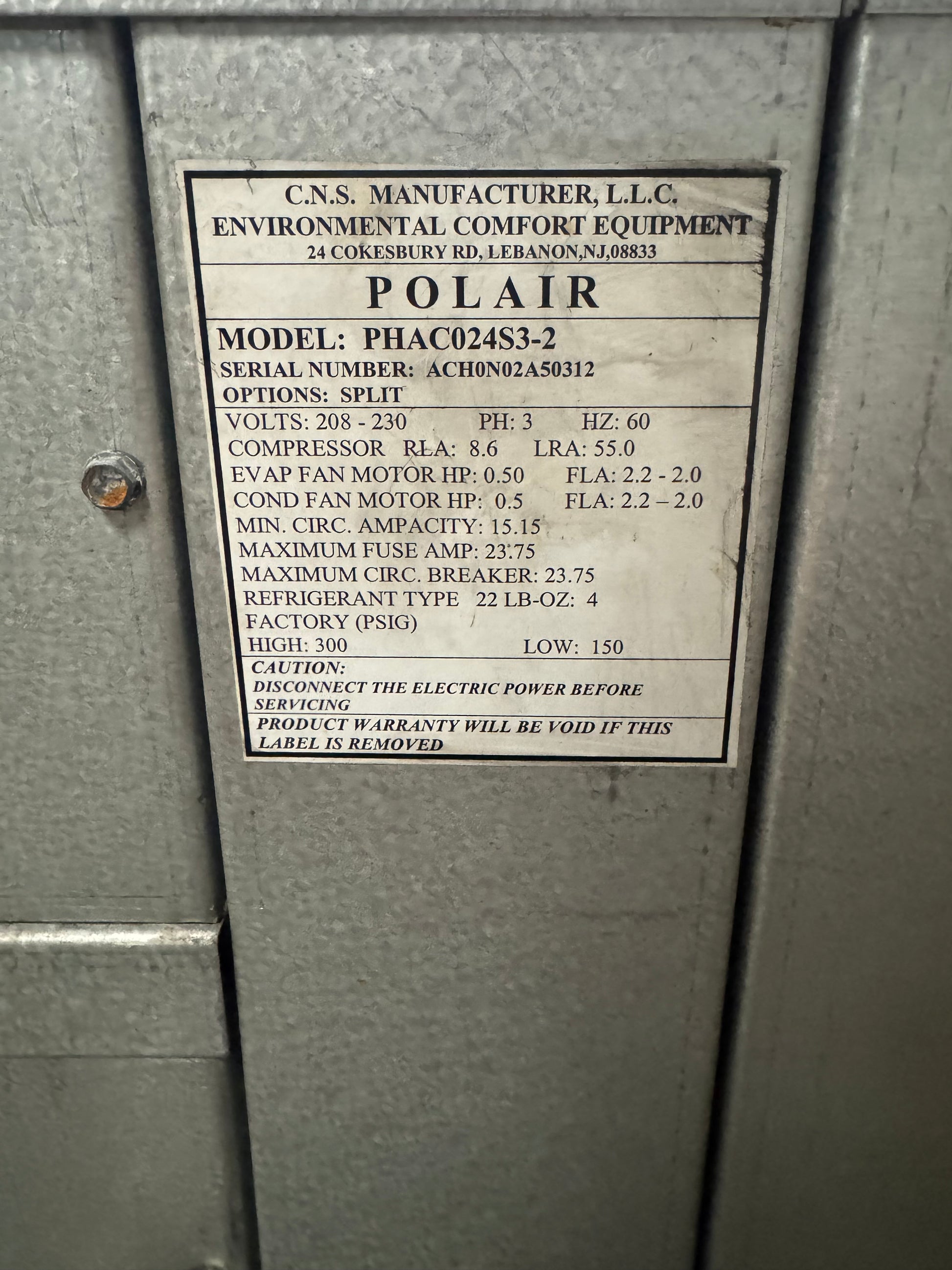

• Model: PHAC024S3-2
• Serial Number: ACHON02A50312
• System Configuration: Split system for versatile installation
• Voltage: 208-230V
• Phase: 3-phase power for stable and efficient operation
• Frequency: 60Hz

Performance Highlights:

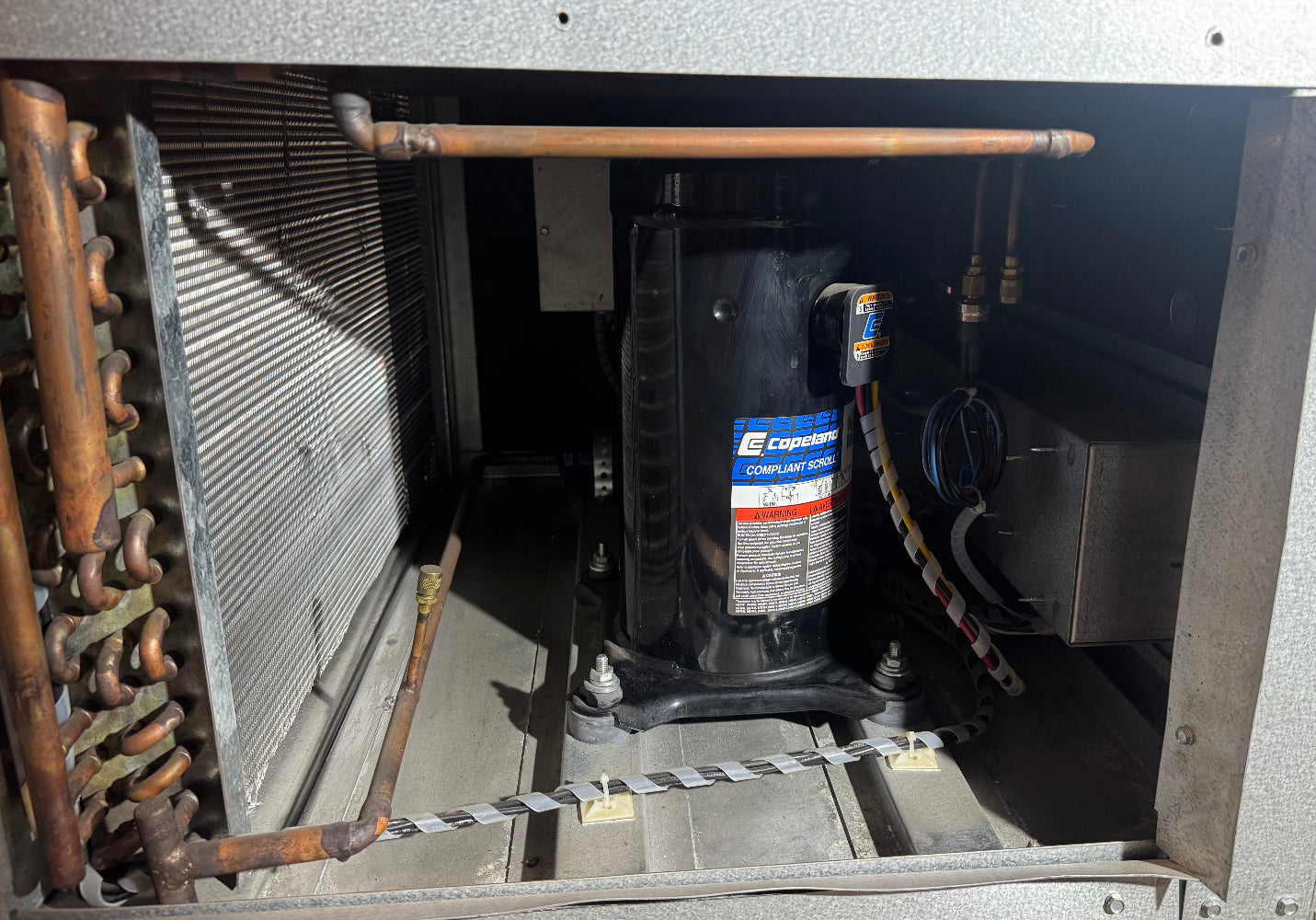

• Compressor Efficiency:
  • Running Load Amps (RLA): 8.6
  • Locked Rotor Amps (LRA): 55.0
• Dual Fan Motors:
  • Evaporator Fan Motor: 0.50 HP, Full Load Amps (FLA): 2.2-2.0
  • Condenser Fan Motor: 0.50 HP, Full Load Amps (FLA): 2.2-2.0
• Electrical Safety:
  • Minimum Circuit Ampacity: 15.15
  • Maximum Fuse and Circuit Breaker Amp Rating: 23.75

Refrigerant and Pressure Details:

• Refrigerant Options:
  • R-22 (4 LB-OZ)
  • R-407c for enhanced environmental compatibility
• Factory Pressure Settings (PSIG):
  • High: 300
  • Low: 150

Why Choose the Polair PHAC024S3-2?

1. Energy-Efficient Design: Featuring high-efficiency compressors and fan motors, this unit minimizes energy consumption without compromising cooling capacity.
2. Durable and Reliable: Engineered to withstand demanding environments with factory pressure settings that ensure consistent and optimized performance.
3. Flexible Installation: Its split system configuration adapts seamlessly to a wide range of commercial HVAC layouts.

The Polair PHAC024S3-2 is the ultimate solution for businesses looking to enhance their HVAC systems with a robust, efficient, and versatile air-cooled package unit. Whether you're upgrading an existing system or starting fresh, this unit offers the performance and reliability you need to stay cool.

Explore the Polair PHAC024S3-2 for your commercial HVAC needs today and experience unparalleled cooling performance!
