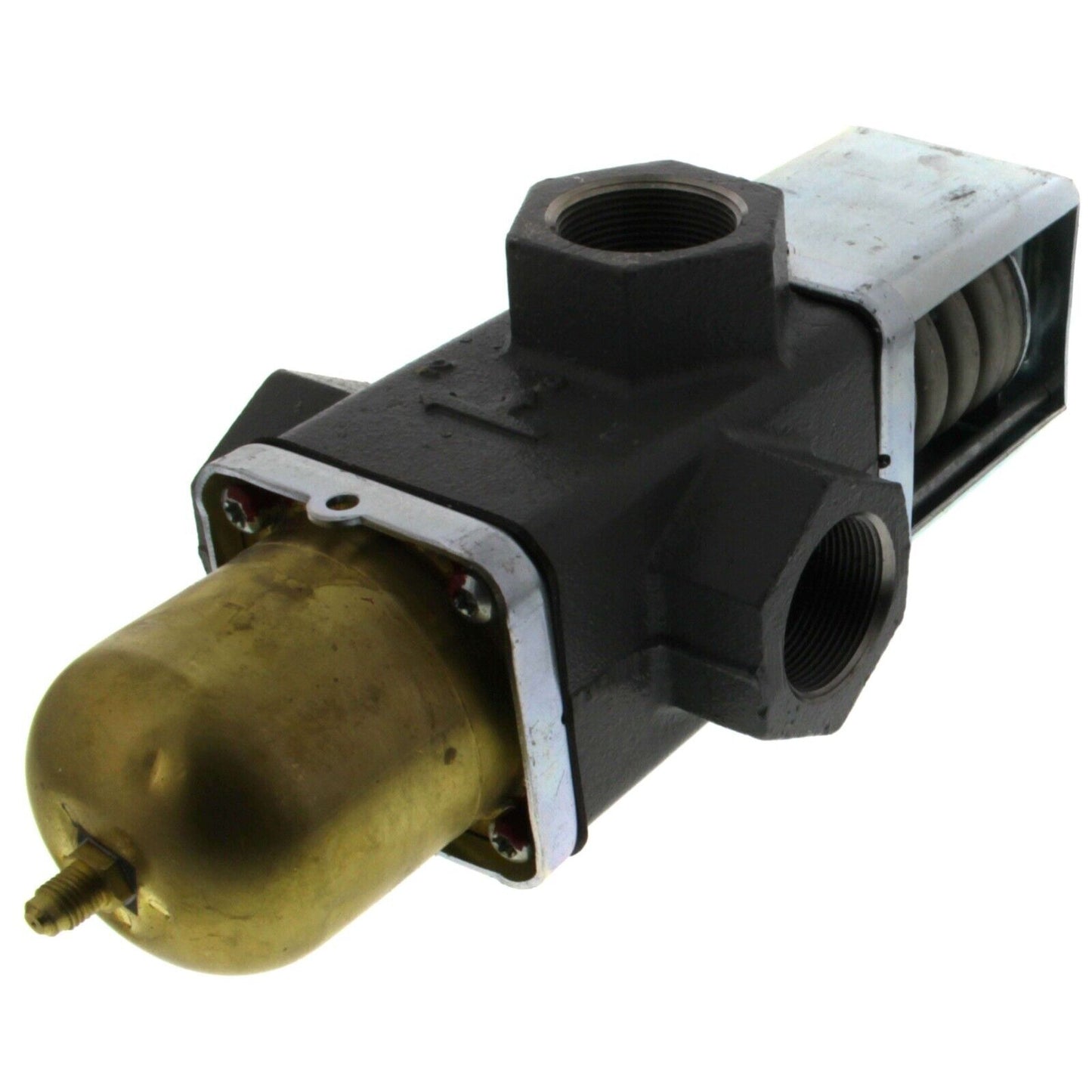

Penn V48AF-2 Three Way Pressure-Actuated Water Valve, 1-1/4" 145/190# R-22

Model: V48AF-2
Description: Three Way Pressure-Actuated Water Valve
Size: 1-1/4"
Operating Pressure Range: 145/190 psi for R-22

Features:

• Specifically designed for condensing units cooled by atmospheric or forced draft cooling towers.
• Used on single or multiple condenser hook-ups to the tower for economical and efficient use.

Specifications:

• Manufacturer: Johnson Controls
• Manufacturer Part Number: V48AF
• Product Series: V48
• Family Series: Johnson Controls HVAC Valves, V48 Series
• Pipe Size: 1.25 Inches
• Body Style: Three-Way
• Minimum Opening Point: 145 psi
• Maximum Opening Point: 190 psi
• Application: Non-Corrosive Refrigerants
• Inlet and Outlet: Threaded
• Pressure Connection: Capillary with 1/4 inch Flare
