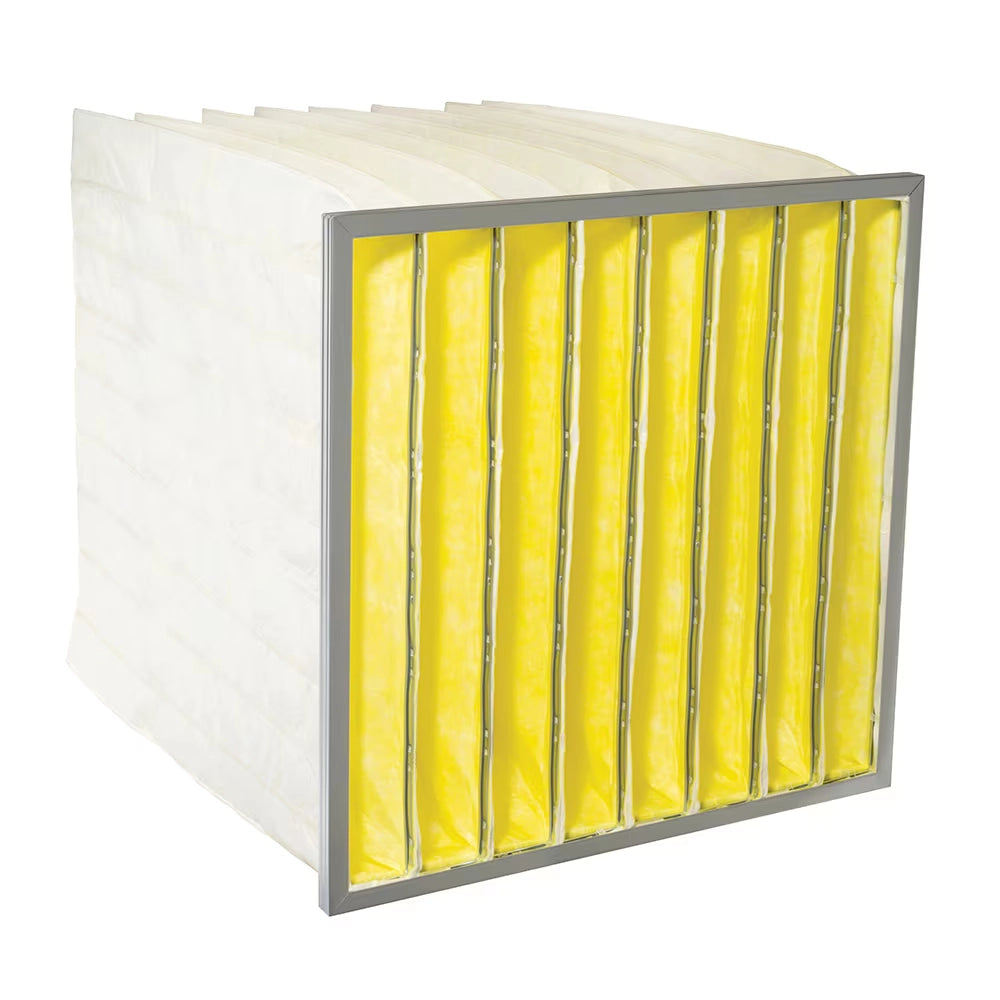

Parker CP-M15-242018-06 Clean-Pak High-Efficiency Synthetic Bag Filters LOT of 4
Parker CP-M15-242018-06 Clean-Pak High-Efficiency Synthetic Bag Filters LOT of 4
Couldn't load pickup availability
The Clean-Pak™ High-Efficiency Synthetic Bag Filters provide the best value in medium to high-efficiency filtration. A triple-layer of high-loft 100% synthetic media delivers maximum dirt holding capacity with low resistance. The media is unaffected by moisture or humidity. Pocket integrity is maintained by fabric ribbon separators welded inside the pockets which creates aerodynamic channels for smooth air flow and low resistance allowing air to flow smoothly through the filter.
Clean-Pak filters are available in a variety of sizes and pocket counts in MERV 16, 15, and 12 efficiency ratings per ASHRAE Standard 52.2-2017.
Width and height dimensions are not interchangeable. Bag filters must be installed with pockets running vertically.
Optional headers, gaskets, retainer covers, and pocket loops are available upon request.
Markets:
- Commercial and Industrial HVAC
- Process Air Filtration
- Automotive
- Food processing
- Microelectronics manufacturing
- Data centers
- Commercial office buildings
- Schools and universities
- Clean manufacturing facilities
- Hospitals and healthcare facilities
- Government institutions
- Industrial manufacturing
- Durable, corrosion-resistant header and pocket retainers
- Fabric ribbon separators welded inside the pockets create aerodynamic channels for smooth air flow and low resistance
Features:
- Filtration efficiency rating: MERV 16, MERV 15 and MERV 12 per ASHRAE Standard 52.2-2017
- Pocket depths (in.): 12, 15, 18, 22, 26, 29, 36
- Construction: Metal header with attached media pockets
- Materials of construction: Triple-layer of high-loft synthetic media with high-efficiency, melt-blown media layer, polypropylene fabric ribbon separators sonic welded inside the pockets controlling pocket inflation, and galvanized steel header and pocket retainers
- Maximum operating temperatures: 190°F (88°C)
- Classified per UL Standard 900 for Flammability
| Filter Efficiency Rating: | MERV 15 |
| Nominal Filter Size: | 20x24x18 (HxWxD) |
| Number of Pockets: | 6 |
| Brand: | Parker |
| Division: | HVAC Filtration Division |
| Industry: | HVAC and Refrigeration |
| Application: | Air Filtration |
| Technology: | Filtration |
| Product Type: | Bag Filters |
| Product Style: | HVAC Frame System |
| For Fluid Type: | Air |
| Model Number: | CP-M15-202418-06 |
| Actual Height: | 19.375 inch |
| Actual Width: | 23.375 inch |
| Actual Depth: | 18 inch |
| Weight: | 21 lb |
| Air Filter Frame/Header Type: | Galvanized Steel Header |
| Materials of Construction: | Galvanized Steel Header and Retainers |
| Filter Material: | Synthetic |
| Media Color: | White |
| Micron Rating: | ≥ 85% : 0.3 to 1.0 micron |
| Flow Rate: | 1670 CFM |
| Initial Resistance: | 0.28 in wg |
| Rated Air Velocity: | 500 ft/min |
| Maximum Operating Temperature: | 190 °F |
| Package Quantity: | 4 |
| Specifications Met: | Classified per UL Standard 900 for Flammability |
