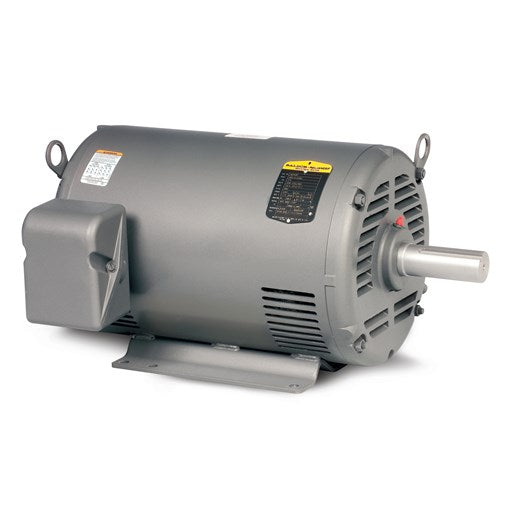

Baldor M3154T-8 200v 3Ph 1.5 HP RPM 1760 Motor

The Baldor M3154T-8 motor is a 1.5 HP, 3-phase, open drip-proof (ODP) motor designed for HVAC applications like fans, pumps, and compressors. It operates at 200V, 60Hz, and 1760 RPM.

⚙️ Technical Specifications
•     Catalog Number: M3154T-8
•     Specification Number: 35BG1-1267 (also referenced as 35B101M636H1)
•     Horsepower: 1.5 HP
•     Voltage: 200V
•     Current Draw: 5.5 Amps
•     Frequency: 60 Hz
•     Phase: 3-phase
•     Speed: 1760 RPM (synchronous speed 1800 RPM)
•     Frame Size: 145T
•     Enclosure Type: OPSB (Open Drip Proof with Shaft Down)
•     Mounting: Rigid base, F1 mounting
•     Insulation Class: B
•     Service Factor: 1.15
•     Efficiency at Full Load: 84%
•     Power Factor: 69%
•     Design Code: B
•     Ambient Temperature Rating: 40°C
•     Bearings: DE: 6205, ODE: 6203
•     Weight: Approximately 34 lbs

Sources:

🔧 HVAC Technician Considerations
•     Application Fit: This motor is ideal for HVAC systems requiring moderate power, such as small air handlers, exhaust fans, or circulation pumps.
•     Voltage Compatibility: Ensure your system supports 200V 3-phase power. It’s usable at 208V as well.
•     Mounting & Frame: The 145T frame with rigid base is standard for HVAC setups, making it easy to retrofit or replace.
•     Enclosure Type: ODP motors are best used in clean, dry environments. Avoid installing in areas with high moisture or dust.
•     Efficiency & Load: With 84% efficiency and a 1.15 service factor, it can handle slight overloads without overheating—great for variable load HVAC systems.
•     Bearings: Polyrex EM grease and standard ball bearings (6205/6203) make maintenance straightforward.
