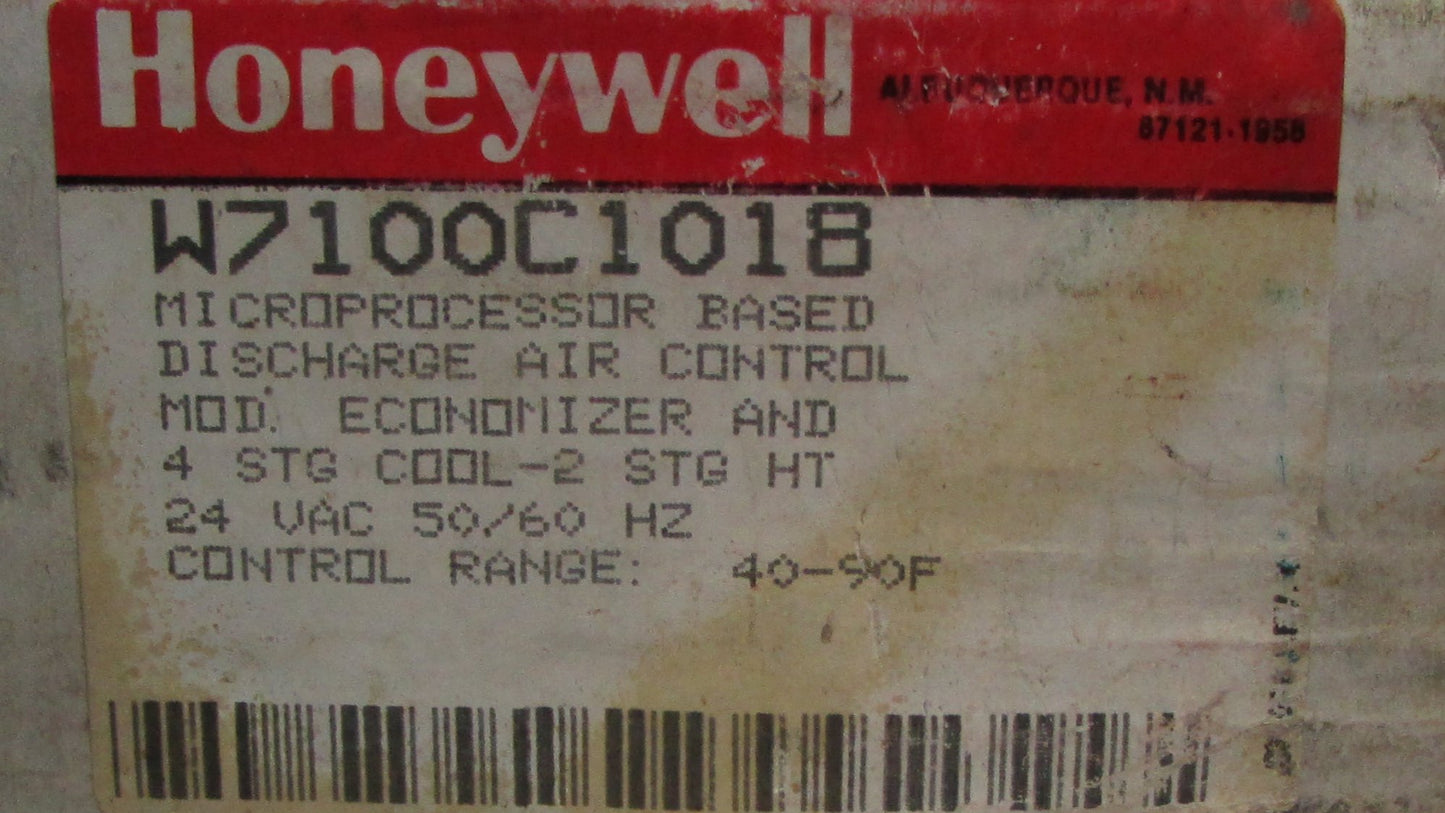

Honeywell W7100C1018 Microprocessor Discharge Air Temperature Controller

The W7100C1018 is a Honeywell discharge air temperature controller, designed for HVAC systems with 2 stages of heating and 4 stages of cooling, operating on 20–30 VAC. It maintains average discharge air temperature in variable air volume (VAV) systems by modulating economizers and sequencing mechanical heating/cooling stages.

🔧 Key Details

• Manufacturer: Honeywell
• Model: W7100C1018 (part of the W7100 family)
• Type: Discharge air temperature controller
• Application:
• Variable Air Volume (VAV) cooling systems
• Electric makeup air systems
• Other HVAC systems requiring staged heating/cooling discharge air control
• Stages:
• 2 heating stages
• 4 cooling stages
• Setpoint Range: 40–90 °F
• Supply Voltage: 20–30 VAC, 50/60 Hz
• Output Type: Staged On/Off
• Dimensions: Approx. 8.6" L × 6.5" W × 3" D
• Weight: ~2.5 lbs
• Status: Discontinued (December 2023)
