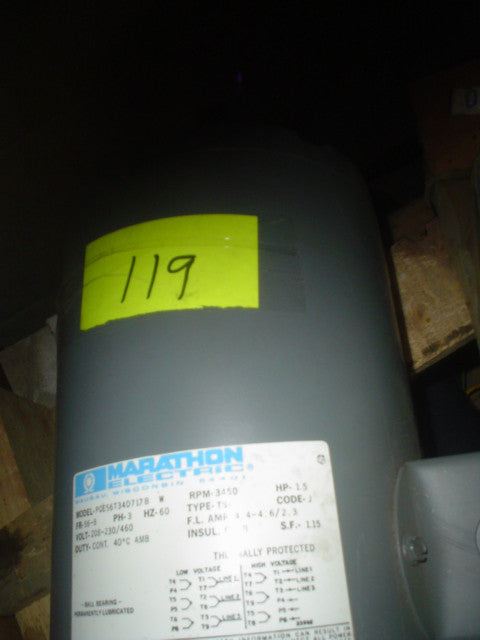

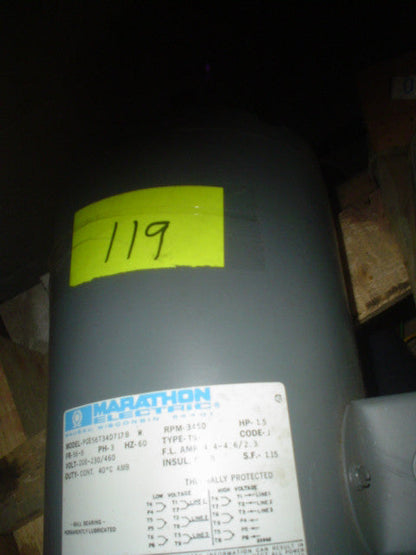

Marathon Electric PQE56T3413717A-W 1.5HP, 208-230/460V, 1PH, 3450 RPM, Motor

⚙️ Motor Details

• Manufacturer: Marathon Electric
• Catalog Number: PQE56T3413717A-W
• Serial Number: 3P11
• Horsepower (HP): 1.5 HP
• Voltage: 208–230/460 V (dual-voltage capable)
• Phase: Single-phase (1PH)
• Full Load Amps (FLA):
• 4.4–4.6 A @ 208–230 V
• 2.3 A @ 460 V
• Speed: 3450 RPM (synchronous speed for a 2-pole motor at 60 Hz)
• Frame Size: 56-8 (NEMA 56 frame, common for general-purpose motors)
• Shaft Dimensions: 2 1/4" length × 11/16" diameter
• Duty: Continuous duty (designed for long-term operation)
• Enclosure (likely): TEFC (Totally Enclosed Fan Cooled) or ODP (Open Drip Proof), depending on the exact build
• Insulation Class: Typically Class F (good thermal endurance)
