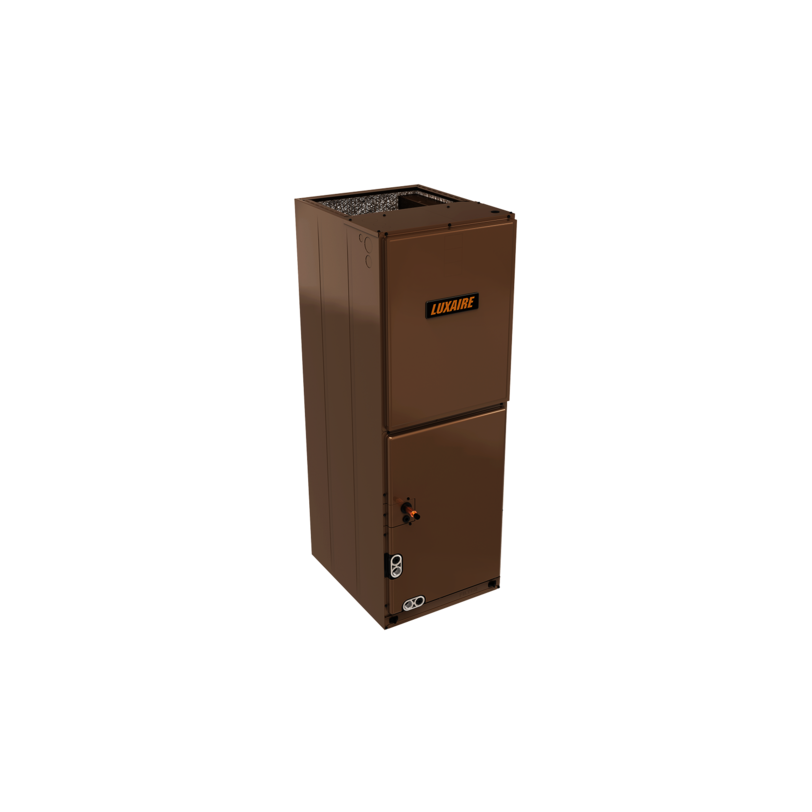

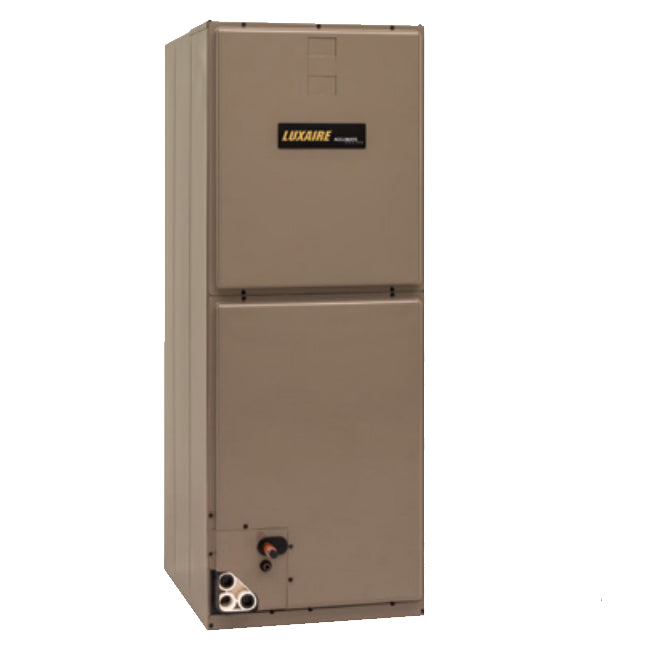

Luxaire JHETC48GBCS2N1 4 Ton 5-Speed ECM 2-Stage Capable Air Handler with BC TXV

Luxaire JHETC48GBCS2N1 4 Ton 5-Speed ECM 2-Stage Capable Air Handler with BC TXV

⚙️ Technical Specifications

• Cooling Capacity: 48,000 BTU/hr (4 tons)
• Airflow: 1600 CFM
• Voltage: 208/230V, single-phase
• Motor Type: Standard ECM (Electronically Commutated Motor)
• Frequency: 60Hz
• Horsepower: ¾ HP
• Fuse Size: Max 15A
• Refrigerant Compatibility: R-410A or R-22 (TXV metering device included)
• Connection Type: Sweat fittings
• Line Sizes:

• Liquid Line: 3/8"
• Suction Line: 7/8"

📐 Dimensions & Build

• Height: 61.25"
• Width: 21"
• Depth: 21.4375"
• Weight: 129 lbs
• Cabinet Size: C
• Slab Size: 3R-28-12
• Configuration: Single-piece, multi-position (upflow, downflow, horizontal left/right)
• Air Filter Rack: Accepts 1" disposable or cleanable filters (nominal size 20" x 20")

🌟 Features & Benefits

• Two-Stage Compatibility: Works with single or two-stage outdoor units
• DOE 2023 Compliant: Meets updated energy efficiency standards
• Low Air Leakage: Less than 2% at 1.0" esp for improved indoor air quality
• Drain Pan: Composite, low-water-retention design to reduce mold/bacteria risk
• Quiet Operation: Precision cabinet construction for reduced noise
• Easy Installation: Smooth sides, rigid case, and front-facing components for tight spaces
