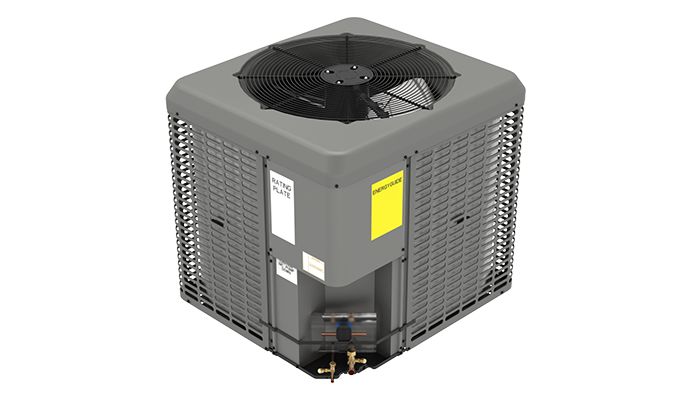

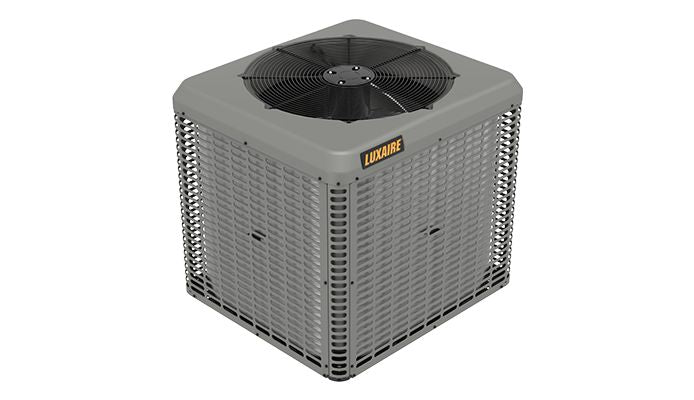

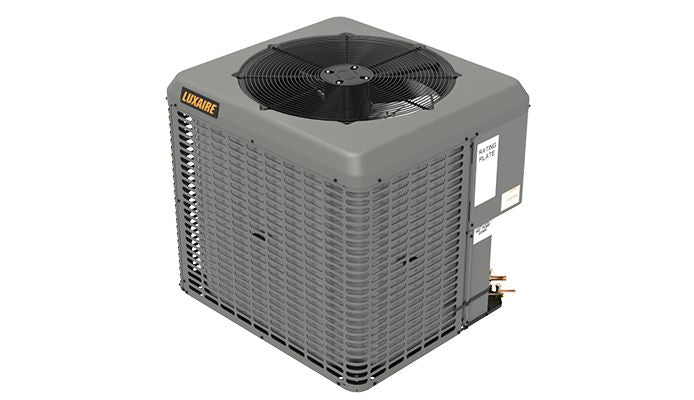

Luxair TCE2B48S21S 4 ton 15 SEER Single Stage Air Conditioner Cooling Condenser

Luxair TCE2B48S21S

Technical Specifications

• Cooling Capacity: 4 tons (approx. 48,000 BTU/hr)
• Efficiency Ratings:
• SEER2: 14.3
• EER2: Not explicitly listed, but aligns with DOE 2023 standards
• Refrigerant: R-410A
• Voltage: 208/230V, single-phase, 40A
• Refrigerant Line Sizes:
• Liquid line: 3/8"
• Suction line: 7/8"
• Dimensions:
• Height: 33¼"
• Width: 35¼"
• Depth: 31¾"
• Weight: 210 lbs

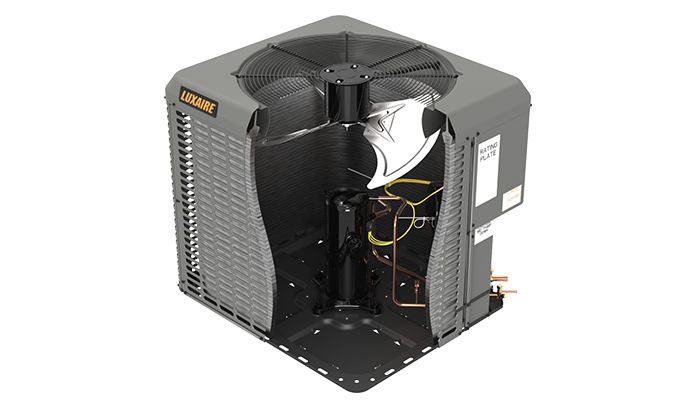

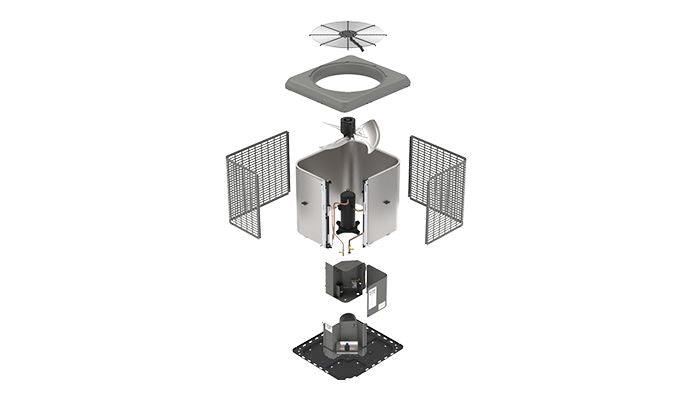

🔧 Design & Features

• Microchannel Coil: Improved alloy for high performance in compact space
• Sound Level: Operates at or below 76 dBA
• Top Discharge: Directs warm air upward, ideal for tight installations and multi-unit setups
• Service Access:
• Diagonal base valves for low-loss fittings
• Swing-out control box for full corner access
• Removable fan guard and single-panel access to electrical controls
• Durability:
• Steel-extruded louver coil guards
• G90-equivalent galvanized steel chassis
• Titanium-colored powder coat for corrosion resistance
• Compliance: Meets 2023 DOE efficiency requirements

This unit is engineered for southern U.S. climates, with a compact footprint and quiet operation.
