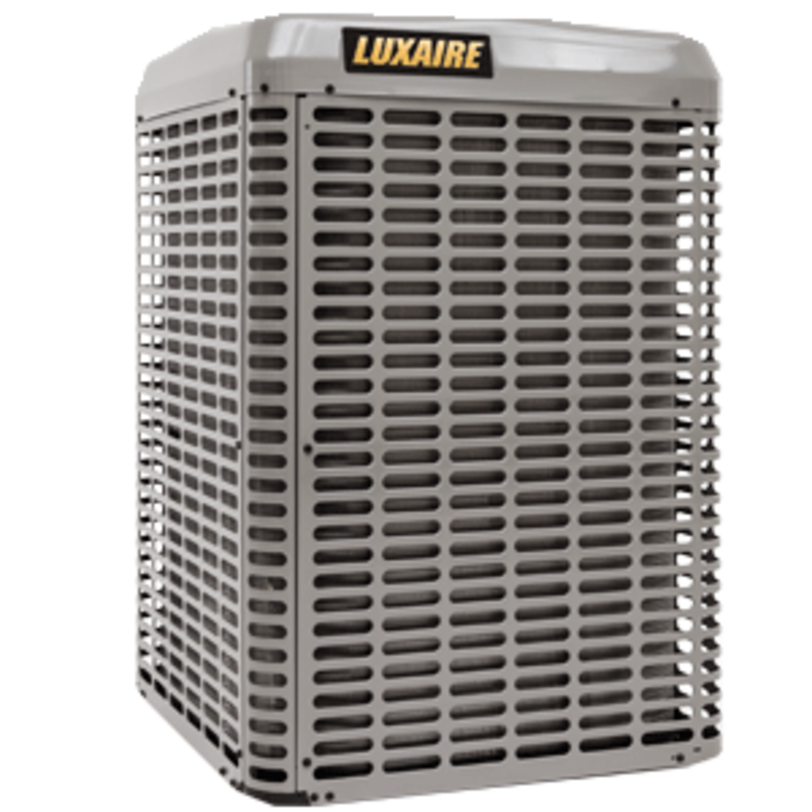

Luxair TC4B4222S 3.5 Ton 14 SEER Split System Air Conditioner Cooling Condenser

Luxaire TC4B4222S LX Split System Air Conditioner, 3.5 ton Cooling, 208 to 230 VAC, 1 ph, 60 Hz, 14 SEER

❄️ Cooling Performance

• Capacity: 3.5 Tons (≈ 42,000 BTU/h)
• Efficiency: 14 SEER (Seasonal Energy Efficiency Ratio)
• Compressor Type: Single-stage scroll
• Refrigerant: R-410A (eco-friendly, non-ozone depleting)

⚙️ Electrical & Mechanical Specs

• Voltage: 208–230V, 1 Phase, 60 Hz
• Fuse Size: 40 amps
• Motor: 1/4 HP, 850 RPM
• Refrigerant Line Sizes:

• Liquid Line: 3/8 inch
• Suction Line: 7/8 inch

📦 Physical Dimensions

• Height: 36.25 inches
• Width: 29.25 inches
• Depth: 29.25 inches
• Weight: 215 lbs
• Airflow: 3,275 CFM

🌟 Features & Certifications

• Microchannel Coil: Improved alloy design for compact performance
• Louvered Coil Guard: Steel-extruded protection against debris and damage
• Durability: Proven in 5-year accelerated wear testing
• Certifications: AHRI Certified, UL 1995, CSA 22.2

This unit is optimized for warm climates and compact installations, making it a solid choice for residential cooling.
