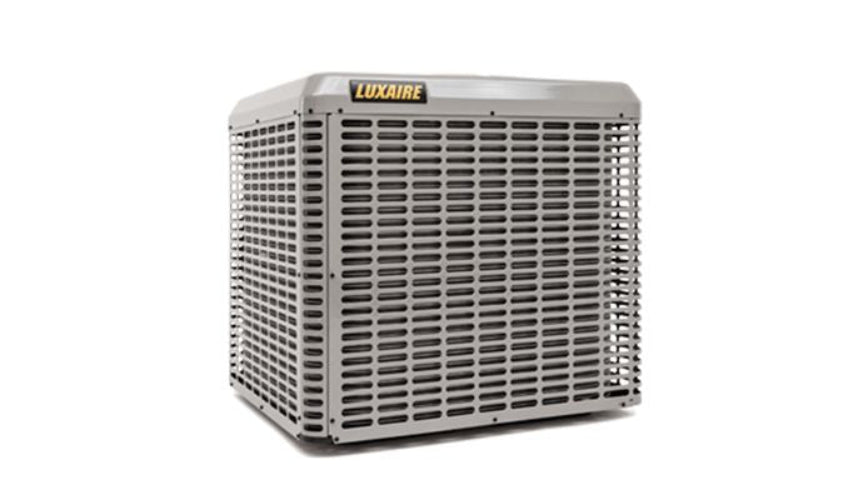

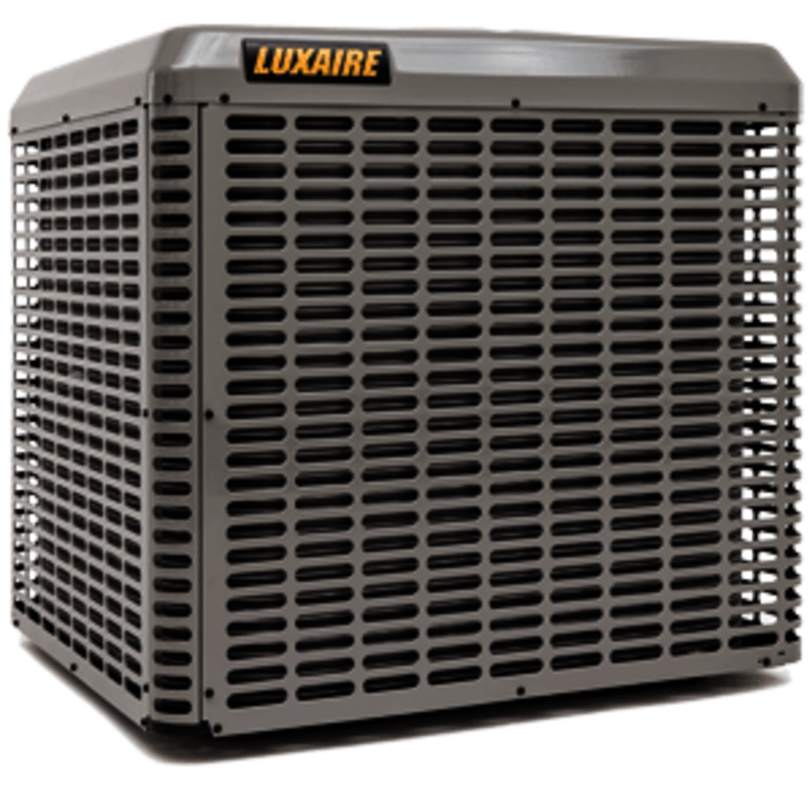

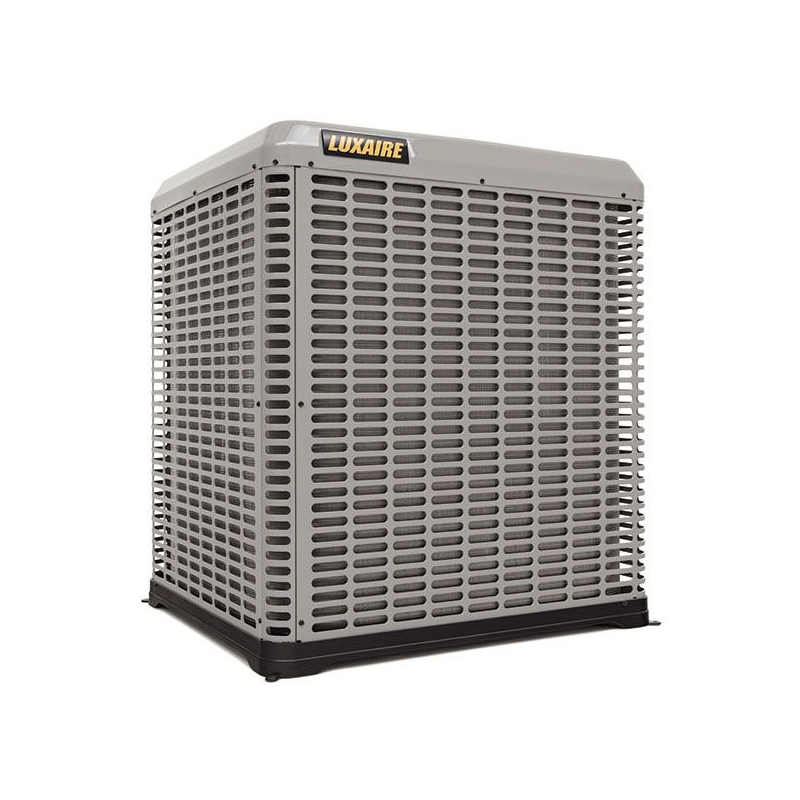

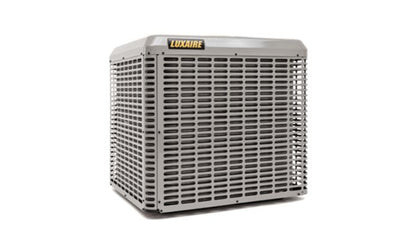

Luxair TC17B2421S 2 Ton 17 SEER 2 Stage Split Condenser Cooling AC

Luxaire TC17B2421S split system air conditioner:

❄️ Cooling Performance
•     Capacity: 2 Tons (≈ 24,000 BTU/h)
•     Efficiency: 17 SEER (Seasonal Energy Efficiency Ratio)
•     Compressor Type: Two-stage scroll
•     Refrigerant: R-410A (environmentally friendly, zero ozone depletion)

⚙️ Electrical & Mechanical Specs
•     Voltage: 208–230V, 1 Phase, 60 Hz
•     Refrigerant Line Sizes:
•     Liquid Line: 3/8 inch
•     Suction Line: 3/4 inch
•     Fan Motor: ECM (Electronically Commutated Motor) for variable speed and quiet operation
•     Coil Type: Tube-in-fin aluminum coil with copper tubing

📦 Physical Dimensions
•     Height: 39.5 inches
•     Width: 38 inches
•     Depth: 34.25 inches
•     Weight: 195 lbs
•     Footprint: Compact design for tight installation spaces

🌟 Features & Benefits
•     ENERGY STAR® Certified: Meets high-efficiency standards
•     Swept-Wing Fan Design: Reduces noise and improves airflow
•     Louvered Coil Guard: Protects coil from debris and damage
•     Durable Finish: Powder-coated for corrosion resistance
•     Smart Thermostat Compatibility: Works with Luxaire® Hx™ and Hx™3 touchscreen thermostats

This unit is ideal for residential or light commercial applications where energy efficiency and quiet operation are priorities
