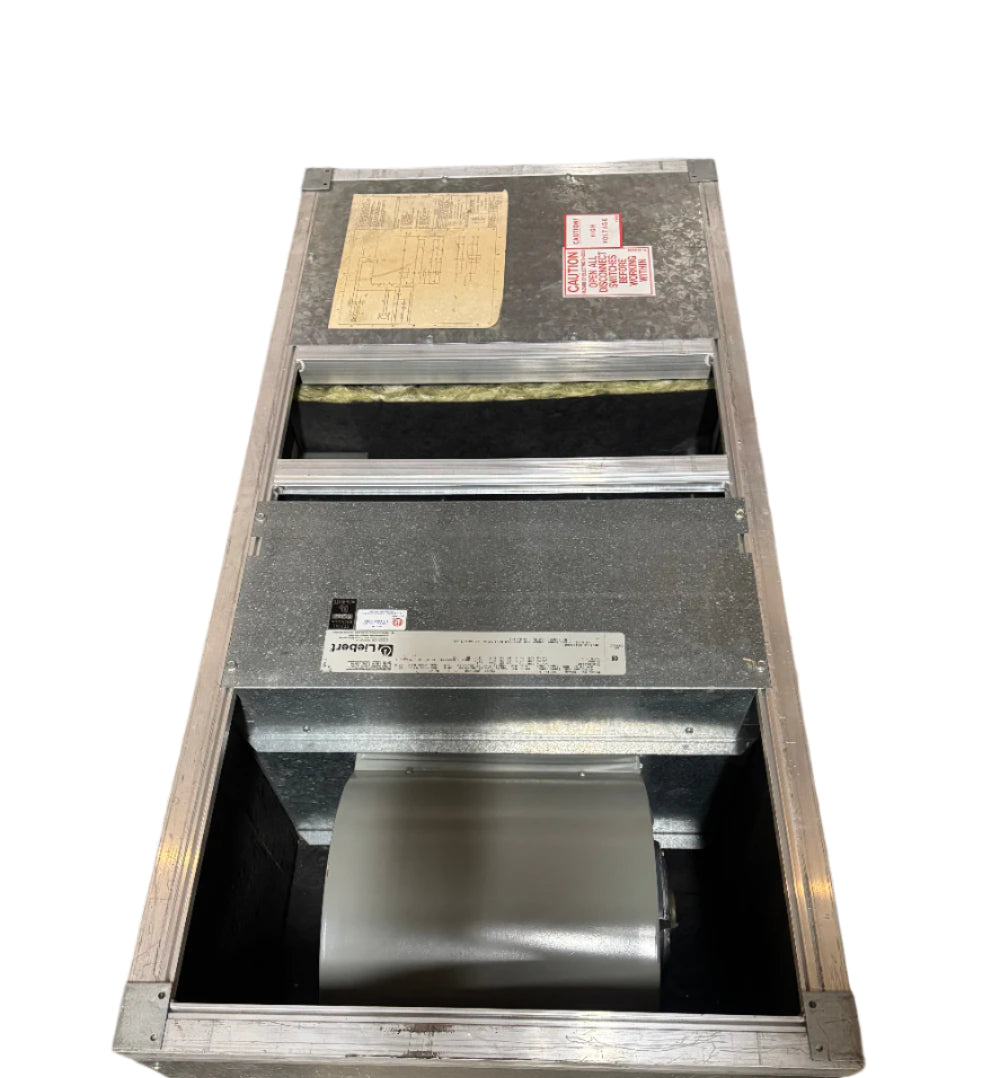

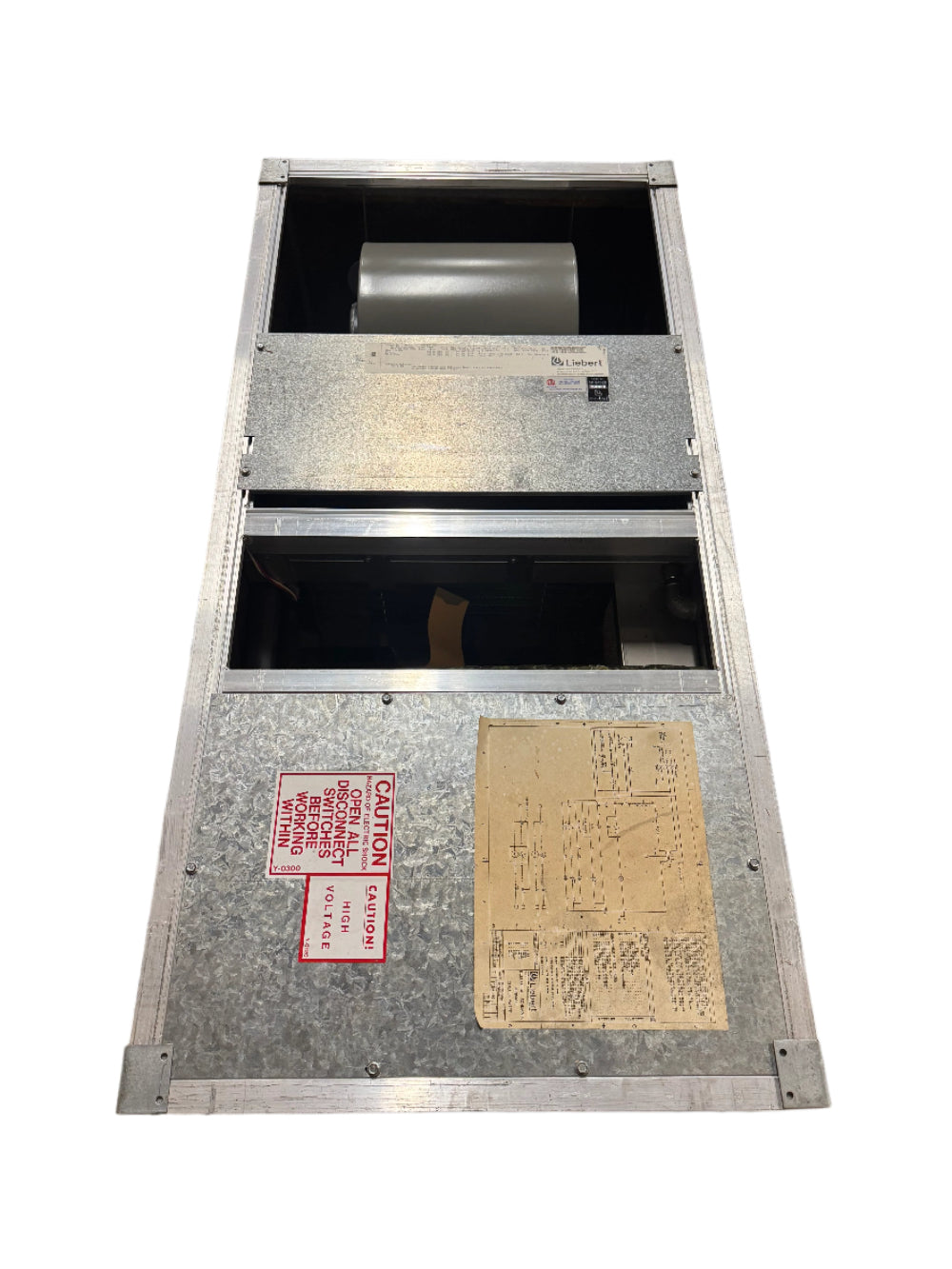

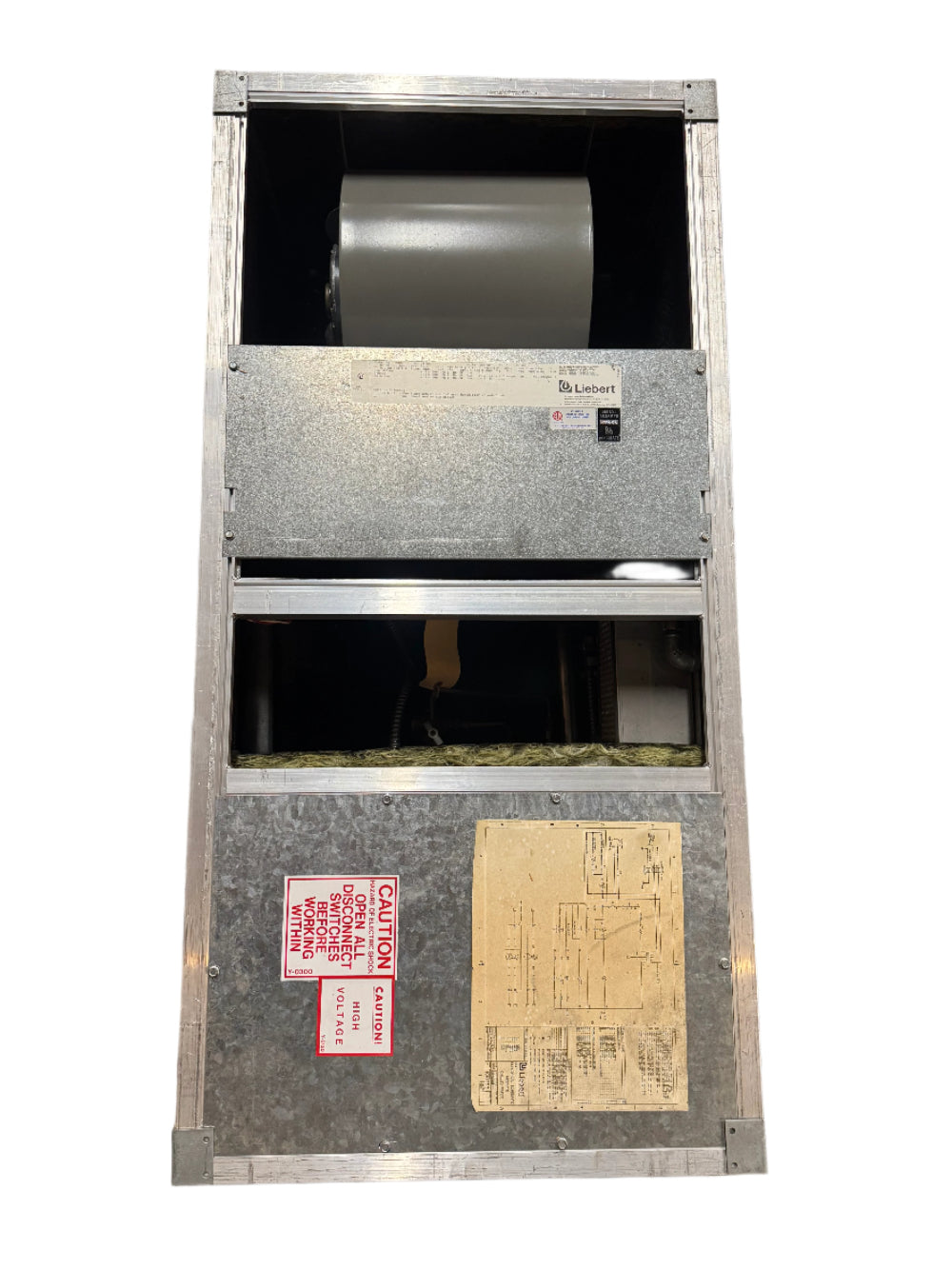

Liebert MM23C 2 Ton Mini-Mate Chilled Water Unit

Liebert MM23C 2 Ton Mini-Mate Chilled Water Unit:

Model Overview

The Liebert MM23C is a high-efficiency chilled water unit designed to provide precise cooling for critical applications such as computer rooms, data centers, and other environments that require stringent temperature and humidity control. With a compact, ceiling-mounted design, it offers a zero-footprint solution that saves valuable floor space.

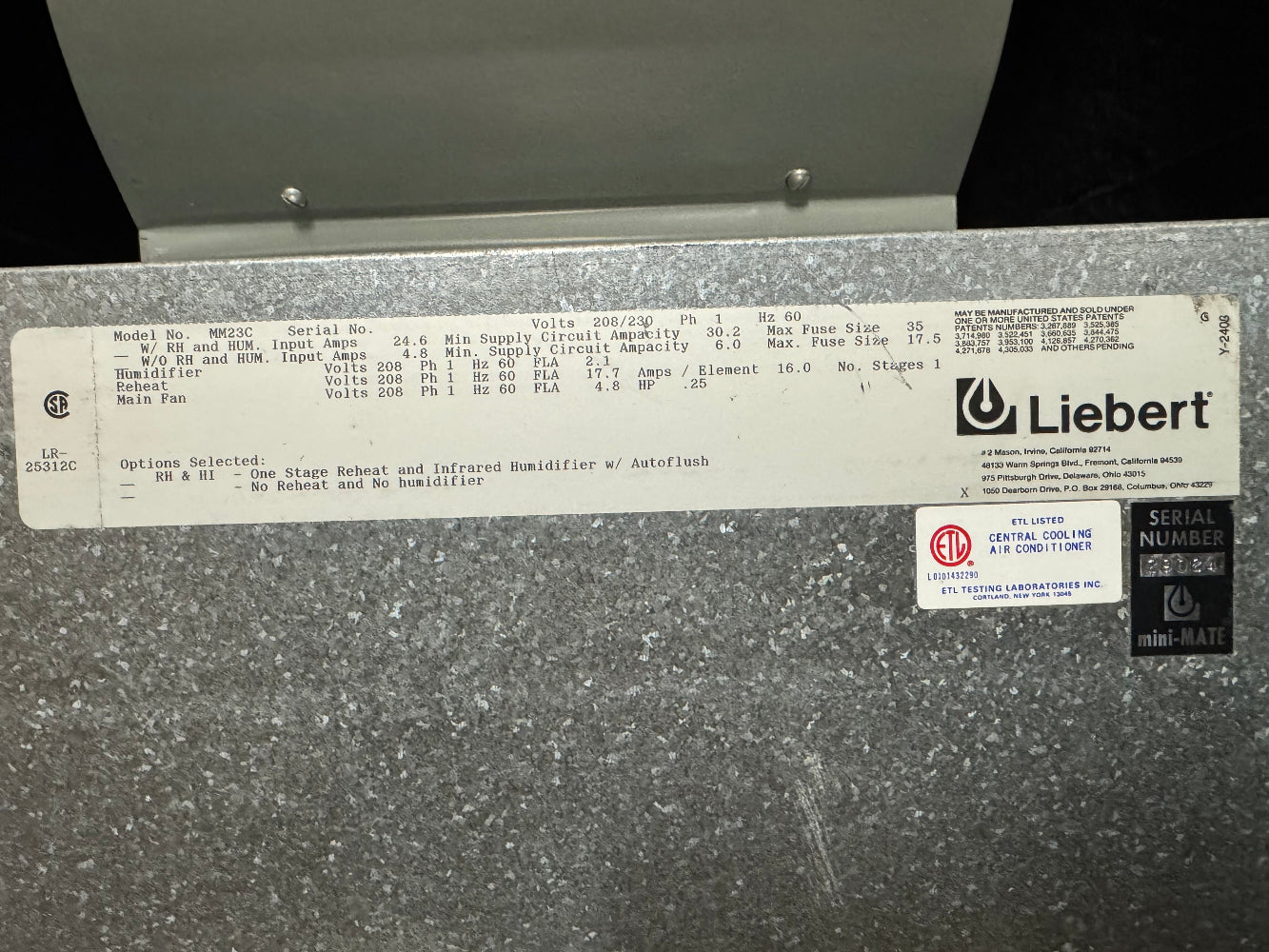

Electrical Specifications

• Voltage: Operates at 208/230 volts, suitable for standard electrical systems.

• Phase: Single-phase system, ensuring easy integration into most power setups.

• Frequency: 60Hz, compatible with the standard power supply in the United States.

Ampacity and Fuse Requirements

• With Reheat and Humidifier:

  • Input Amps: 24.6 amps

  • Min Supply Circuit Ampacity: 30.2 amps

  • Max Fuse Size: 35 amps

• Without Reheat and Humidifier:

  • Input Amps: 4.8 amps

  • Min Supply Circuit Ampacity: 6.0 amps

  • Max Fuse Size: 17.5 amps

Humidifier Specifications

• Voltage: 208 volts

• Phase: Single-phase

• Frequency: 60Hz

• Full Load Amperage (FLA): 2.1 amps

Reheat Specifications

• Voltage: 208 volts

• Phase: Single-phase

• Frequency: 60Hz

• Full Load Amperage (FLA): 17.7 amps

• Amps per Element: 16.0 amps

• Number of Stages: 1

Main Fan Specifications

• Voltage: 208 volts

• Phase: Single-phase

• Frequency: 60Hz

• Full Load Amperage (FLA): 4.8 amps

• Horsepower (HP): 0.25 HP

Key Features

• Precise Cooling: Designed to provide accurate temperature control, essential for critical environments.

• Humidity Control: Integrated humidifier ensures optimal humidity levels, protecting sensitive equipment.

• Energy Efficiency: Optimized to reduce energy consumption, lowering operational costs.

• Compact Design: Ceiling-mounted unit saves floor space, making it ideal for areas with limited room.

• Reliability: Built with high-quality components to ensure long-term, dependable performance.

Applications

• Data Centers: Provides consistent and reliable cooling for server rooms and data centers.

• Telecommunication Rooms: Ideal for maintaining optimal conditions in telecom equipment rooms.

• Healthcare Facilities: Ensures precise environmental control for critical medical IT infrastructure.

• Financial Institutions: Keeps critical IT systems cool and operational in financial institutions.
