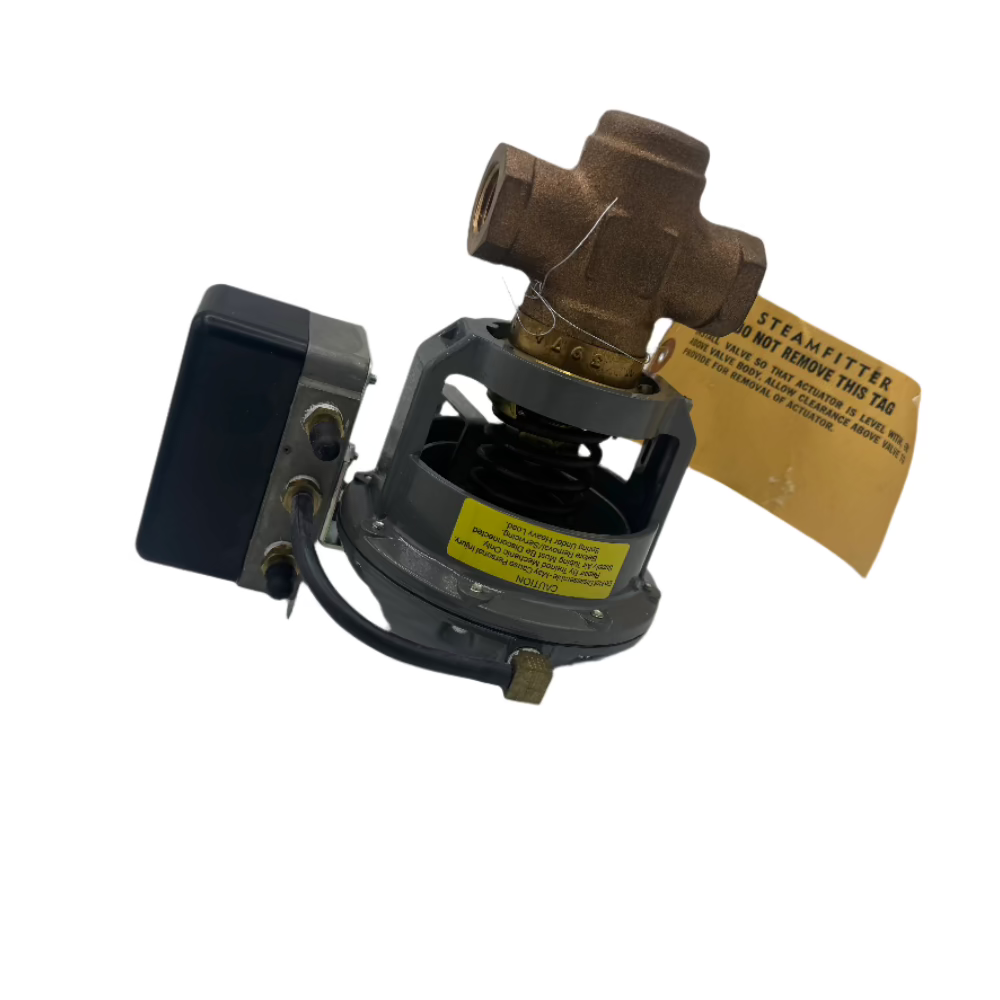

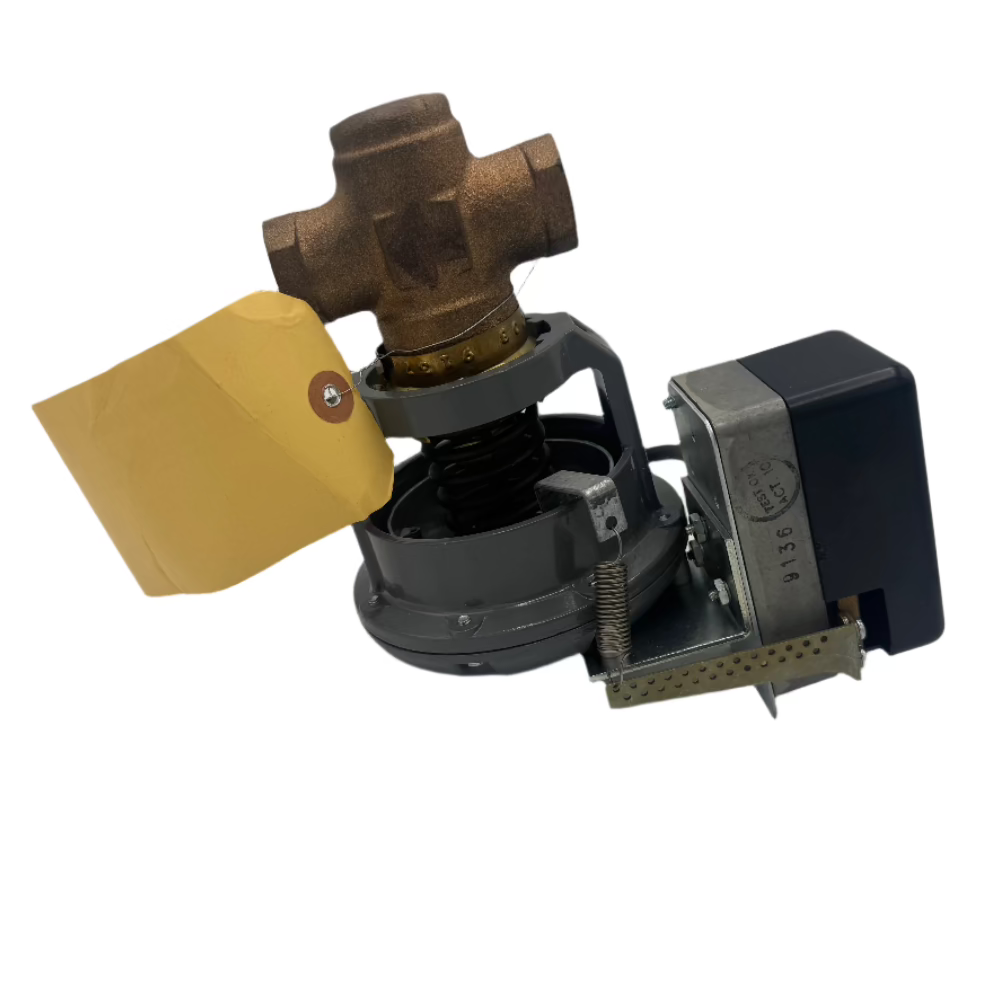

Johnson Controls V-3974 Valves 1/2 in & V-9502 Pneumatic Valve Actuator Positioner

V-3974 Cage Trim Cast6 Brass Valves

Product: V-3974 N.C. Steam or Water Valve

Body Style and Sizes: Globe, 1/2 Through 1-1/2 in. Threaded Ends (IPT)

Control Air connection: 1/8 in. NPT Barbed Fitting for 5/32 or 1/4 in O.D. Polytubing

Max Control Pressure: 30 PSIG (210kPa)

Spring Range (Nominal): 9 to 13 PSIG (63 to 91 kPa)

Valve Body Pressure/Temperature Rating: Exceeds Requirements of ANSI B16.15, Class 250

Max Allowable Pressure/Temperature:

Steam-35 PSIG (245 kPa) Saturated

Water-400 PSIG (2800 kPa) up to 150 F (66 C), Decreasing to 345 PSIG (2415 kPa ) at 281 F (140 C)

Ambient Temperature Limits : -10 to 150 F(-23 to 66 C)

Materials:

Trim Cage: Cast Brass including Integral Seat

Trim Steam: Stainless Steel

Trim Plug: Brass with Molded and Bonded Composition Disc

Body: Cast Brass with Natural Finish

Actuator: Die Cast Aluminum

Packing: Synthetic Elastomer U-Cups

Accessories (Order Separately):

V-9502-15 Valve Positioner Kit

V-9502-100 Valve Positioner Spring

V-3000-10 Valve Position Indicator

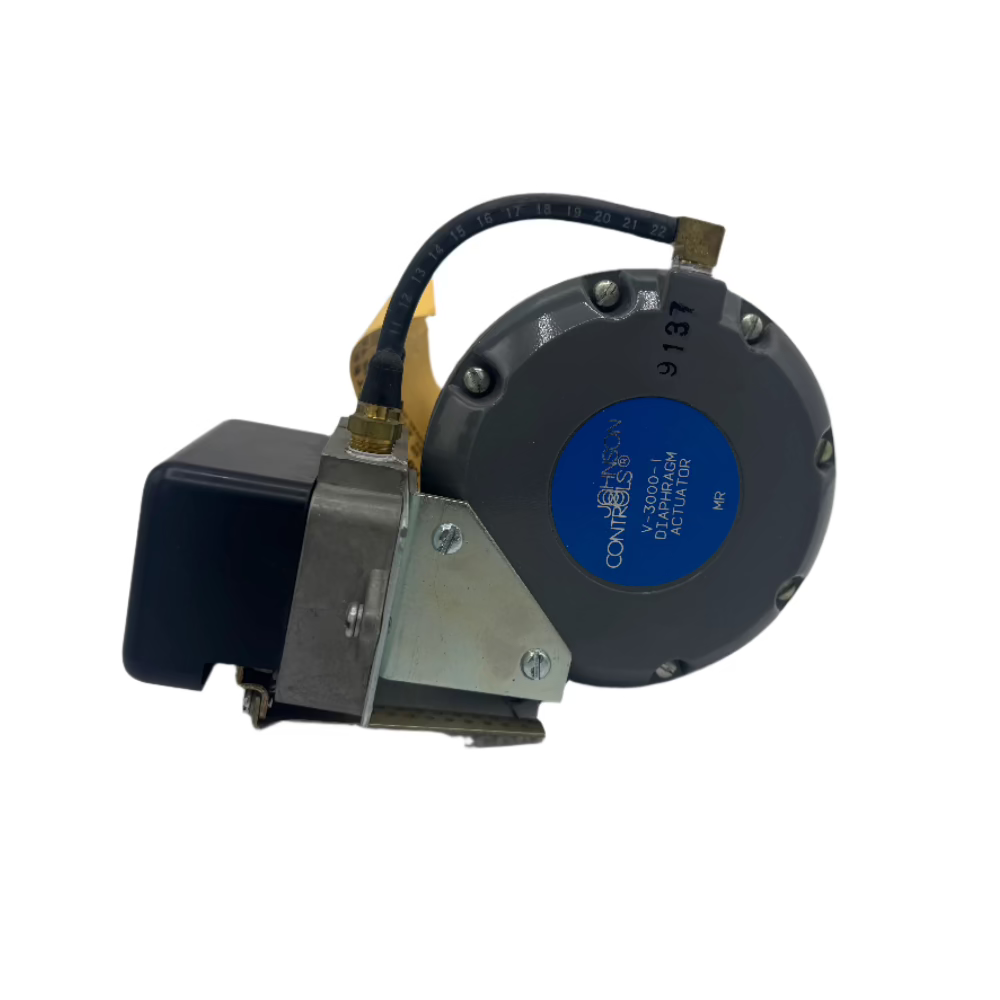

V-9502 Pneumatic Valve Actuator Positioner

Product: V-9502 Pneumatic Valve Actuator Positioner

Starting Point: Adjustable from 2 to 12 PSIG (14 to 84 kPa)

Operating Span: Adjustable from 3 to 13 PSIG (21 to 91 kPa) on 3R, 4R, 5R, 8R and Kieley & Mueller Valve Actuators ; Fixed on V-3000 Actuator

Maximum Supply Pressure: 25 PSIG (175 kPa), Air Supply Must be Clean, Dry and Oil Free

Air Consumption: 5 SCIM (1.4 mL/s)

Output Flow Capacity:  1000 SCIM (273 mL/s) with Dual barbed Fitting; 1600 SCIM (437 mL/s) with 1/4 in. Fitting

Air Connections: 1/8 in. NPT Dual Barbed Fittings for 5/32 or 1/4 in. O.D. Polytubing.

Ambient Operating Temperature Limits : -20 to 150 F(-29 to 66 C)

Materials Body: Die Cast Aluminum with Iridite Finish

Materials Cover: Noryl

Materials Diaphragm: Fabric Reinforced Rubber

Mounting Directly to Actuator using Bracket Furnished

Shipping Weight: 2.0 lb (0.91 kg)
