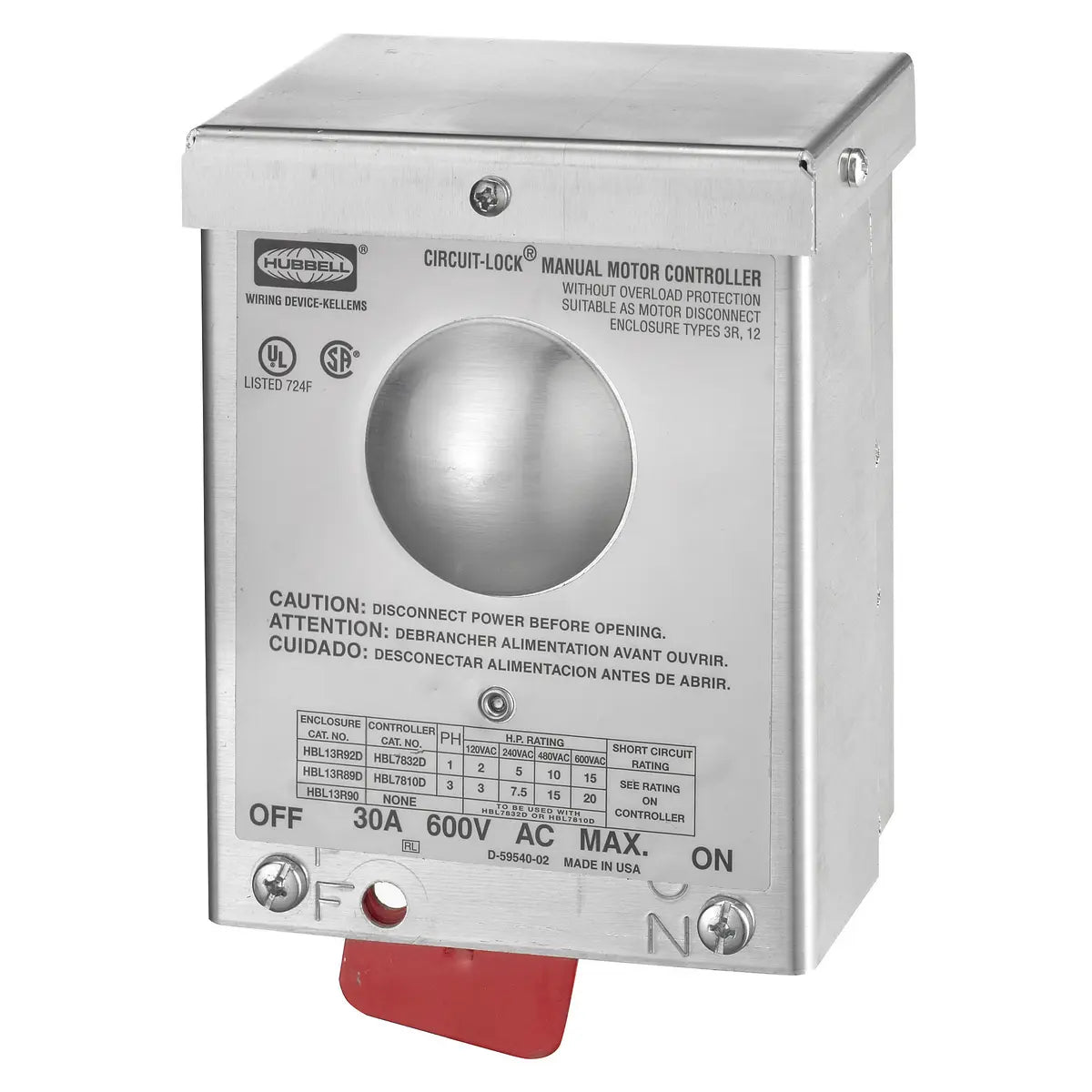

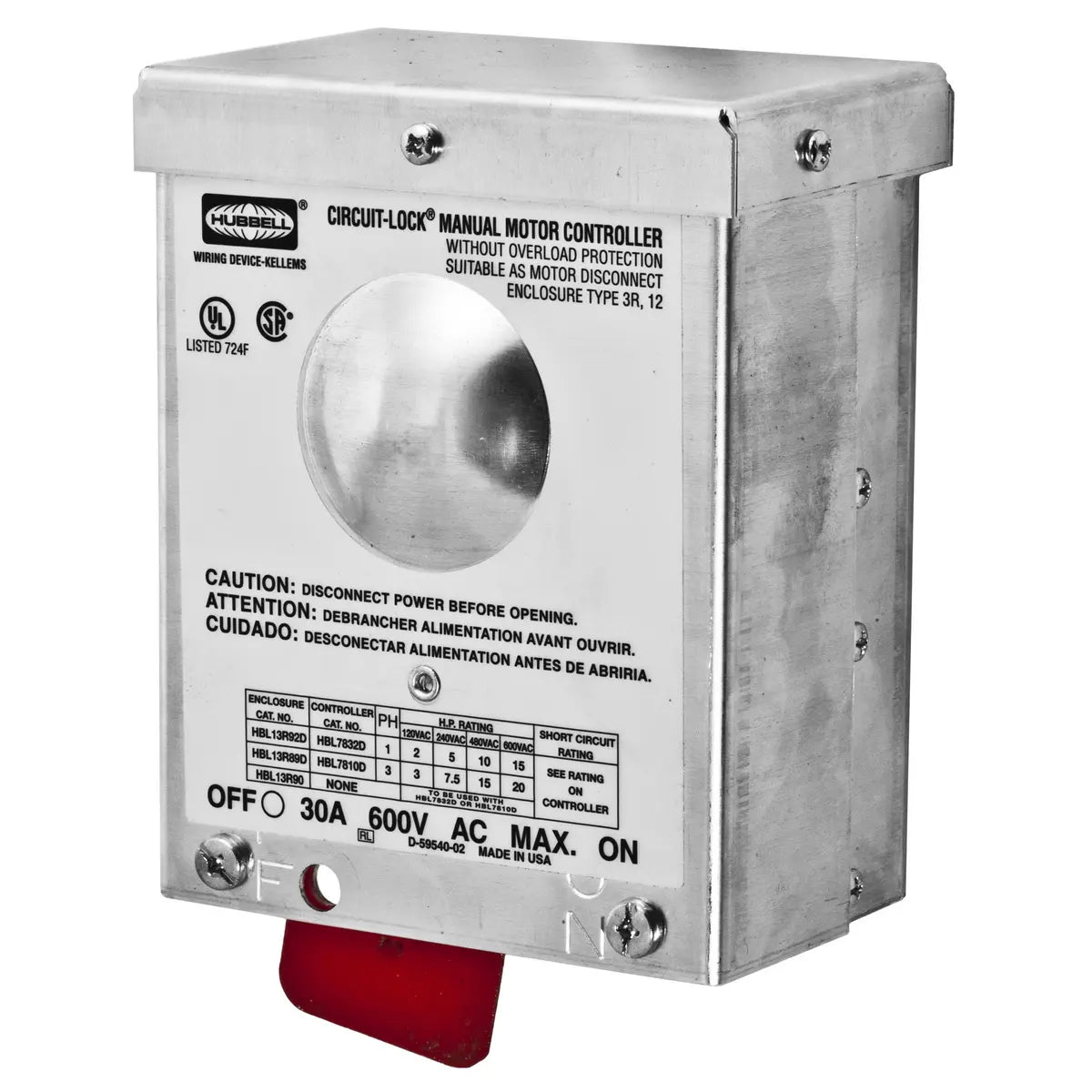

Hubbell HBL13R89 Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC

Hubbell HBL13R89 Disconnect Switch — Key Specs

• Type: Non‑fused disconnect switch
• Amperage: 30 A
• Voltage: Up to 600V AC
• Horsepower: Up to 20 HP
• Load Type: Inductive
• Enclosure: Aluminum, NEMA 3R (indoor/outdoor)
• Operating Temp: −40°C to 75°C
• Mechanical Life: ≥10,000 cycles
• Electrical Life: ≥6,000 cycles at rated load
• Wire Size: Up to #10 AWG copper (solid or stranded)
• Certifications: UL 508, CSA C22.2 No.14
• Dimensions: 5.52" × 4.4" × 3.3"
• Weight: 1.55 lb

Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch
