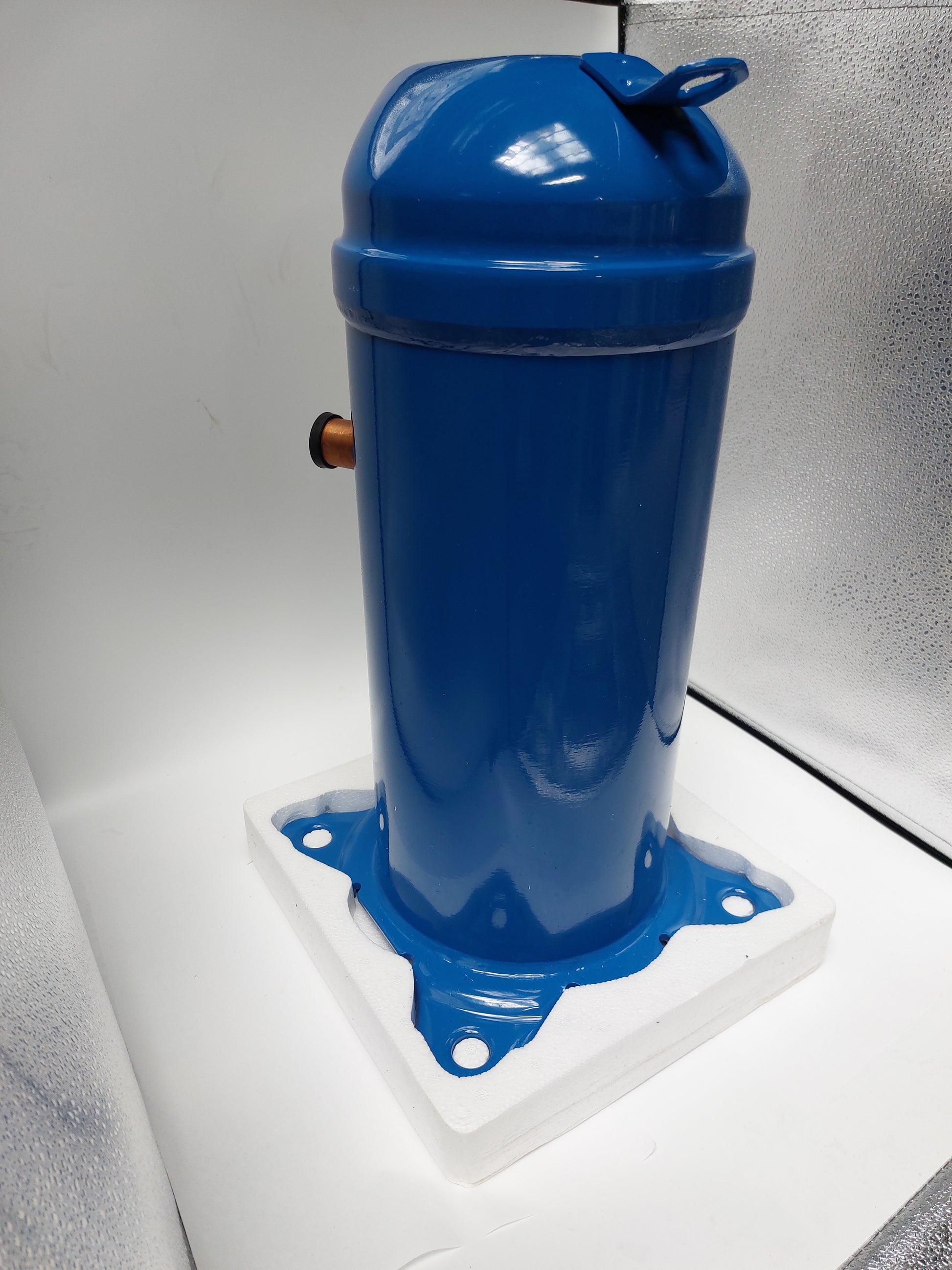

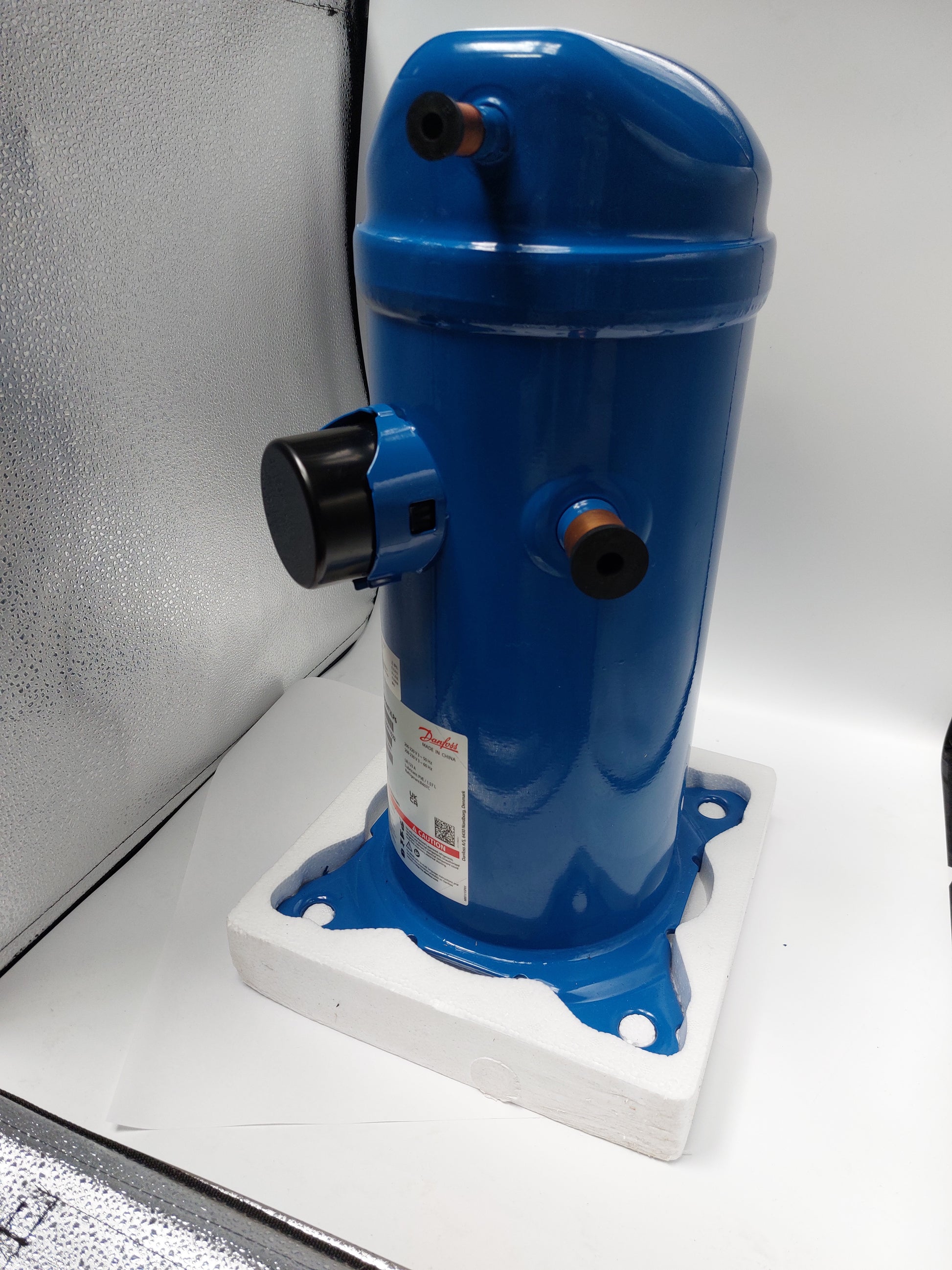

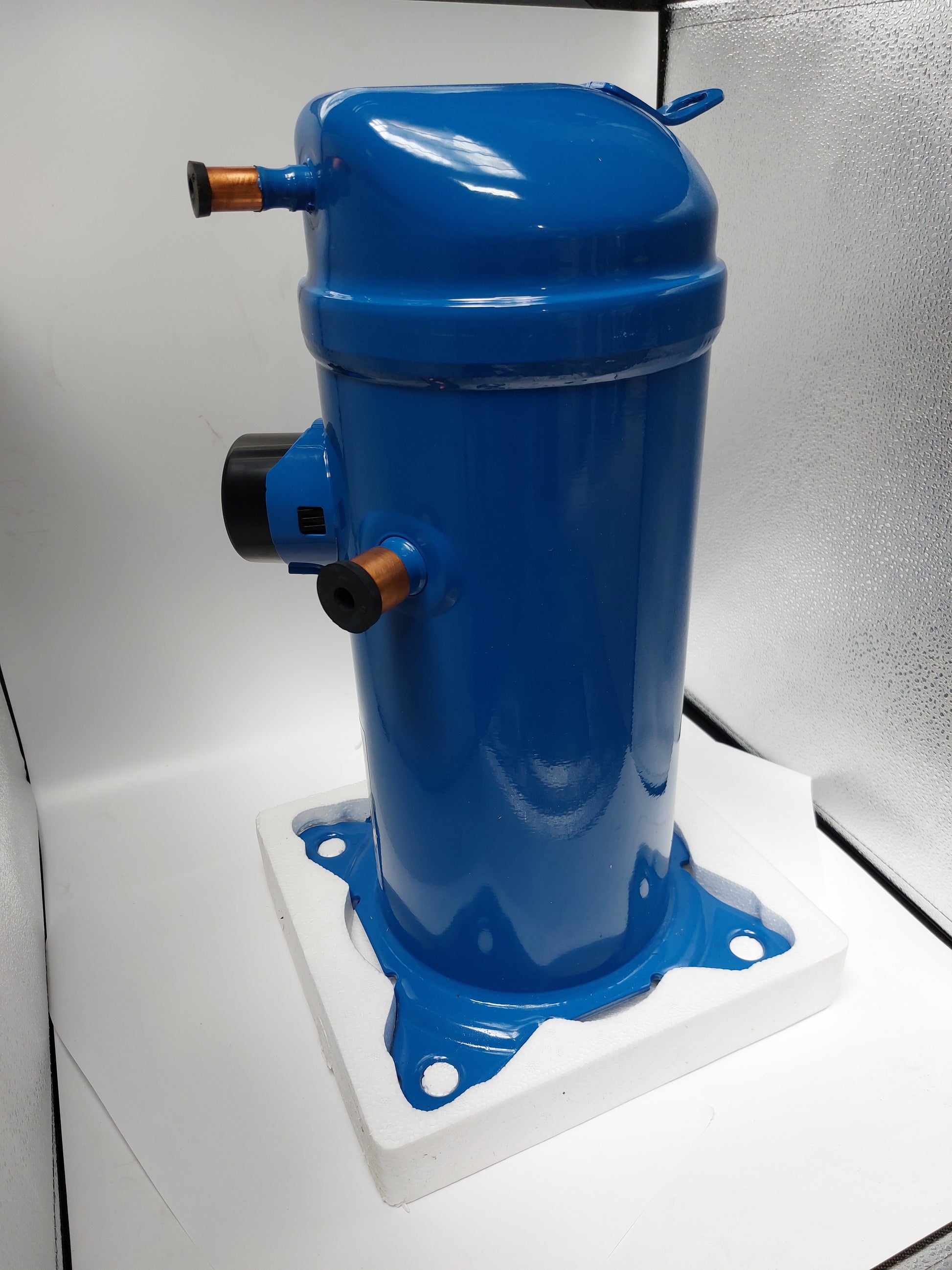

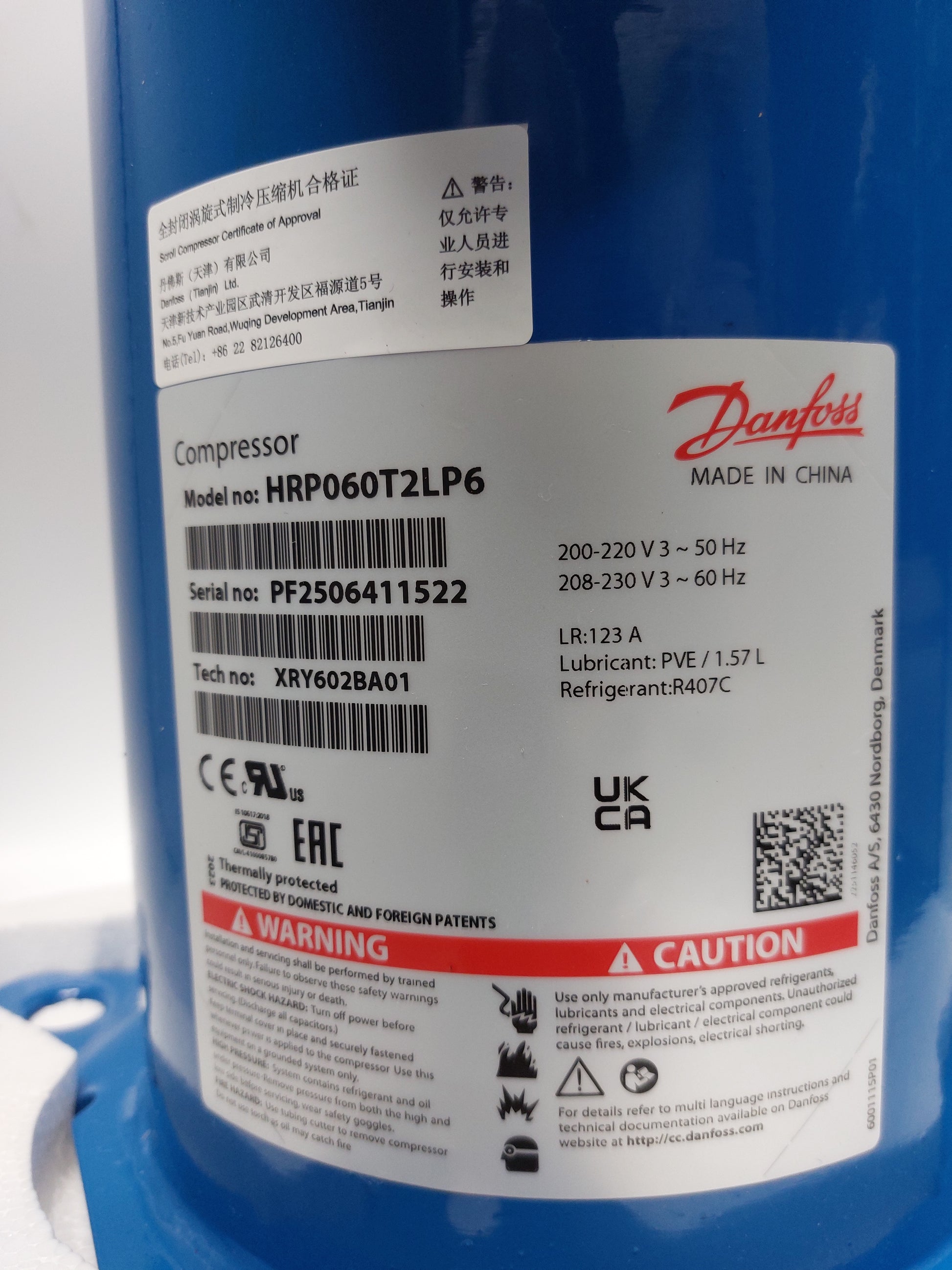

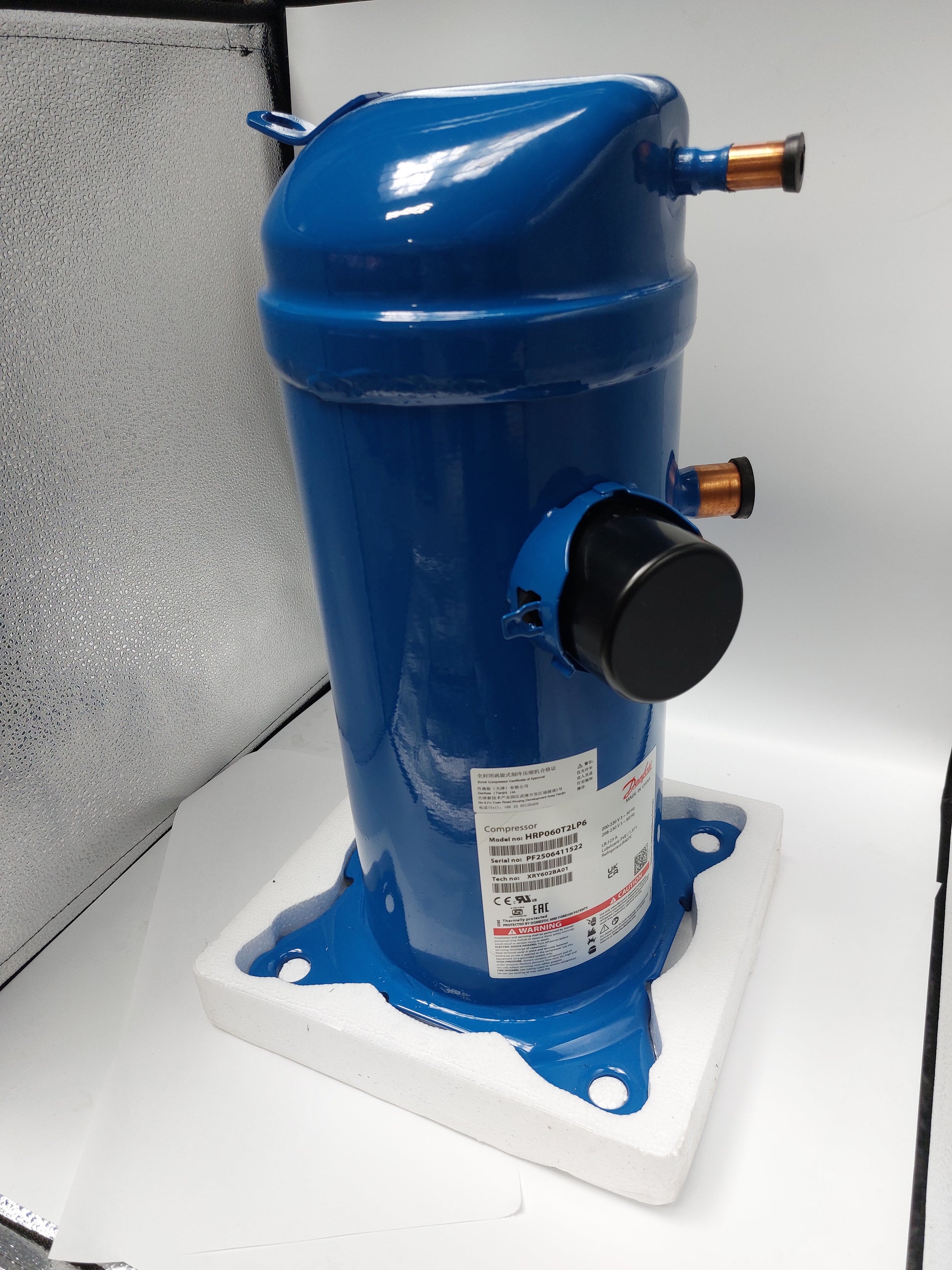

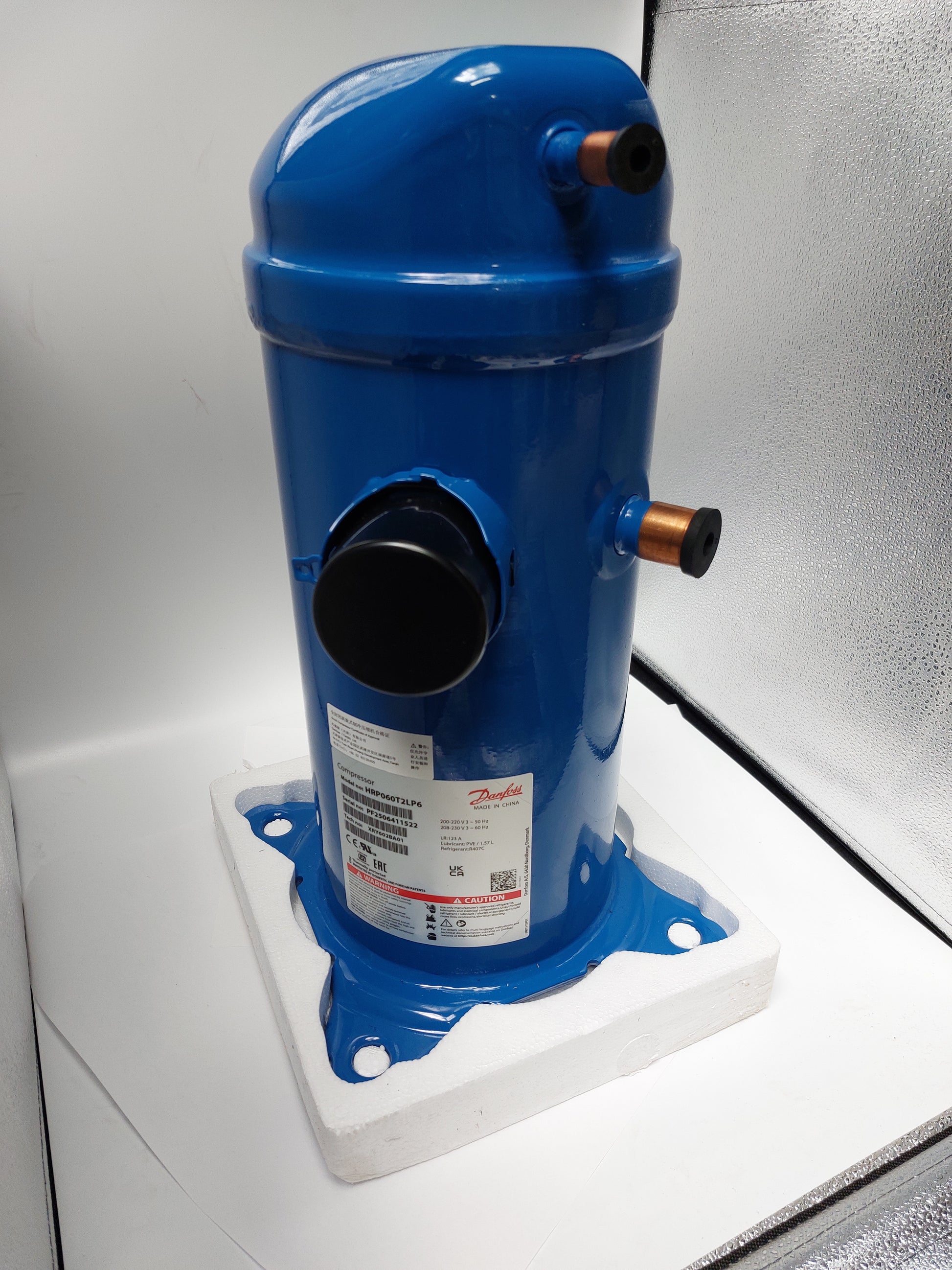

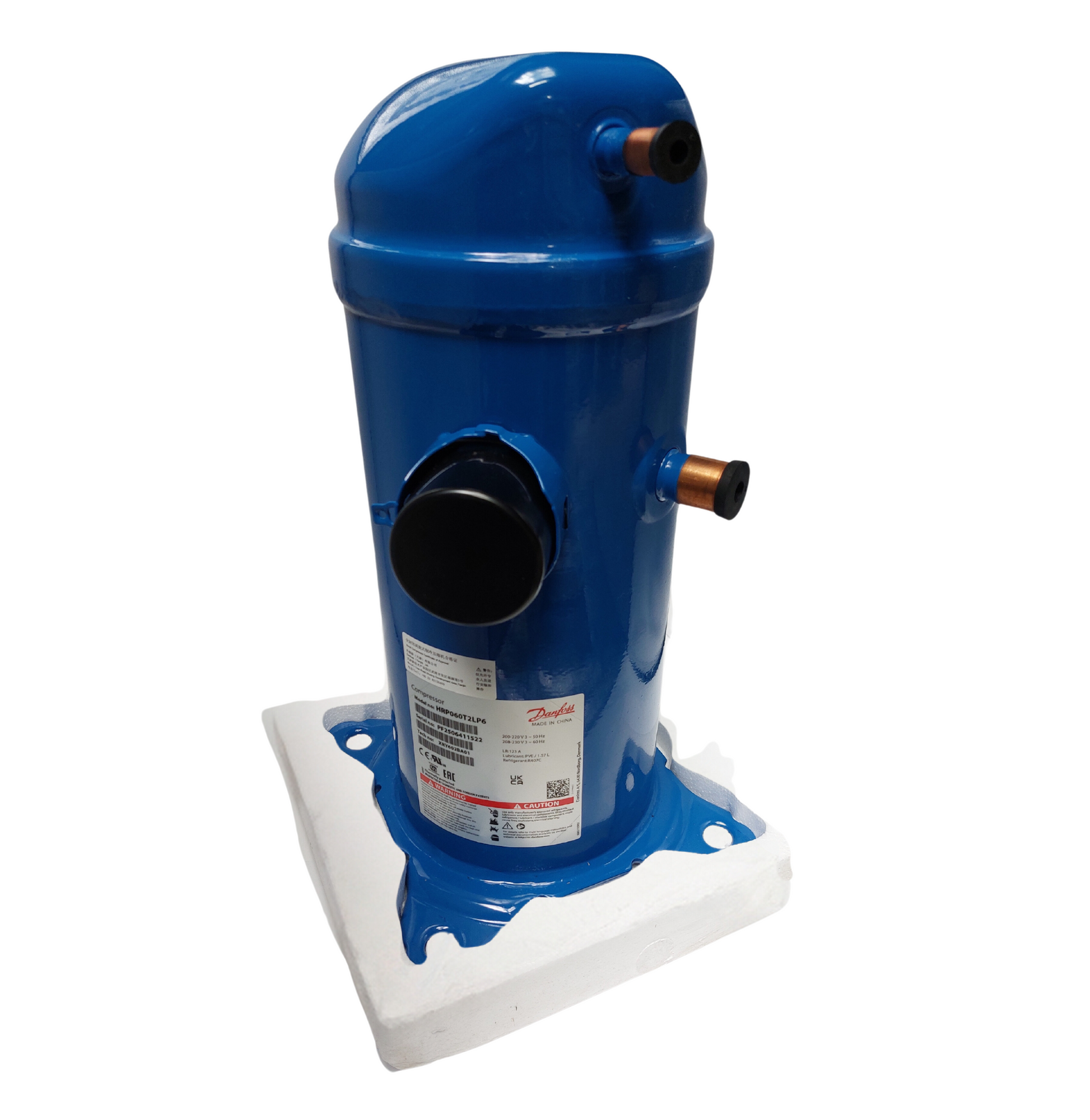

Danfoss HRP060T2LP6 Scroll Compressor

Product Details:

• Weight:
  • Net: 81.57 lbs
  • Gross: 91.49 lbs
• Size:
  • Width: 9.4 inches
  • Length: 9.4 inches
  • Total Height: 17.9 inches
• Refrigerant: R407C
• Voltage:
  • 200-220V/3/50Hz
  • 208-230V/3/60Hz
• Compressor Type: Scroll
• Capacity Control: Fixed speed
• Color: Blue
• Approval: CE, UL, UKCA
• RoHS Compliance: EU RoHS with exemptions
• Oil Charge: 1.57 liters
• Oil Type: PVE
• Phase: 3
• Power Connections: Spade
• Frequency: 50/60 Hz
• Pressure:
  • Max PS (High side): 450.3 psi
  • Max PS (Low side): 379.7 psi
• Motor Protection: Internal overload protector

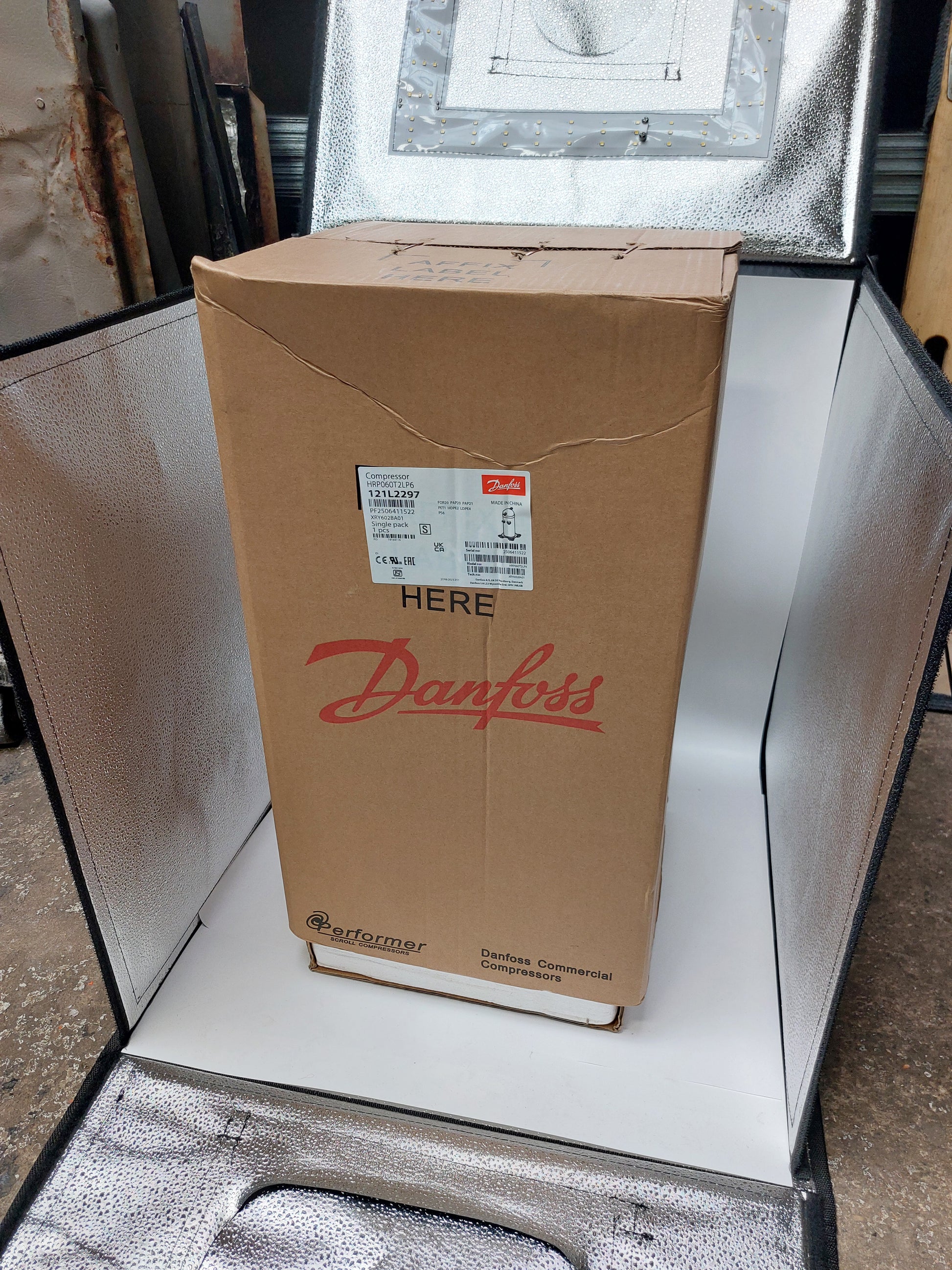

• Packing: Single pack

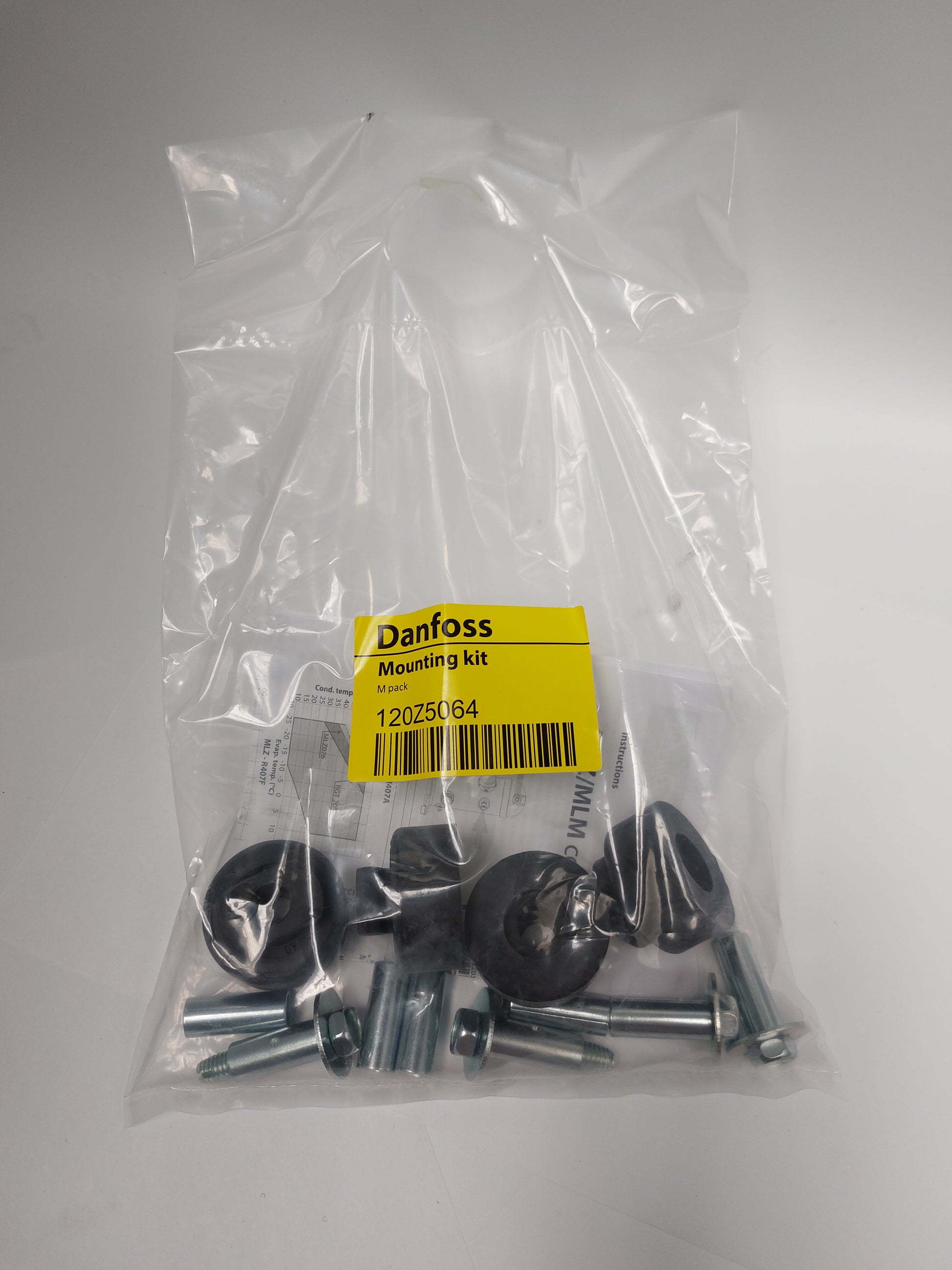

• Accessories:
  • Installation instructions
• Usage: Air conditioning
• Winding Resistance:
  • 1-2: 0.6 Ohm
  • 1-3: 0.59 Ohm
  • 2-3: 0.59 Ohm
