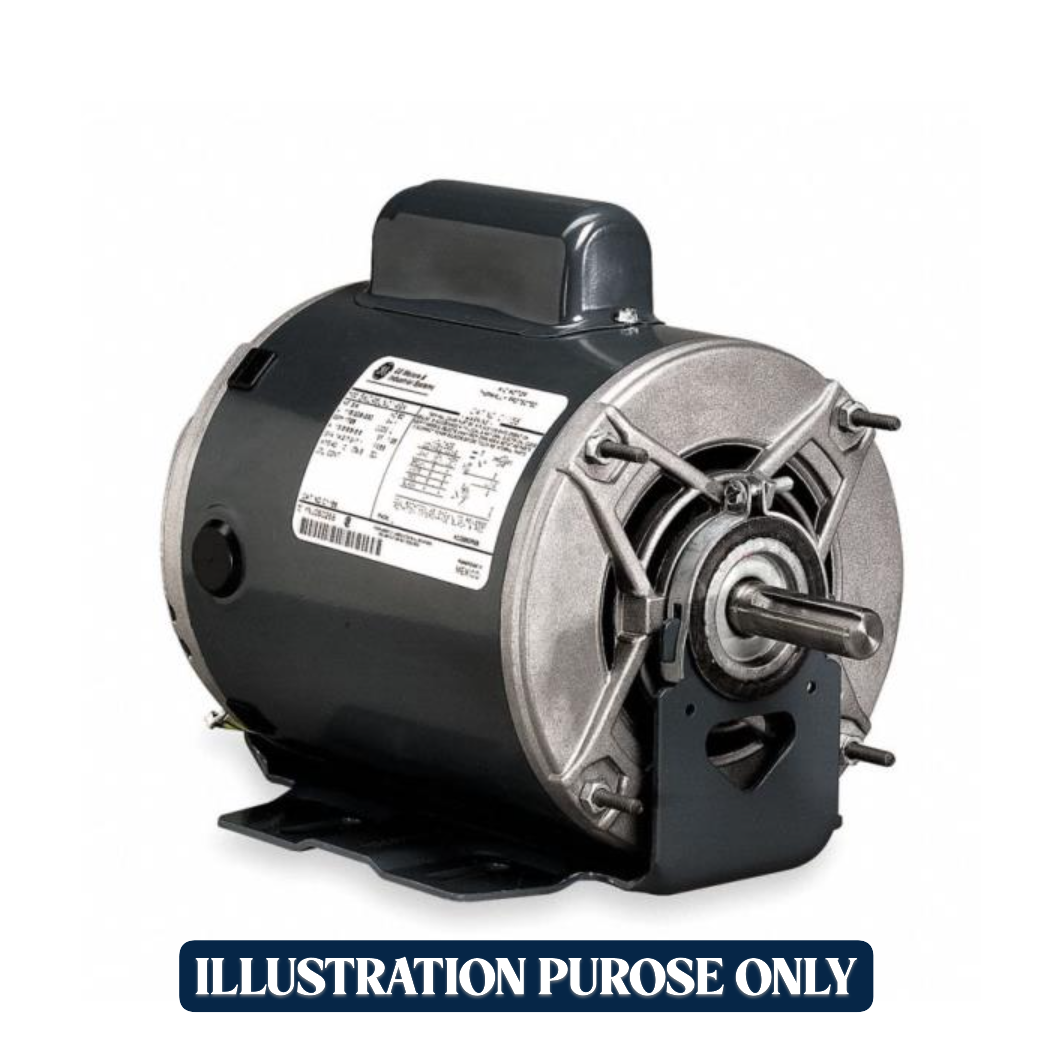

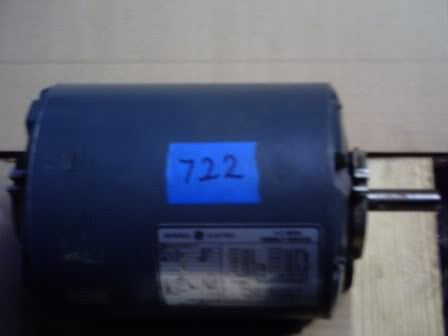

General Electric 5K45PG954X 1.5 HP, 3 PH, 208/230v Motor

GE HVAC Motor 5K45PG954X is a General Electric industrial-grade AC motor designed for HVAC applications. It is a 1.5-horsepower, 3-phase, 208/230V, 60Hz motor with a 56H frame, operating at 1725 RPM. It features a 2-inch x 0.5-inch shaft, a service factor of 1.15, and is rated for ambient temperatures up to 40°C.

🔧 Key Specifications

• Model Number: 5K45PG954X
• Manufacturer: General Electric (GE)
• Application: HVAC systems (fans, blowers, pumps)
• Horsepower (HP): 1.5 HP
• Voltage: 208/230V
• Phase: 3-phase
• Frequency: 60 Hz
• Frame Size: 56H (standard mounting dimensions for HVAC motors)
• Speed: 1725 RPM (synchronous speed for HVAC blower applications)
• Shaft Dimensions: 2-inch length × 0.5-inch diameter
• Full Load Amps (FLA): 5.0/2.5 A
• Service Factor (SF): 1.15 (allows slight overload capacity)
• SFA (Service Factor Amps): 5.6 / 2.8
• Ambient Temperature Rating: 40°C
• Condition: New

⚙️ What These Specs Mean

• Horsepower (1.5 HP): Suitable for medium-duty HVAC systems, such as air handlers or large blowers.
• Voltage & Phase (208/230V, 3-phase): Designed for commercial/industrial electrical systems, ensuring efficiency and reliability.
• Frame (56H): Standardized frame size makes it easier to replace or mount in existing HVAC equipment.
• RPM (1725): A common motor speed for HVAC blowers, balancing airflow and efficiency.
• Service Factor (1.15): Provides extra capacity beyond rated horsepower, useful for handling short overloads.
• Ambient Rating (40°C): Ensures safe operation in typical HVAC environments.
