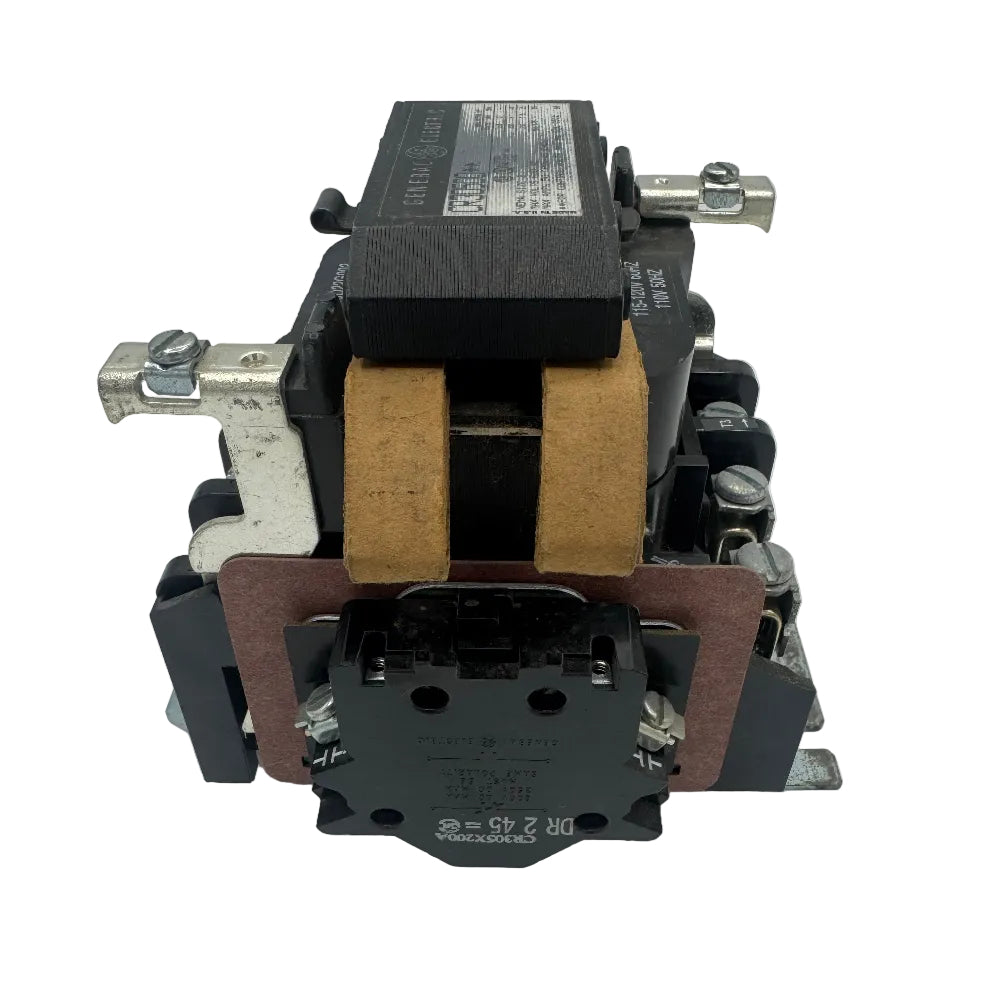

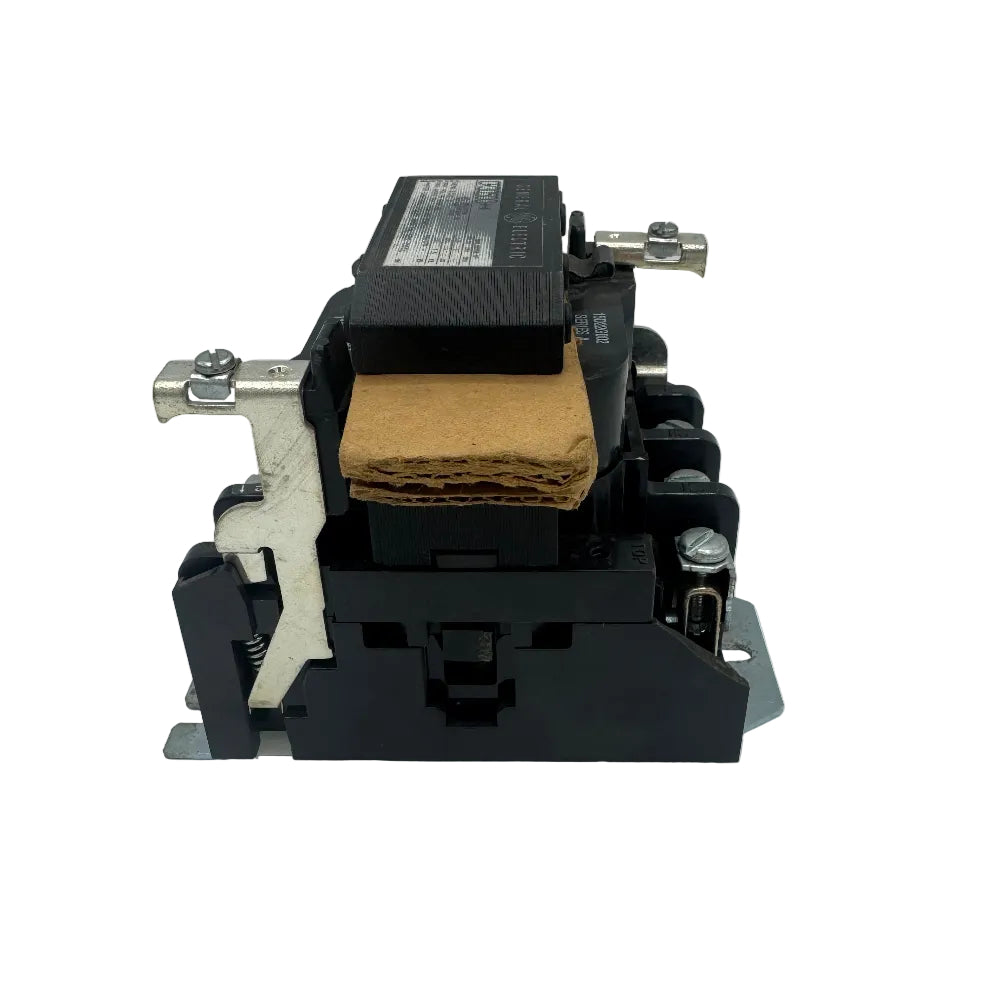

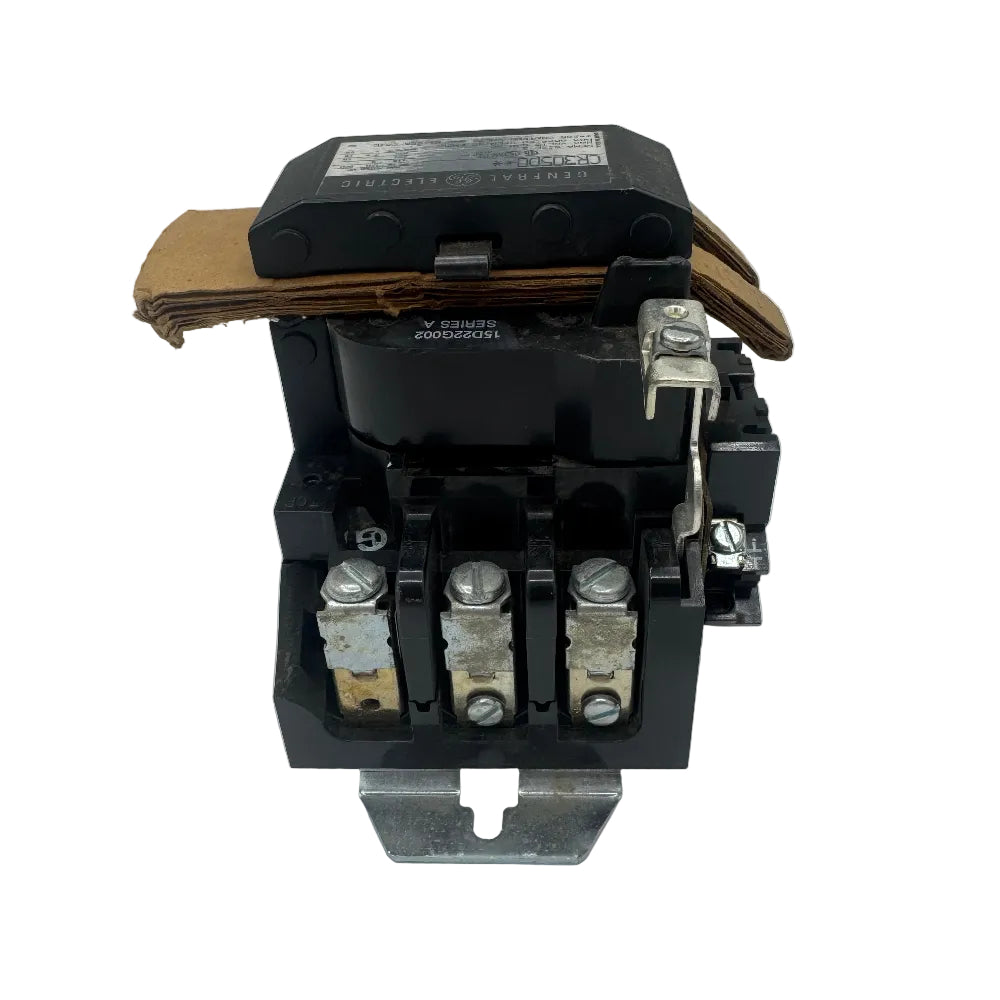

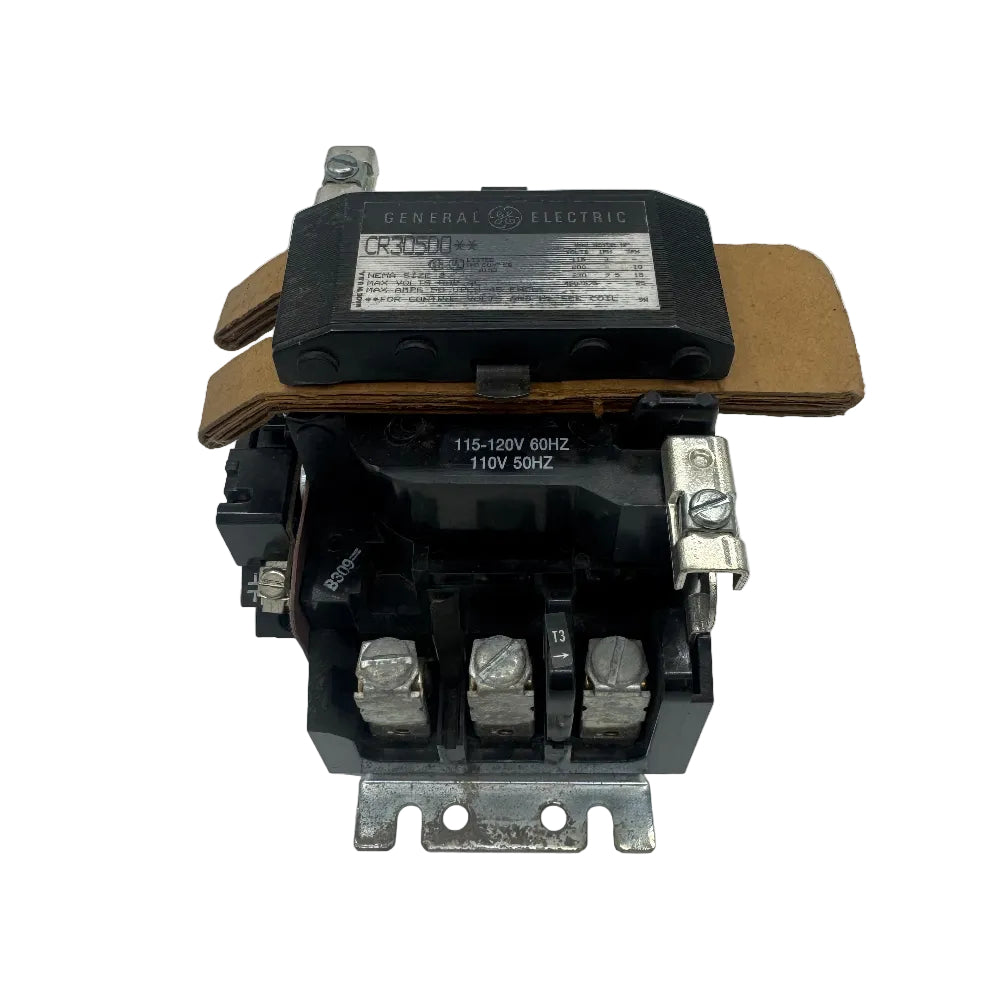

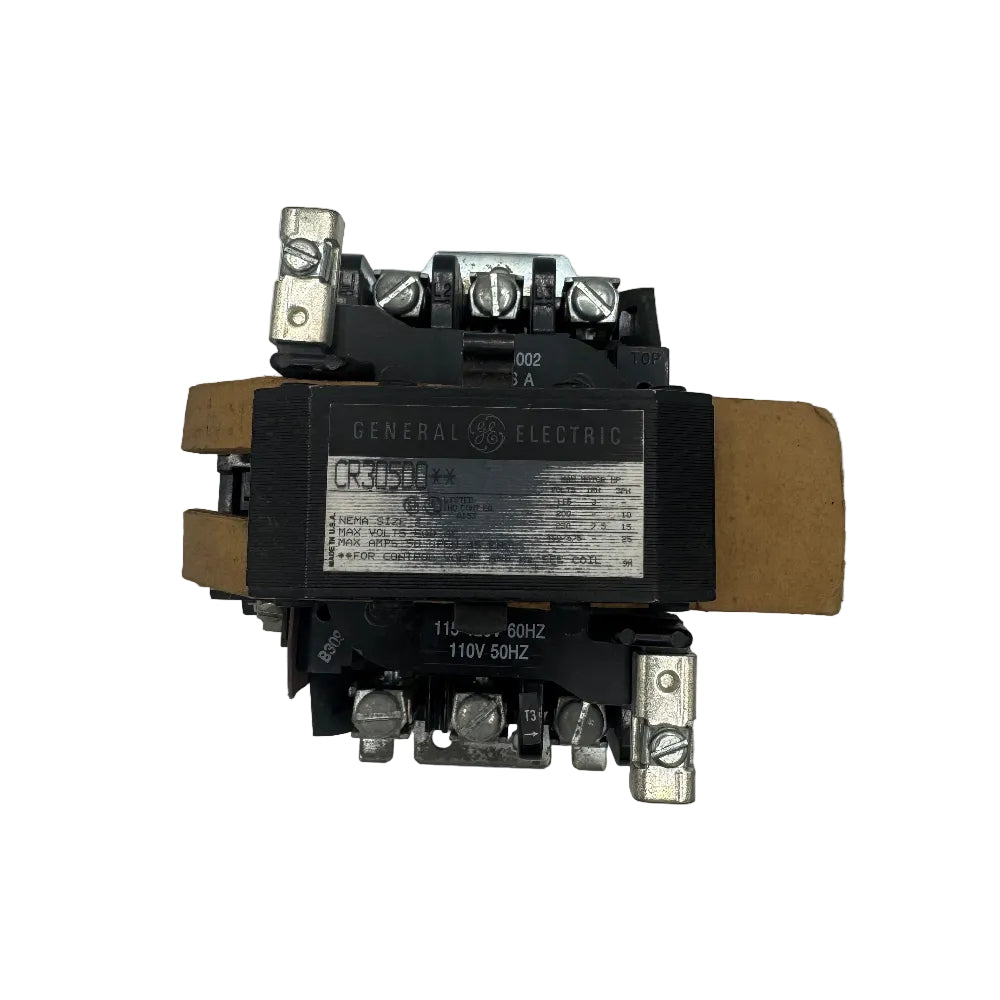

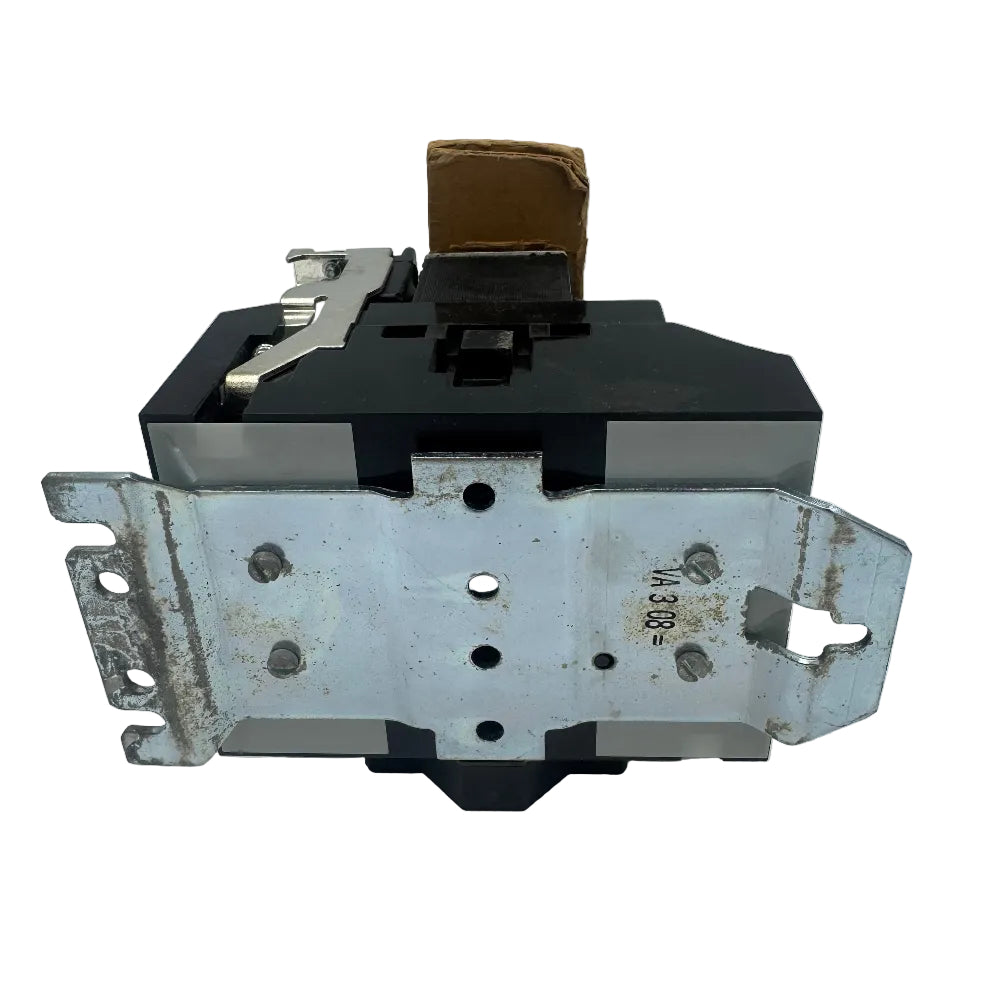

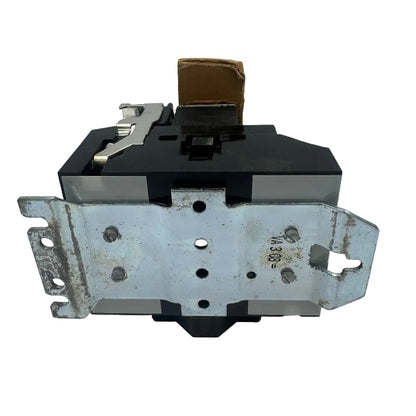

General Electric (GE) CR305D0** Magnetic Motor Contactor

CR305D0** is a General Electric (GE) NEMA Size 2 magnetic contactor, part of the GE 300‑series motor control line. The “**” at the end represents variable suffixes that specify coil voltage or auxiliary contact configurations.

It is used for starting and controlling motors in industrial electrical systems.

🔧 Key Technical Details

From the search results:

• Manufacturer: General Electric
• Type: Magnetic motor contactor, non‑reversing
• NEMA Size: 2
• Poles: 3‑pole contactor
• Voltage Rating: Up to 600 VAC max
• Current Rating:
• 50 A open, 45 A enclosed (varies slightly by model)
• Motor HP Ratings:
• Up to 25 HP at 575V three‑phase
• Coil Voltage: Typically 115–120 VAC, depending on suffix (e.g., CR305D002)
