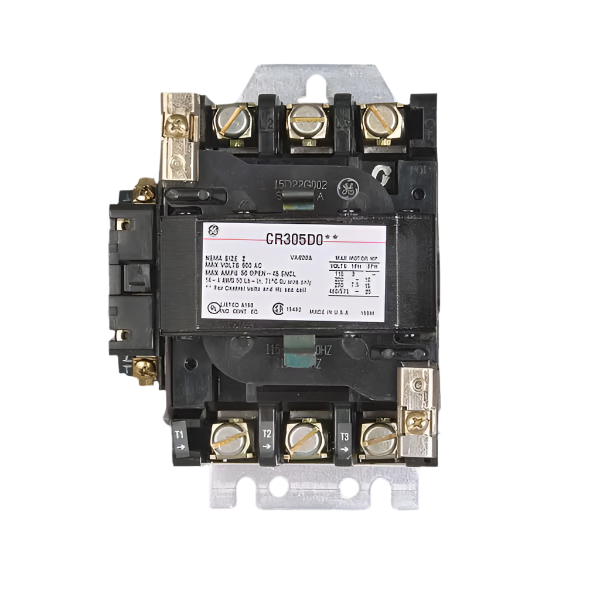

General Electric CR305D0 120VAC Non-Reversing Magnetic Contactor

GE CR305D0 NEMA Size 2 Magnetic Contactor—a non-reversing, three-pole device designed for 120V AC coil voltage with a full load current of 45A. Given its 600V AC max voltage rating, it's capable of handling a range of single-phase and three-phase motors, including up to 25 hp at 480V or 600V three-phase.

Key features:

• Mounting details: 6" height, 5.44" width, with 0.25" mounting hole diameter.
• Auxiliary contacts included: 1NO configuration for additional control functions.
• Industry standards: UL listed, cULus certified, and WEEE B2C/B2B compliance.
• No enclosure: Requires appropriate housing for environmental protection.
