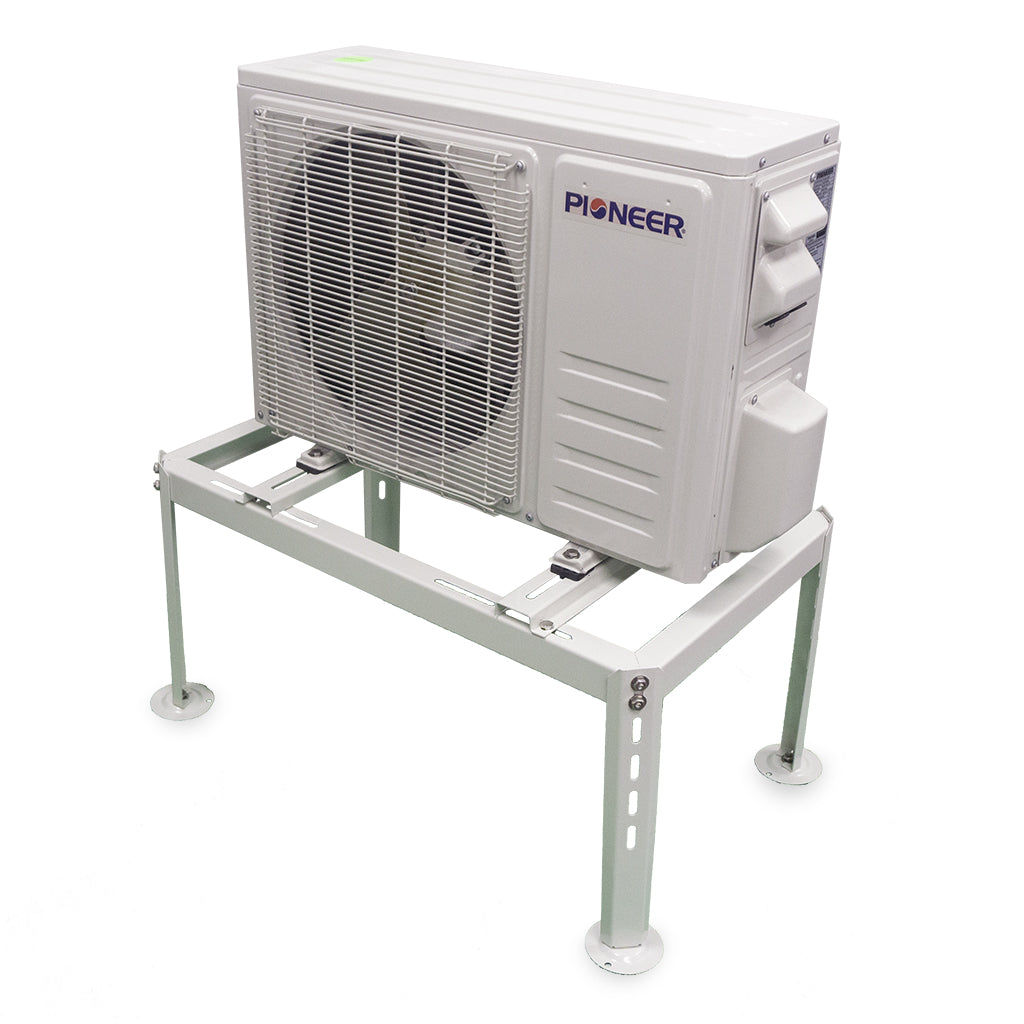

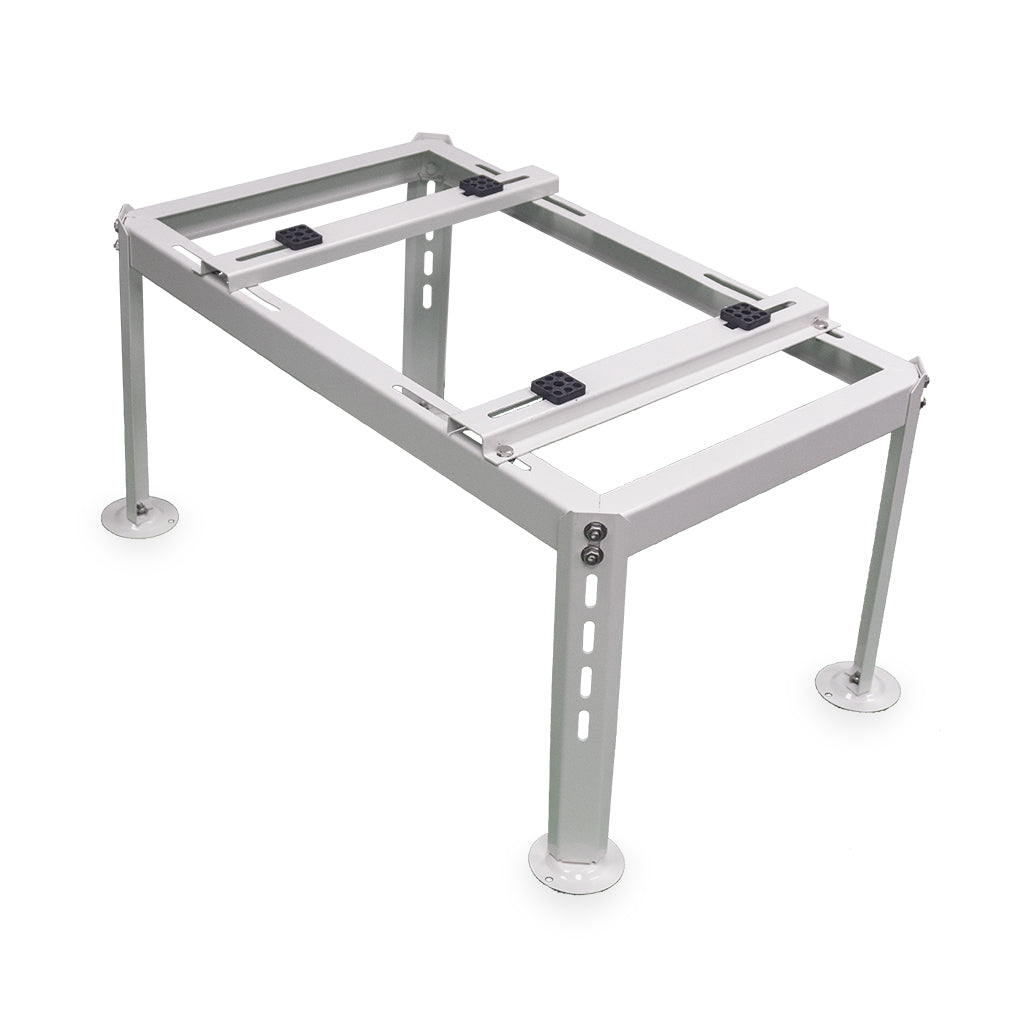

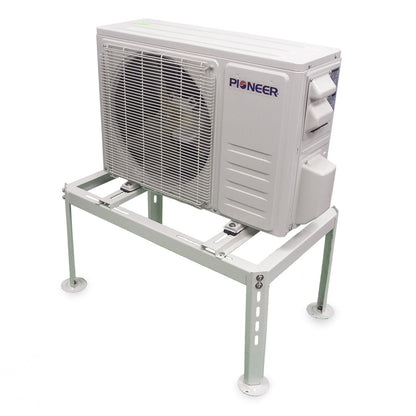

Floor Stand Bracket for Mini Split Condenser Units

Description

Protect your Pioneer Mini Split investment from snow build-up, flooding, debris, and other treacherous perils with this heavy-duty floor mountable condenser bracket. For situations where wall-mounting is not desirable or feasible, this universal bracket offers a flexible alternative to elevate your system up to 18 inches higher above ground and out of harm's way.

Summary

• Highly Weather/Snow Proof, White Powder-Coated Surface
• 5 Different Adjustable Height Levels w/ Independent Slots

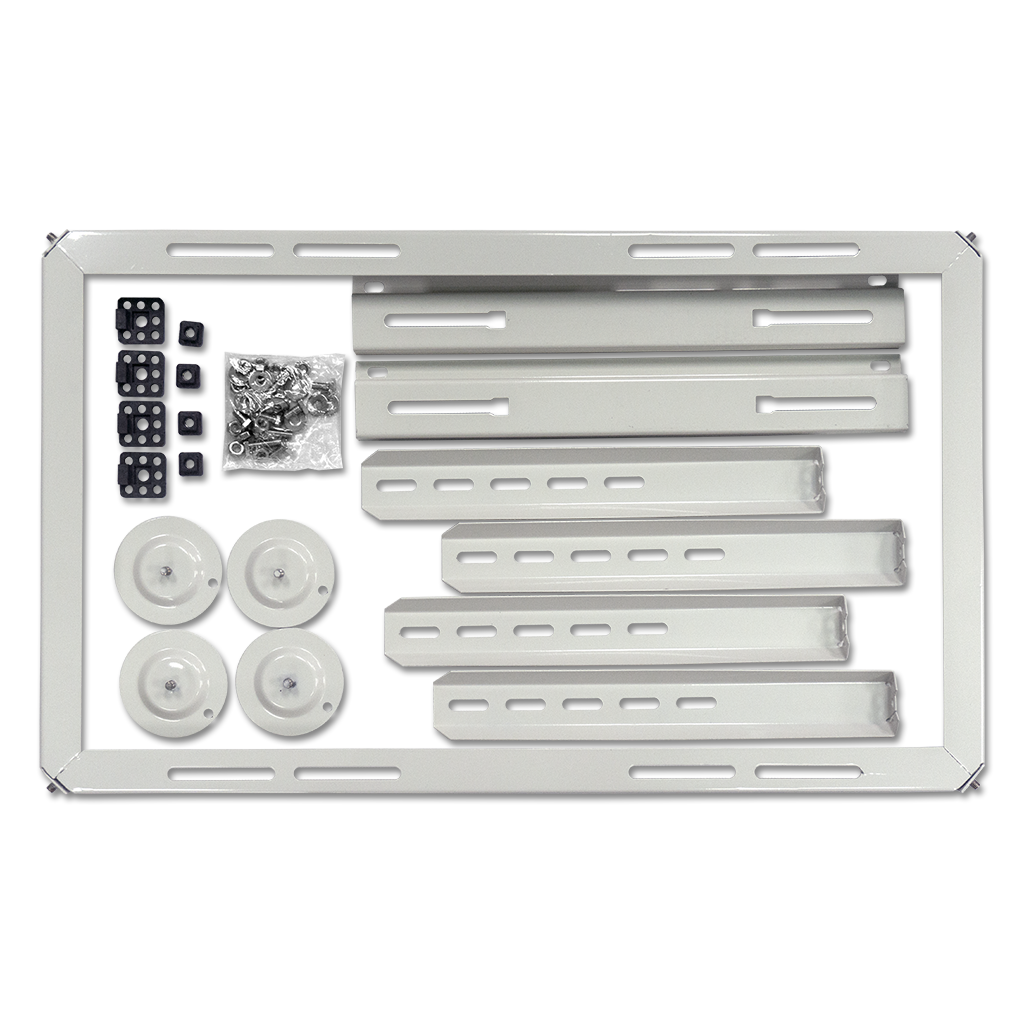

• Includes Rubber Vibration Absorbers for Condenser Unit
• Slotted Plate-Shaped Feet for Mounting to Pad or Slab

Specifications

• Hot galvanized bracket set, 2.2mm thickness
• Stainless Steel SS201 standard hardware
• Loading weight: 350 lbs (2P), 450 lbs (3P)
• 14 mm Wrench Required for Assembly
• Assembled Dimensions (WDH):
• 2P: 31"-1/2 x 18"-7/8 x 15"-3/4
• Compatible with mounting feet up to 27"-1/2 wide
• 3P: 31"-1/2 x 23"-5/8 x 15"-3/4
• Compatible with mounting feet up to 29" wide
