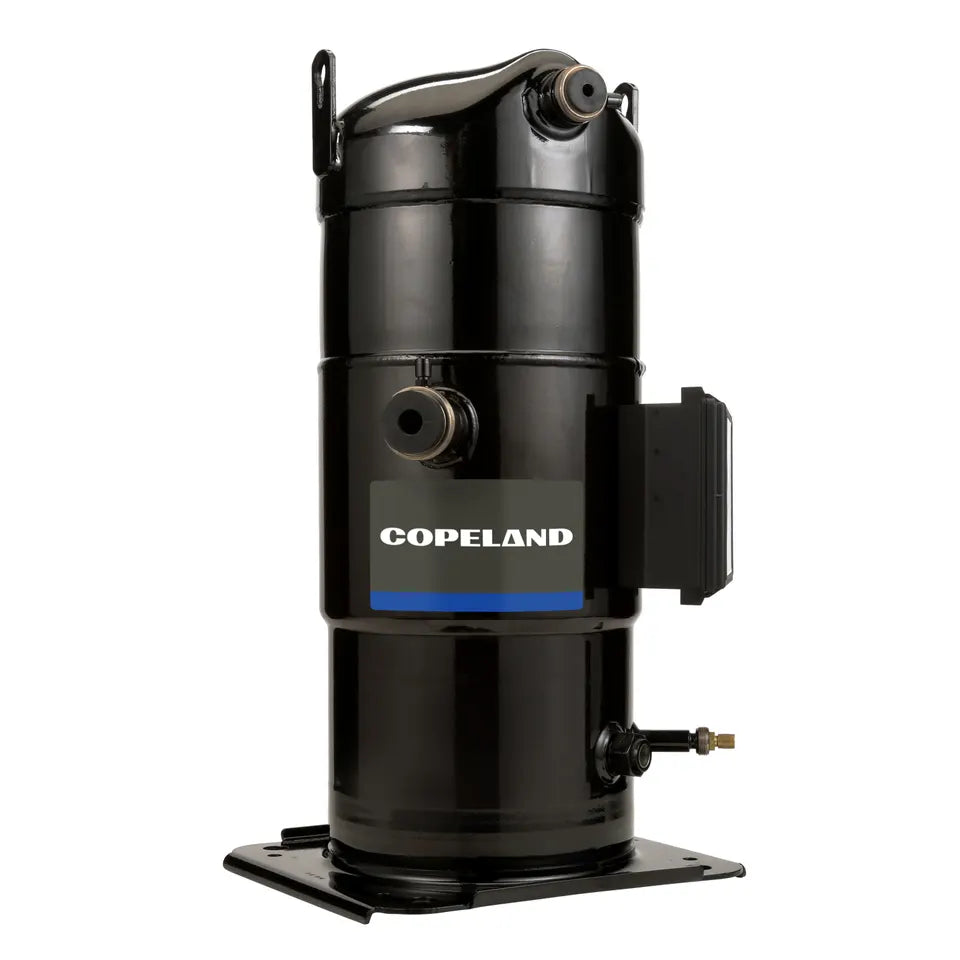

Copeland ZR48K5E-TF5-130 4 Ton Scroll Compressor
Copeland ZR48K5E-TF5-130 4 Ton Scroll Compressor
Regular price
$1,699.00
Regular price
Sale price
$1,699.00
Unit price
/
per
Shipping calculated at checkout.
👀
[COUNT] People are currently viewing this product.
Couldn't load pickup availability
The ZR48K5E-TF5-130 is a Copeland Scroll compressor.
- Type: Scroll Compressor
- Application: Air Conditioning
- Refrigerant: R-22, R-407C
- Capacity: 48,200 BTU/hr
- Voltage: 200-230V
- Phase: 3
- Frequency: 60 Hz
- Displacement: 3.87 cu-in/rev
- Suction Line Size: 7/8" Stub
- Discharge Line Size: 1/2" Stub
- Oil Type: Polyolester (POE)
- Initial Oil Charge: 42 oz
- Oil Recharge: 34 oz
- Rated Load Amps (RLA): 17.1 A
- Maximum Continuous Current: 24.0 A
- Locked Rotor Amps (LRA): 114.0 A
- EER: 11.6 - 22 Btu/Wh
- Sound Power: 73-78 dBA
- Weight: 69.1 lbs
- Dimensions:
- Length: 9.69 inches
- Width: 9.69 inches
- Height: 16.94 inches
