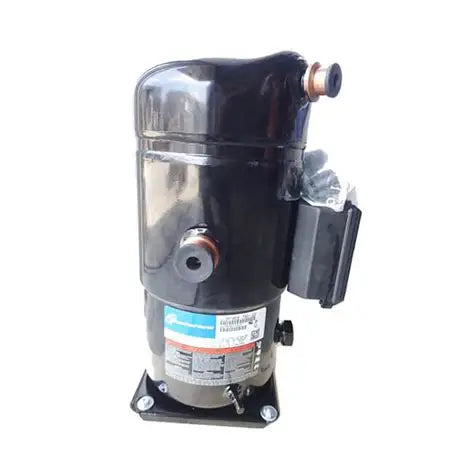

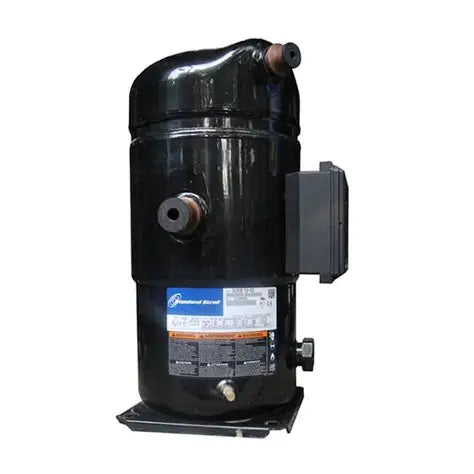

Copeland ZR19M3‑TWD‑570 Hermetic Scroll Compressor

The Copeland ZR19M3‑TWD‑570 is a high‑capacity commercial scroll compressor engineered for demanding HVAC applications. Built for reliability and long service life, this 15.8 HP compressor delivers 190,000 BTU/h of cooling performance, making it ideal for large air‑conditioning systems, rooftop units, and commercial heat‑pump installations.

Designed for R22 systems and compatible with certain R407C service replacements, the ZR19M3‑TWD‑570 provides smooth, efficient operation thanks to Copeland’s proven scroll technology. Its robust 3‑phase motor supports multiple voltage ranges, offering flexibility for a wide range of commercial installations.

With a durable hermetic construction, low sound output, and high energy efficiency (COP 3.34 / EER 11.4), this compressor is a dependable choice for technicians, contractors, and facility managers seeking a powerful replacement unit or a reliable component for new system builds.

Perfect for commercial A/C, industrial cooling, large split systems, and heat‑pump applications, the ZR19M3‑TWD‑570 delivers the performance and durability Copeland is known for.

Official Name Copeland ZR19M3‑TWD‑570 Hermetic Scroll Compressor

Series ZR Series (High‑Capacity Commercial A/C Scroll Compressors)

Capacity 55,500 W (190,000 BTU/h)

Refrigerant R22 HCFC (Compatible with some R407C service replacements)

Voltage Options 460V / 200–230V / 380V — 3‑Phase, 60 Hz

Nominal Motor Power 15.8 HP

Displacement 249.2 cc per revolution

Input Power 16,800 W

Current Draw 26.5 A (typical) LRA: 173–187 A depending on voltage

Coefficient of Performance (COP) 3.34

Energy Efficiency Ratio (EER) 11.4 Btu/Wh

Oil Charge 3.25–4.1 L (POE)

Net Weight 66–66.2 kg (145–146 lbs)

Sound Level 72 dBA @ 1 meter
