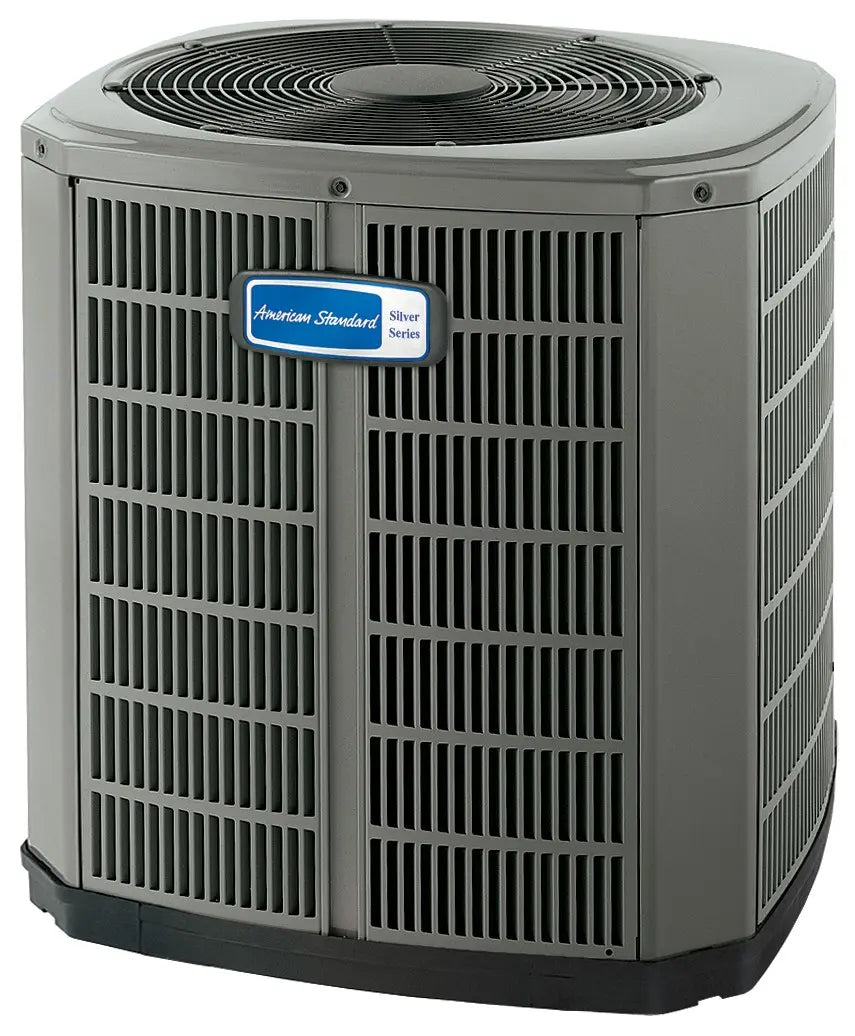

American Standard By Trane 4A7A3042N1000A 3.5 Ton Split System AC Condenser

American Standard 4A7A3042N1000A is a 3.5-ton split system air conditioner from the Silver 13 series

⚙️ Core Specifications

• Cooling Capacity: 40,000–50,000 BTU/hr
• Tonnage: 3.5 tons
• SEER Rating: Up to 13.8 SEER2
• Refrigerant: R-410A (Factory charge: 5 lbs., 5 oz)
• Voltage: 208/230V, Single Phase, 60 Hz

🔌 Electrical Details

• Minimum Circuit Ampacity: 22 amps
• Maximum Overcurrent Protection: 35 amps
• Compressor Type: Duration™ Scroll
• Stages: Single-stage
• RLA / LRA: 16.7 / 109 amps
• Fan Motor: 1/5 HP, 835 RPM, draws 1.05 amps

🌬️ Airflow & Coil

• Outdoor Fan: 23" propeller, direct drive
• Airflow: 4170 CFM at 0.0" static pressure
• Outdoor Coil: Spine Fin™

• Rows / FPI: 1 row / 24 fins per inch
• Face Area: 19.07 sq. ft.
• Tube Size: 3/8"

📏 Dimensions & Weight

• Unit Dimensions (H × W × D): 34.4" × 35.1" × 38.7"
• Shipping Weight: 216 lbs
• Net Weight: 184 lbs

🔉 Sound & Installation

• Sound Power Level: 71 dB(A)
• Subcooling Target: 10°F
• Liquid Line Size: 3/8"
• Gas Line Size: 7/8"
• Clearance Requirements: At least 12" from walls, 5 ft vertical clearance above unit

This unit is known for its reliable durability, environmental friendliness, and value efficiency.
